4.4 Connecting SeaTalk or NMEA compasses
You can connect SeaTalk or NMEA compasses to the course
computer, either to replace the fluxgate compass or provide
supplementary compass signals.
When you connect more than one compass to the autopilot system,
the course computer processes their signals in this order of priority:
1. Fluxgate compass
2. NMEA compass
3. SeaTalk compass
This means that if you want to use a NMEA compass as the primary
compass, you need to disconnect the fluxgate compass.
To connect a SeaTalk or NMEA compass to the autopilot system:
• NMEA compass: connect it to one set of NMEA inputs on the
course computer
• SeaTalk compass: connect it to the SeaTalk bus or the course
computer SeaTalk terminals

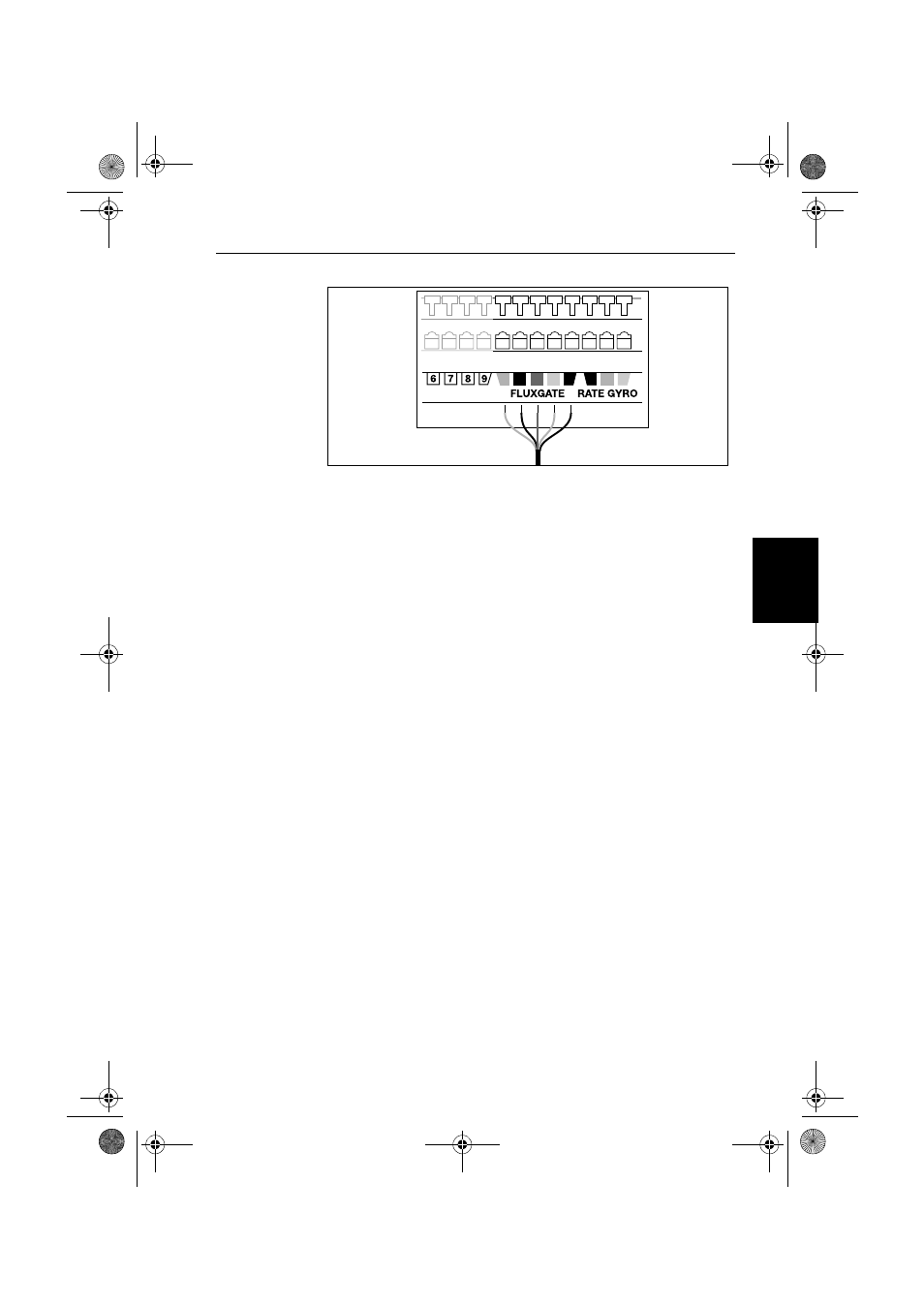

D5385-1
Screen Blue
Red Yellow
Green
Course
computer
terminals
Compass cable
