4.4 Inserting MCU into Adapter

As shown in Figure 4.3, insert the MCU into the IC socket, with the pin No. 1 of the MCU matched
to the pin No. 1 of the IC socket on the adapter.

Be careful when inserting the MCU because incorrect insertion can cause fatal
damage to the MCU.

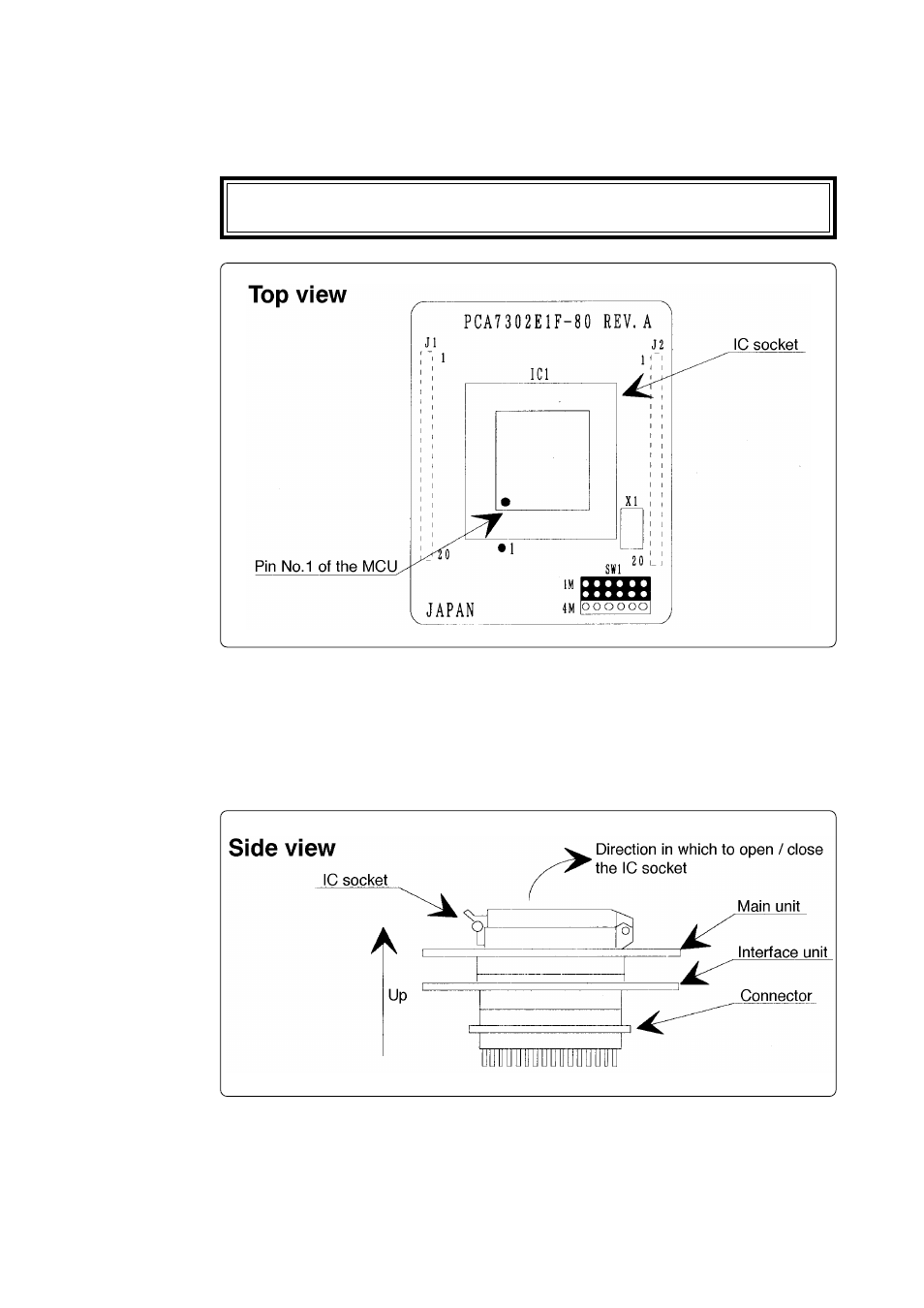

Figure 4.3 Inserting the MCU

4.5 Precautions When Opening and Closing IC Socket

When opening and closing the IC socket to insert the MCU, hold the adapter horizontally. Otherwise
the inside of the IC socket may become damaged and cause an electrical insulation failure. Figure 4.4
shows opening and closing of the IC socket.

Figure 4.4 Opening and closing the IC socket
