(3/4)

5. Connection Procedure (See Figure 3)


The procedure for connecting the M3T-FLX-80NSD is shown
below.

(1) Mount the NQPACK080SD-ND on the target system.

(2) Attach the YQPACK080SD on the NQPACK080SD-ND.

(3) Secure the four corners of the YQPACK080SD with the

YQ-GUIDE's.

Do not use the screws included with the

YQPACK080SD for fixing the YQPACK080SD.

The screwdriver included with the

NQPACK080SD-ND is used for fixing the

HQPACK080SD. Do not use if for fixing the

YQ-GUIDE's.

(4) Attach the M3T-FLX-80NSD on the YQPACK080SD.

(5)

Connect the probe tip of the emulator and the

M3T-FLX-80NSD.

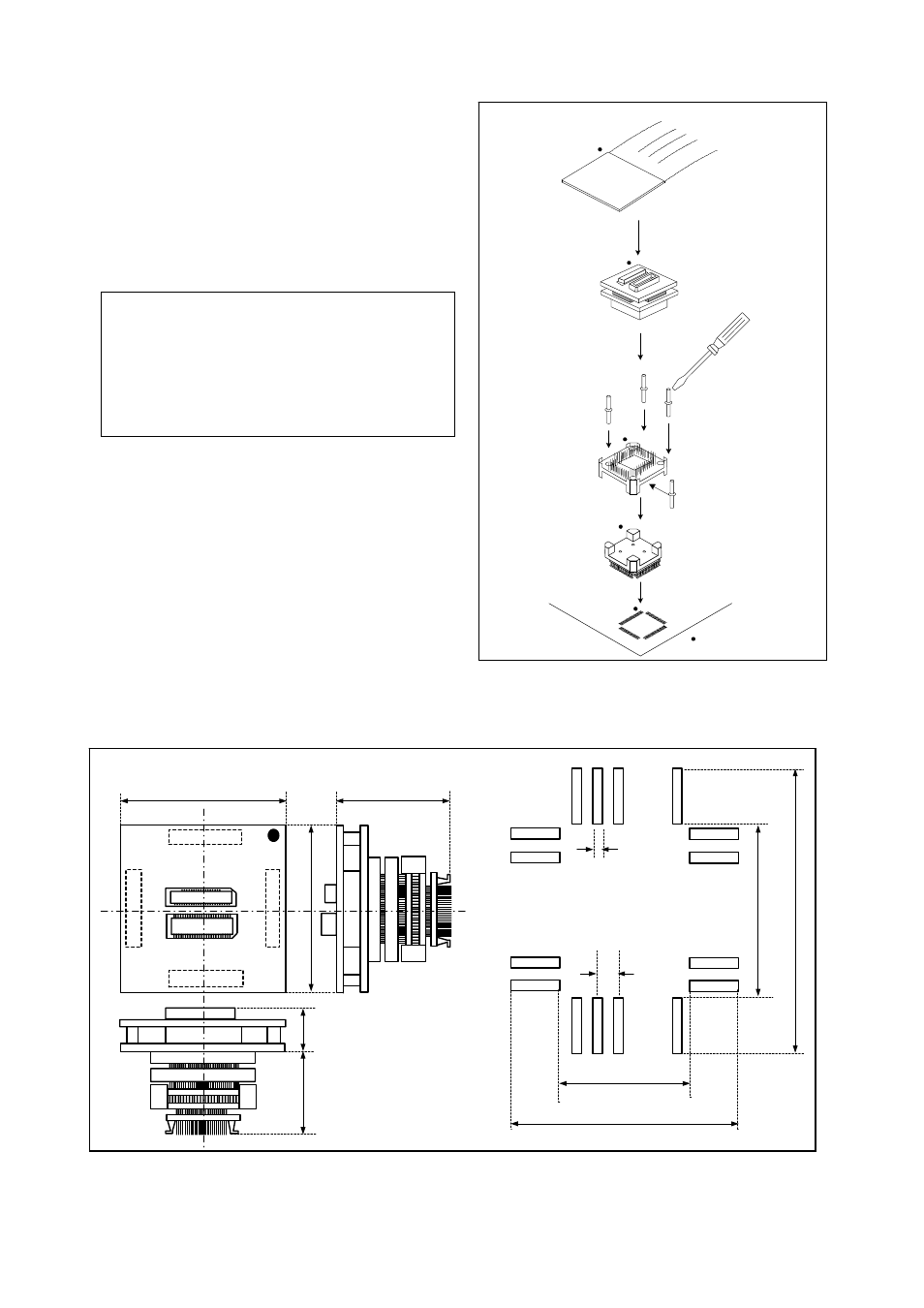

Figure 3 Connection procedure of the M3T-FLX-80NSD

6. External Dimensions and a Sample Foot Pattern

Figure 4 External dimensions and a sample foot pattern of the M3T-FLX-80NSD

(5)

(4)

(1)

(2)

(3)

Use a slotted screwdriver.

YQ-GUIDE (x4)

YQPACK080SD

NQPACK080SD-ND

80-pin 0.5-mm-pitch
(80P6Q-A) foot pattern

FLX100 cable

M3T-FLX-80NSD

: No. 1 pin
Be sure to align the pins.

CN

1

MADE IN

JAPAN

J1

J2

M3T-FLX-80NSD

1

25

2

5

2

6

26

50

5

0

1

27.0

27

.0

12

.0

19

.5

--

-------

--

-----

------

- - - -

- - - -

0.25

0.5

15.1

11.1

15

.1

11

.1

31.5

REV. A
