1. Outline
The M3T-FLX-80NSD is a converter board for connecting the
100-core flexible cable FLX100 to a foot pattern for 80-pin
0.5-mm-pitch LQFP (80P6Q-A).
2. Package Components
(1) M3T-FLX-80NSD converter board............................. 1 pc.
(2) YQSOCKET080SDF (made by Tokyo Eletech Corporation)
(pre-mounted on the M3T-FLX-80NSD) .................... 1 pc.
(3) YQPACK080SD
(made by Tokyo Eletech Corporation)
................ 1 pc.
(4) NQPACK080SD-ND
(made by Tokyo Eletech Corporation)
....... 1 pc.
(5) YQ-GUIDE (4 pieces)
(made by Tokyo Eletech Corporation)
.....4 pcs.
(6) M3T-FLX-80NSD User's Manual (This manual)
3. Specifications
Table 1 Specifications
Applicable package
80P6Q-A
(80-pin 0.5-mm-pitch LQFP)
Insertion/removal
iterations of connector
20 times guaranteed
4. Usage (See Figure 2)
The M3T-FLX-80NSD can be used for debugging and board
mounted evaluation in common by mounting the
NQPACK080SD-ND on the target board.
(1) For debugging
Mount the NQPACK080SD-ND and YQPACK080SD on
the foot pattern of the target board in that order. And
connect the probe tip of the emulator to the upper
connector of the M3T-FLX-80NSD. Then connect the
YQPACK080SD and M3T-FLX-80NSD.
(2) For onboard evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HQPACK080SD (separately available) in
that order on the NQPACK080SD-ND on the target
system.
Before using the M3T-FLX-80NSD, be sure to read "7.
Precautions" on page 4.

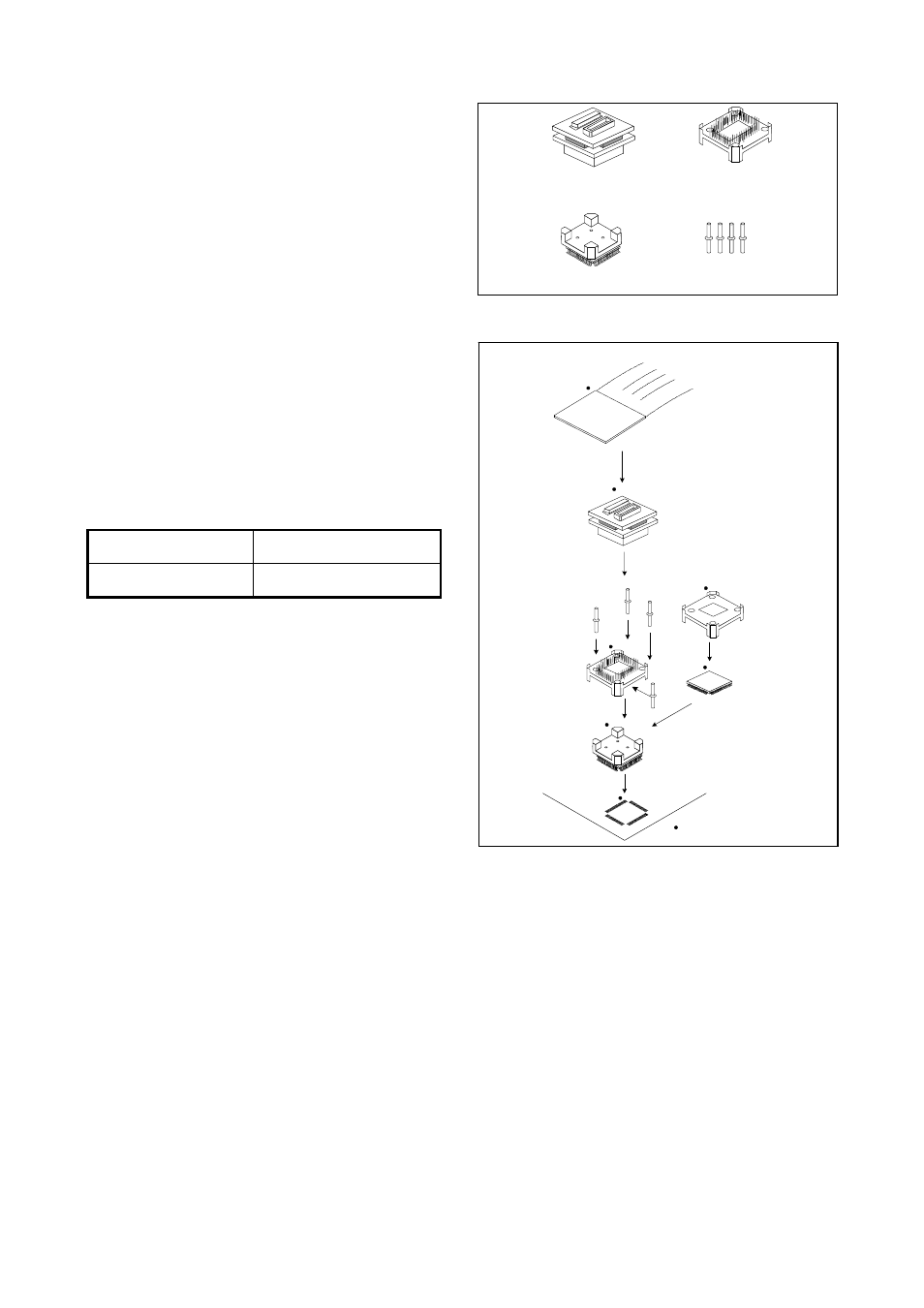

Figure 1 Package components of the M3T-FLX-80NSD
Figure 2 Usage of the M3T-FLX-80NSD
YQ-GUIDE (x4)
YQPACK080SD
NQPACK080SD-ND
80-pin 0.5-mm-pitch
(80P6Q-A) foot pattern
(2) Onboard evaluation
HQPACK080SD
(separately available)
M C U w i t h o n - c h i p f l a s h
memory or one-time PROM
: No. 1 pin
Be sure to align the pins.
FLX100 cable
(1) Debugging
M3T-FLX-80NSD
YQ-GUIDE (x4)
YQPACK080SD
NQPACK080SD-ND
M3T-FLX-80NSD
