REAR PANEL CONNECTIONS
13

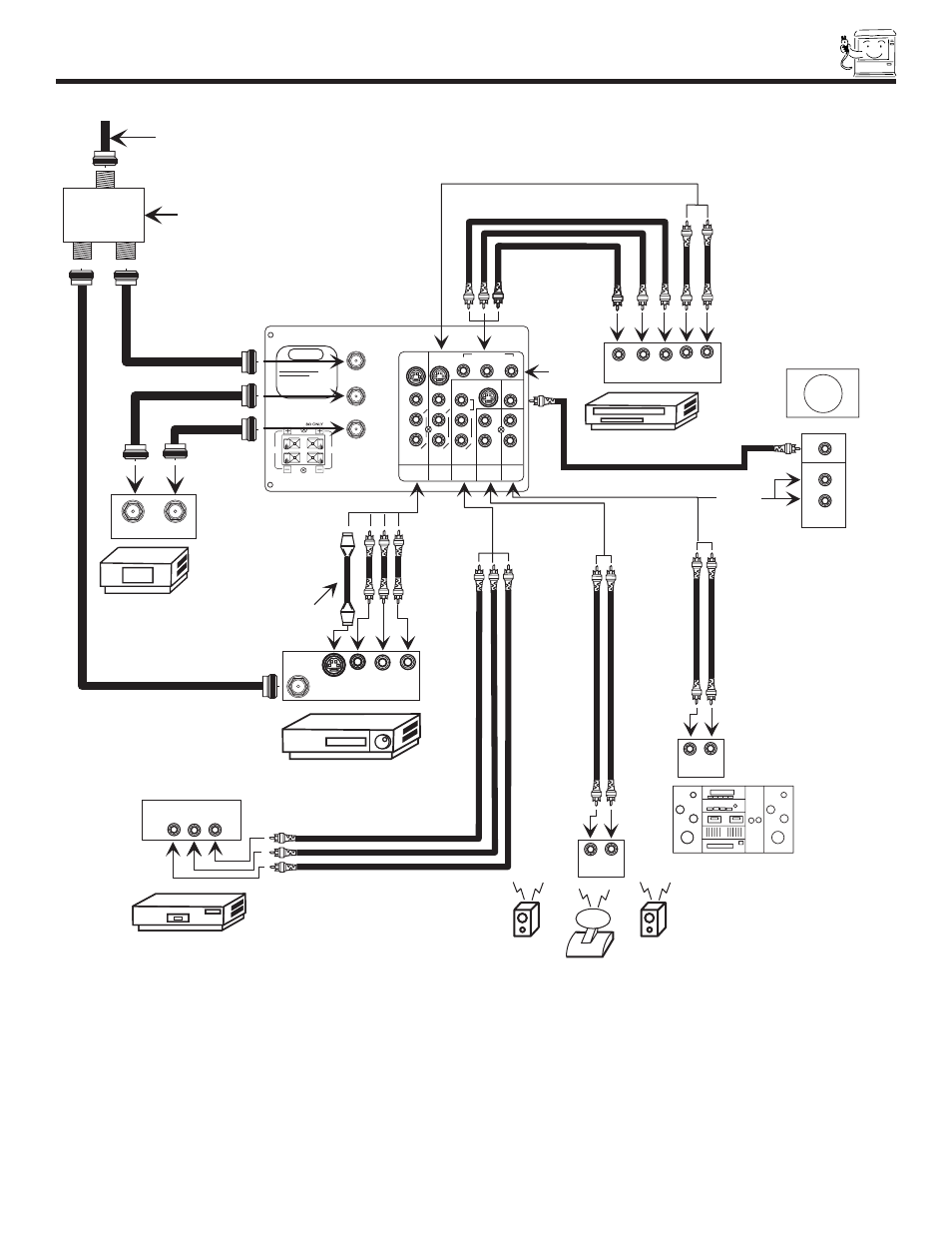

Typical full feature setup. Follow connections that pertain to your personal entertainment system.
B
SUB
WOOFER
STOP
CONNECT ONLY 8 OHM SPEAKERS
DO NOT SHORT CIRCUIT
THESE TERMINALS
(Such damage is NOT COVERED
by your television warranty)
R L
REAR SPEAKER
R
OUTPUT
Y C C
L R
DVD Player,
Laserdisc player, etc.
See tips on
page 15
L R
INPUT
L R
INPUT
INPUT
V L R
Wirelss
Speaker
Wireless
Speaker
Transmitter
Wireless
Speaker
Stereo System Amplifier
VCR #2 VCR #2
Optional, see tips
on page 15
Sub Woofer
INPUT
(Optional)
INPUT
Sub
Woofer
L
R
Audio
Cable TV Box
Outside antenna or
cable TV coaxial cable
2-Way signal splitter
INPUT OUTPUT
VCR #1
OUTPUT
V L R S-VHS
ANT
IN
WIRELESS
OUT
MONITOR
OUT
AUDIO
TO HI-FI
INPUT 2 INPUT 1
AUDIO
(MONO)
L
R
AUDIO
(MONO)
L
R
AUDIO
L
R
S-VIDEO S-VIDEO
VIDEO VIDEO
VIDEO
ANT A
TO
CONVERTER
ANT B L L
R R
COMPONENT
Y C C
S-VIDEO
R B
