Chapter 2: operation, Autopilot – Raymarine navigation system User Manual
Page 7
4
ST80 Autopilot Keypad Operation Manual
Chapter 2: Operation

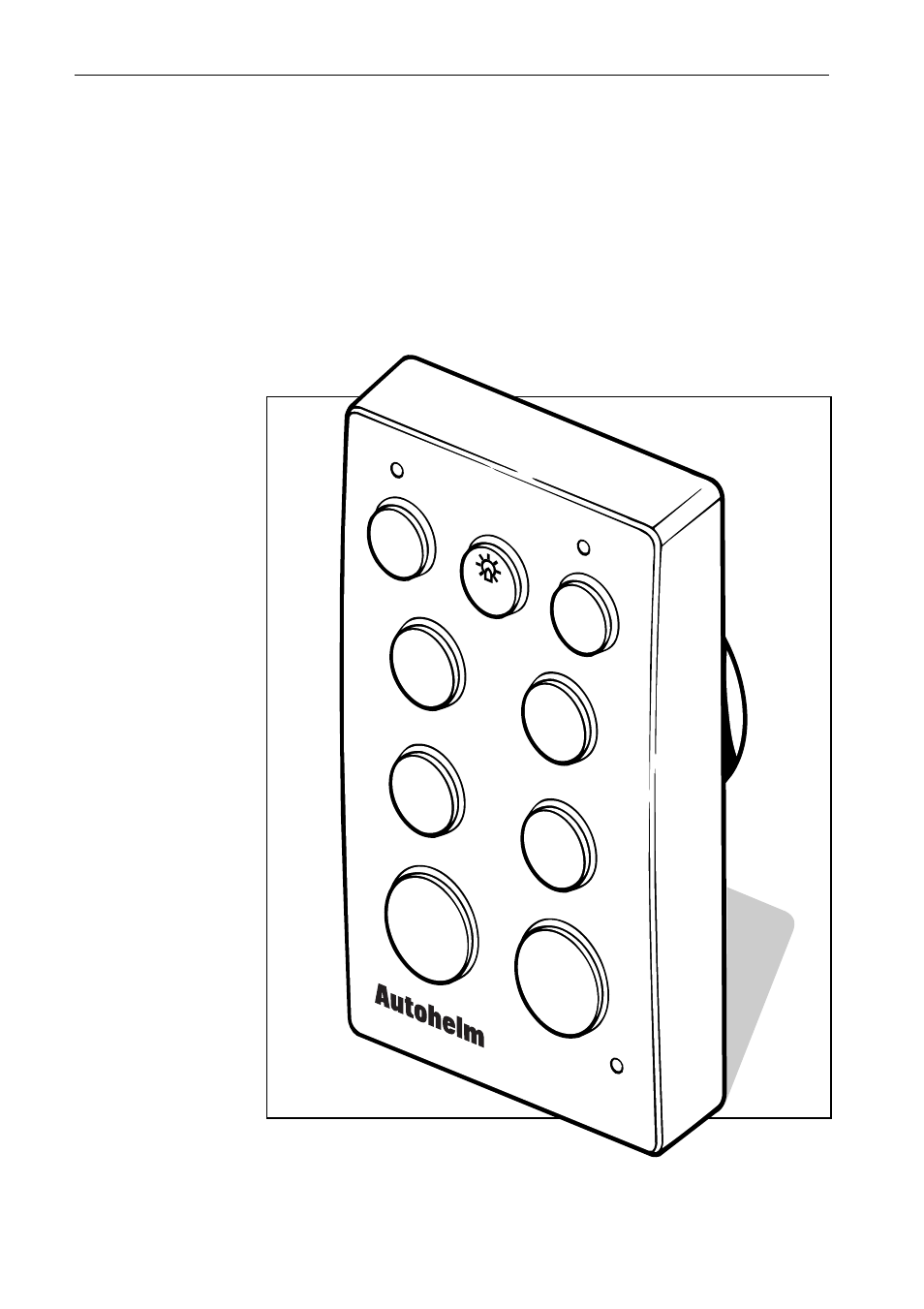

2.1 Keypad Layout and Features
The autopilot keypad has been designed as a control interface for
Autohelm autopilot’s. The keypad consists of nine push-button keys
together with operation status LED’s. The basic function of each of
these keys is described in the following illustration.
autopilot
track
+1
+10
-1
-10
resp
auto
standby
disp
