Installing Your Telephone
7

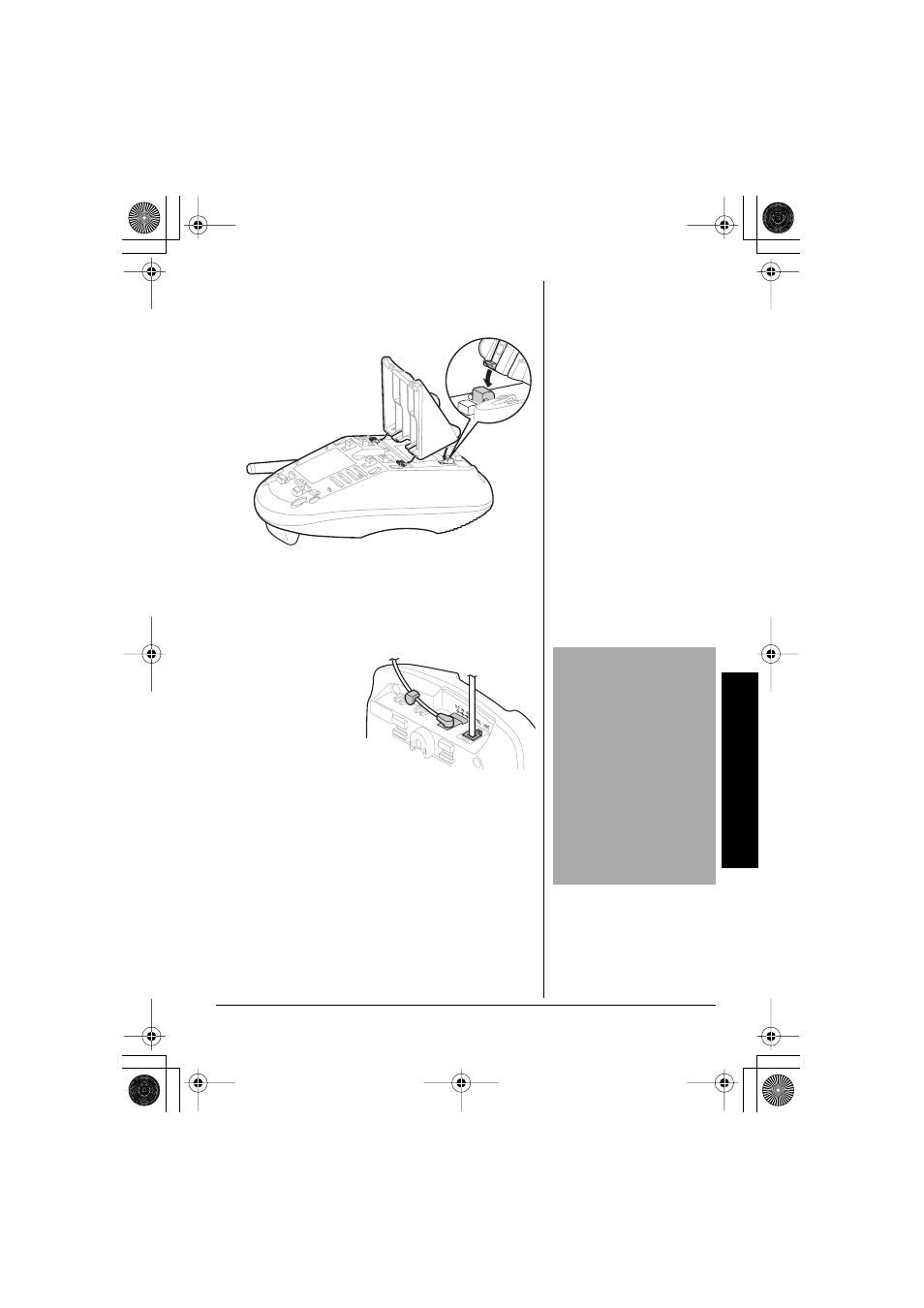

To put the phone on a slant, insert the clips into
the middle clip slots. Then, tilt the bracket down
so the tabs click into the upper tab slots.
2. Plug one end of the supplied long modular cord
into the TEL LINE jack on the back of the base.
3. Plug the modular cord’s other end into a
modular phone line jack.
4. Insert the
supplied AC
adapter’s barrel
plug into the
DC
IN 9V jack on the
back of the base.
5. Route the
adapter’s cord through the strain relief slot on
the back of the base.
6. Plug the adapter into a standard AC outlet. " " " "
7. Lift the base's antenna to a vertical position.
"
CAUTION
"
You must use a Class 2
power source that supplies
9V DC and delivers at least
350 mA. Its center tip must
be set to positive and its
plug must fit the phone's
DC IN 9V jack. The
supplied adapter meets
these specifications. Using
an adapter that does not
meet these specifications
could damage the phone or
the adapter.
