Chapter 1: Before You Begin
8 Chapter

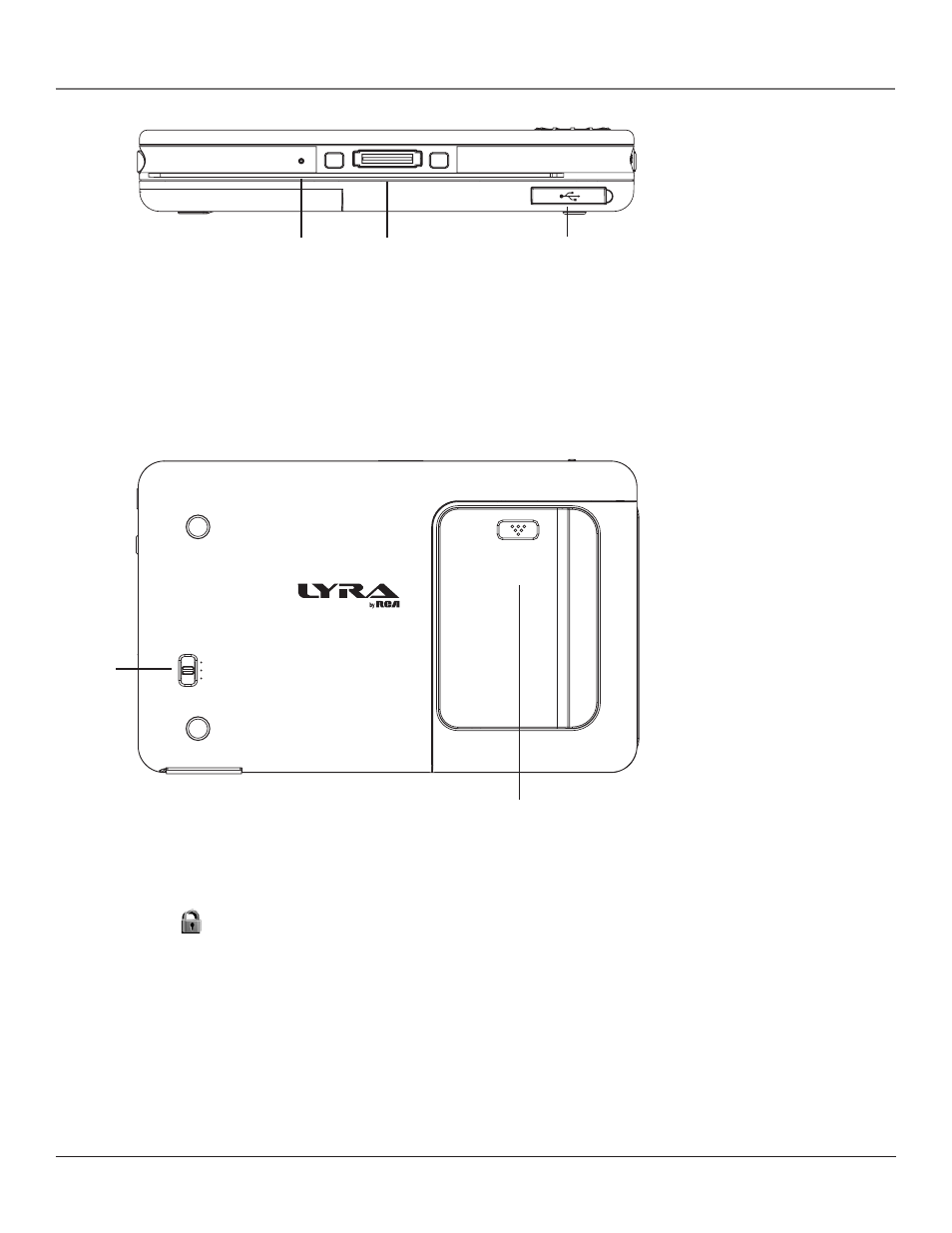

Bottom View
Reset button – If your Lyra Recorder appears to be locked up, press the Reset button (the unit will be reset).
Docking connection – This is where the Lyra Recorder connects to the docking station.
USB jack – Attach the small end (Type mini-B) on the USB cable here. Attach the large end (Type A) to your computer.
Reset
button Docking
connection USB jack
NORMAL
TV OUT
CONTROLS HOLD
Mode
switch
Battery
cover
Back View
Mode switch
CONTROLS HOLD – Locks the Lyra Recorder’s buttons. Slide the switch to the CONTROLS HOLD (button lock
on) position (the
icon appears in the display to remind you that you’ve locked the buttons).
NORMAL – Slide the switch to the NORMAL position for normal operation (button lock off).
TV OUT – If you’ve connected a cable to the LINE OUT jack, slide the switch to TV OUT to display the Lyra
Recorder’s content on your TV.
Battery cover
Provides access to Li-ion battery. (NOTE: Removing battery will require you to re-sync your subscription media
content).
