M219 room amplifier Re:connect
7
Detailed descriptions
[1]
LOCAL IN 1 2 3
Local Cinch inputs L/R
The M219 has 3 local line
inputs for a CD player, video
recorder or TV, for example,
which are located directly in the
room where the M219 is. The
local audio inputs are activated
by the Local key on the (wall-
mounted) remote control. You

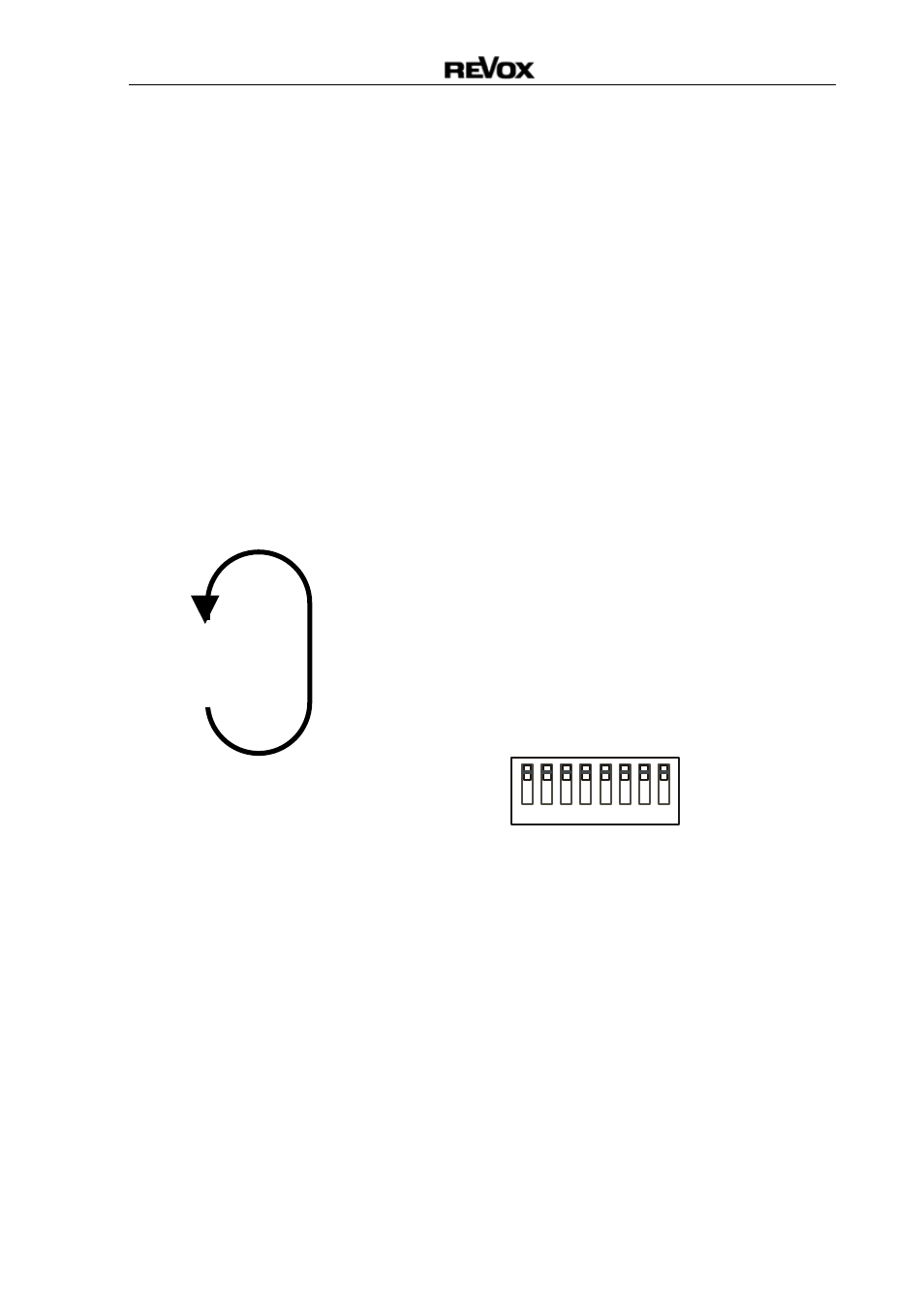

can scroll through a loop of the
local inputs by repeatedly
pressing the Local key:
The number of active inputs that
are actually used can be set
through Setup DIL switches 4 &
5. This saves you unnecessary
scrolling through non-active
inputs. If, for example, only
inputs 1 and 2 are used, you
can set the switches so that you
only have to scroll through
Inputs 1 & 2. Input 3 is skipped.
[2] PRE
OUT
Preamp outputs L/R
Using the M219s preamp
outputs, additional output
devices can be supplied, or the
RE V OX digital speakers can be
operated through the RE V OX
DLC-2.
The configuration of this audio
output is described in detail on
Page 9.
[3] SETUP
DIL Setup switches
The basic settings of the M219
are configured through these
DIL setup switches.
Important
Configuration can only be
carried out through the setup
switches when the M219 is
disconnected from the power
supply. Otherwise, the new
settings are not activated.
The function of each individual
switch is described on the next
page.
1 4 3 2 5 6 7 8
( Local 1
( Local 2 )
( Local 3 )
