M219 room amplifier
Re:connect
6
Connection plan
Short descriptions
[1]
Local Cinch inputs L/R
[2]
Preamp outputs L/R
[3]
DIL setup switches
[4]
M219-Link display connector
[5] IR receiver or wall-mounted
remote control connections
[6]
Switching voltage input
[7]
Stereo/ Mono switch
[8]
Multiroom Bus input
[9]
Multiroom Bus output
[10
] Speaker connections L/R
[11]
Fuse
[12]
Power connection

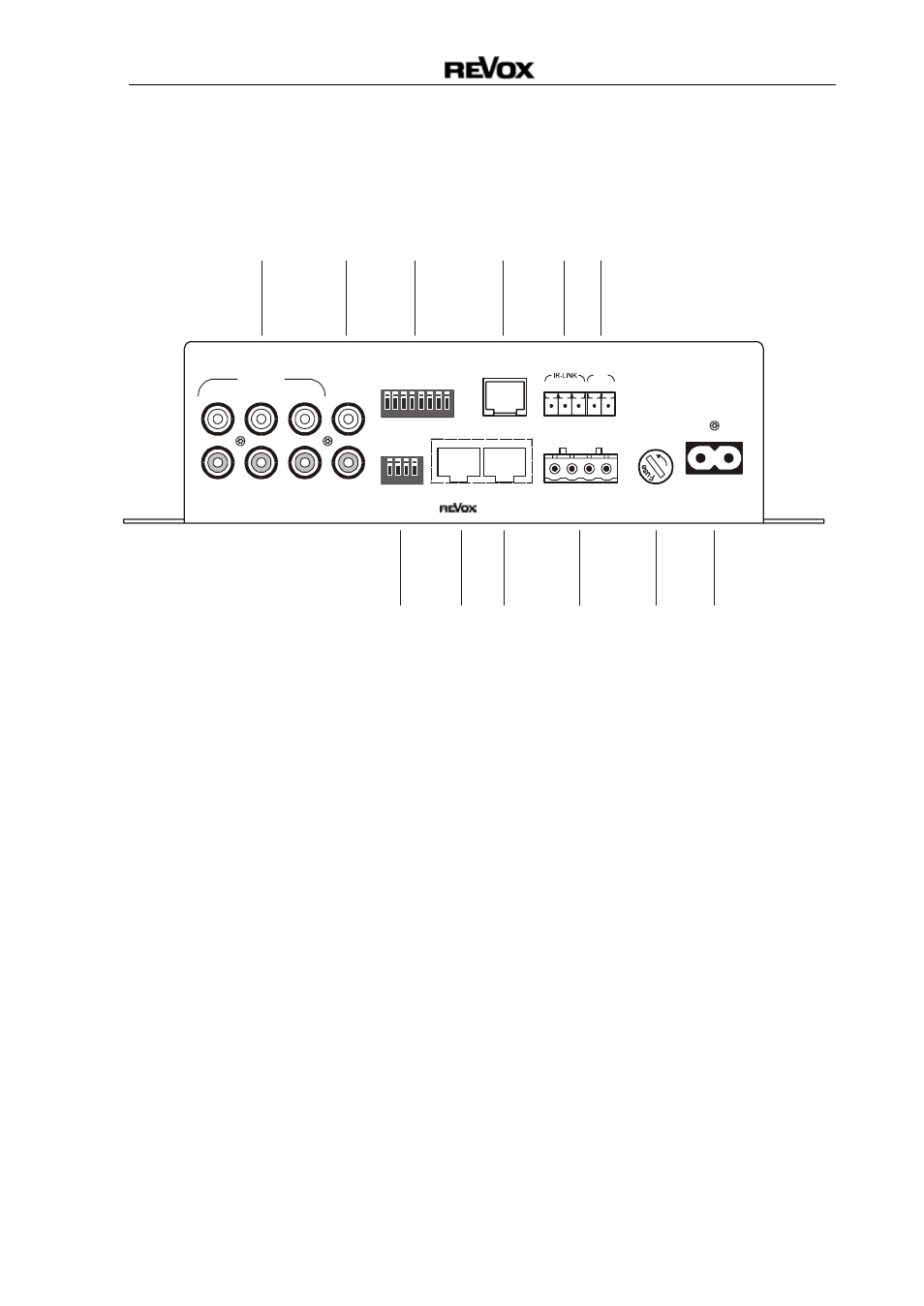

Rear view
1
4
3
2
5 6 7 8
1
4
3
2
PRE
OUT
SETUP
M219
LINK
CHANNEL
SELECT
IN
OUT
+ R -
- L +
MR-BUS
SPEAKERS
LOCAL IN
L
R
1
2
3
OUT
IN
+
-
-
+
FUSE
AC - POWER
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
