M30880T-EPB User’s Manual 2. Setup
REJ10J0497-0100Z Rev.1.00 January 16, 2005 Page 47 of 100
2.10.3 A/D Conversion Bypass Capacitors
There is a foot pattern on the M30880T-EPBM board for mounting bypass capacitors for the A/D conversion circuit. Mount
applicable bypass capacitors as occasion demands. Figure 2.23 shows where they are installed.
M
308
80T-
E
P
B
M
REV.
B
M
A
D
E
IN
JA
PAN
AVCC
AVSS VSS XOUT NC XCIN P87 NC P86
SW2 SW1 SW3 SW4
C 1 C 2
EXT INT VCONT
JP1
VC
C
1
=
2
VC
C
1
>
2
C 4 C 3
O N
1 8 2 3 4 5 6 7
SW5
RE
NE
S
A
S
C1 C2
V REF
AV SS
AV CC
AV SS
C1: Vref-Avss bypass capacitor
C2: AVcc-Avss bypass capacitor

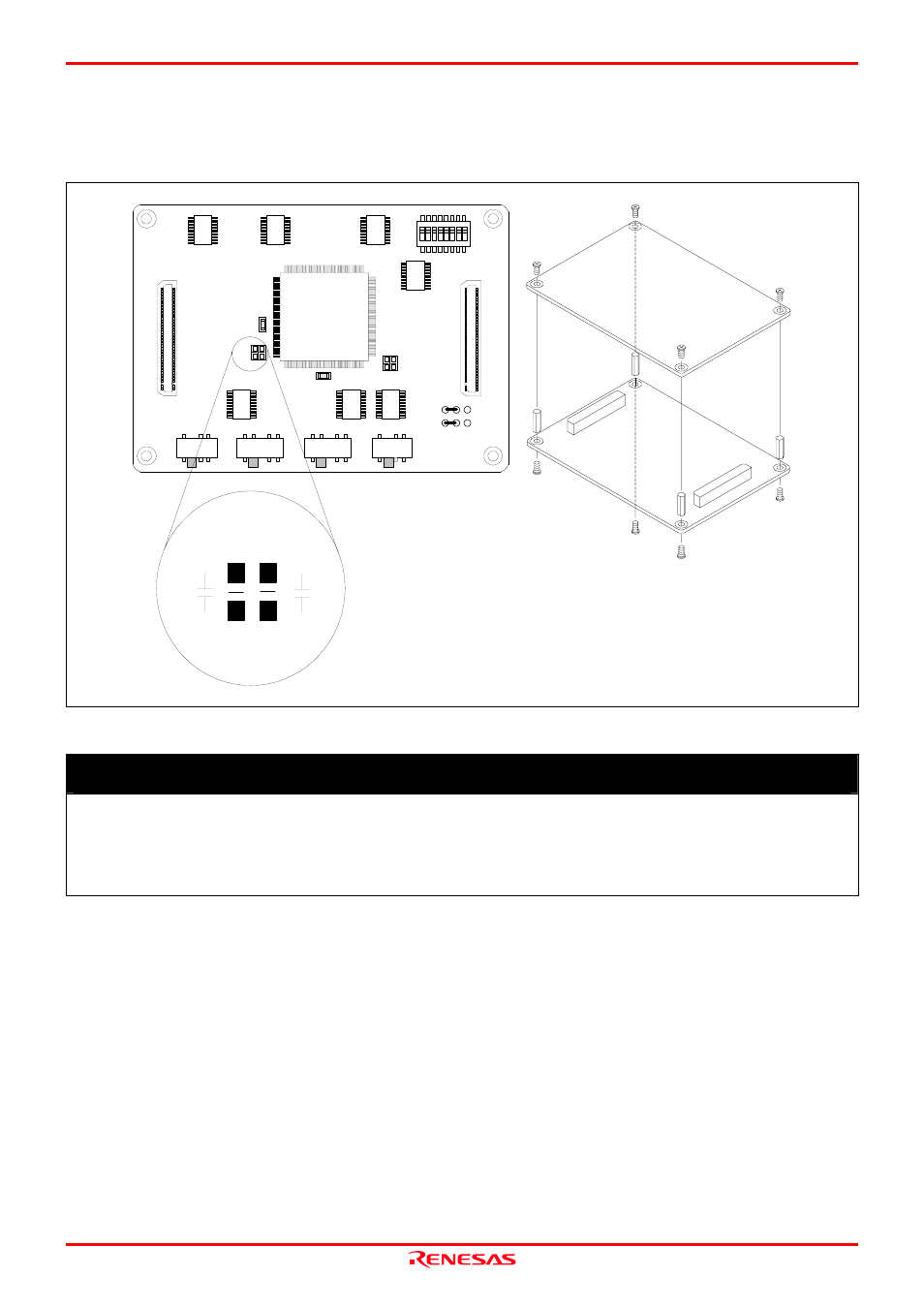

Figure 2.23 Foot pattern for the A/D conversion bypass capacitor
IMPORTANT
Note on the A/D Converter:
Because a converter board and other devices are used between the evaluation MCU and the user system, the
A/D converter operates differently from an actual MCU. Make the final evaluation of the A/D converter using
an actual MCU.
