R0E0100TNPFJ00 User’s Manual
5. Connection Procedure (See Figure 3)
REJ10J1735-0200 Rev.2.00 Page 2 of 4
Apr 16, 2010
The procedure for connecting the R0E0100TNPFJ00 is shown
below.
(1) Mount the NQPACK100RB on the user system.
(2) Attach the YQPACK100RB on the NQPACK100RB.
(3) Secure the four corners of the YQPACK100RB with the
YQ-GUIDEs.
● Do NOT use the screws included with the
YQPACK100RB for fixing the YQPACK100RB.
● Do NOT use the screwdriver included with the
NQPACK100RB for fixing the YQ-GUIDEs. That is
used only for the HQPACK100RB.
(4) Mount the R0E0100TNPFJ00 on the YQPACK100RB.
(5) Connect the flexible cable R0E001000FLX10 of the
emulator to the R0E0100TNPFJ00.
(1)
(2)
(3)
(4)
(5)
Use a slotted screwdriver.
●: No.1 pin
Be sure to align the pins.
100-pin 0.65mm pitch
foot pattern
YQPACK100RB
NQPACK100RB
YQ-GUIDE (×4)
R0E0100TNPFJ00
Flexible cable
R0E001000FLX10

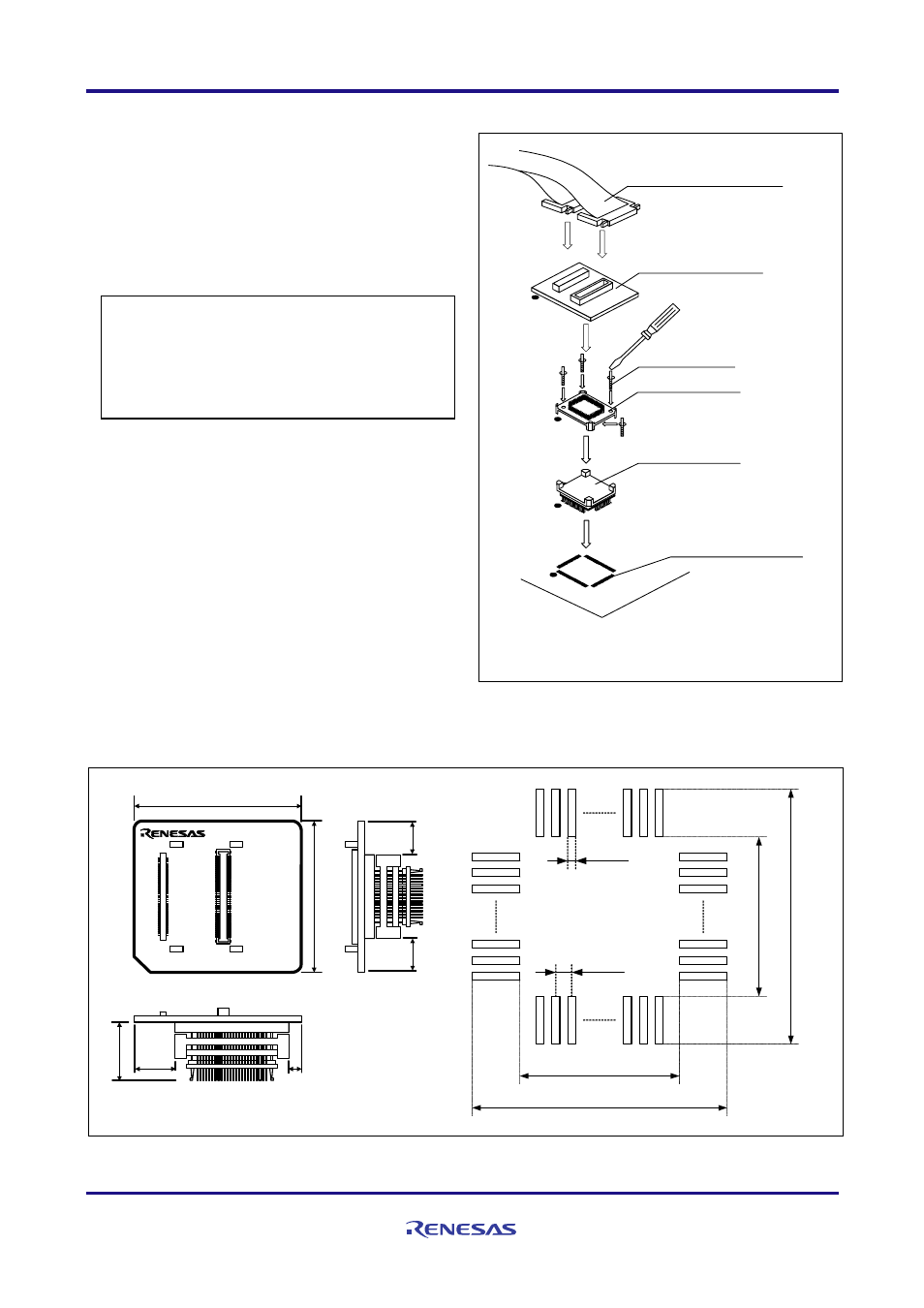

Figure 3 Connection procedure of the R0E0100TNPFJ00
6. External Dimensions and a Sample Foot Pattern
38
.00
42.00
13
.80
17
.20
19.80
23.20
0.65
0.35
Unit: mm
16.50
10.27
2.27
7.
53
7.53
R0E0100TNPFJ00
REV.B
CN1
1
50 51
100
CN2
1
50 51
100
MADE IN JAPAN
Figure 4 External dimensions and a sample foot pattern of the R0E0100TNPFJ00
