DIGITAL INPUT Lets you connect a coaxial (RF) cable to receive digital
programming through your cable provider. Receive off-air digital programming via an
antenna. Refer to page 5 for more details.
S-VIDEO Lets you connect external devices which have S-Video outputs such as:
VCRs, DVD players, satellite receivers and cable boxes. When using S-Video, make sure
to connect the two audio cables as well as the S-Video connector.
• AUDIO-L Provides left audio connection. The left audio connector is usually
white.
• AUDIO-R Provides right audio connection. The right audio connector is usually
red.
To access the device when using these jacks, press the INPUT button on your remote
until SVID2 appears.

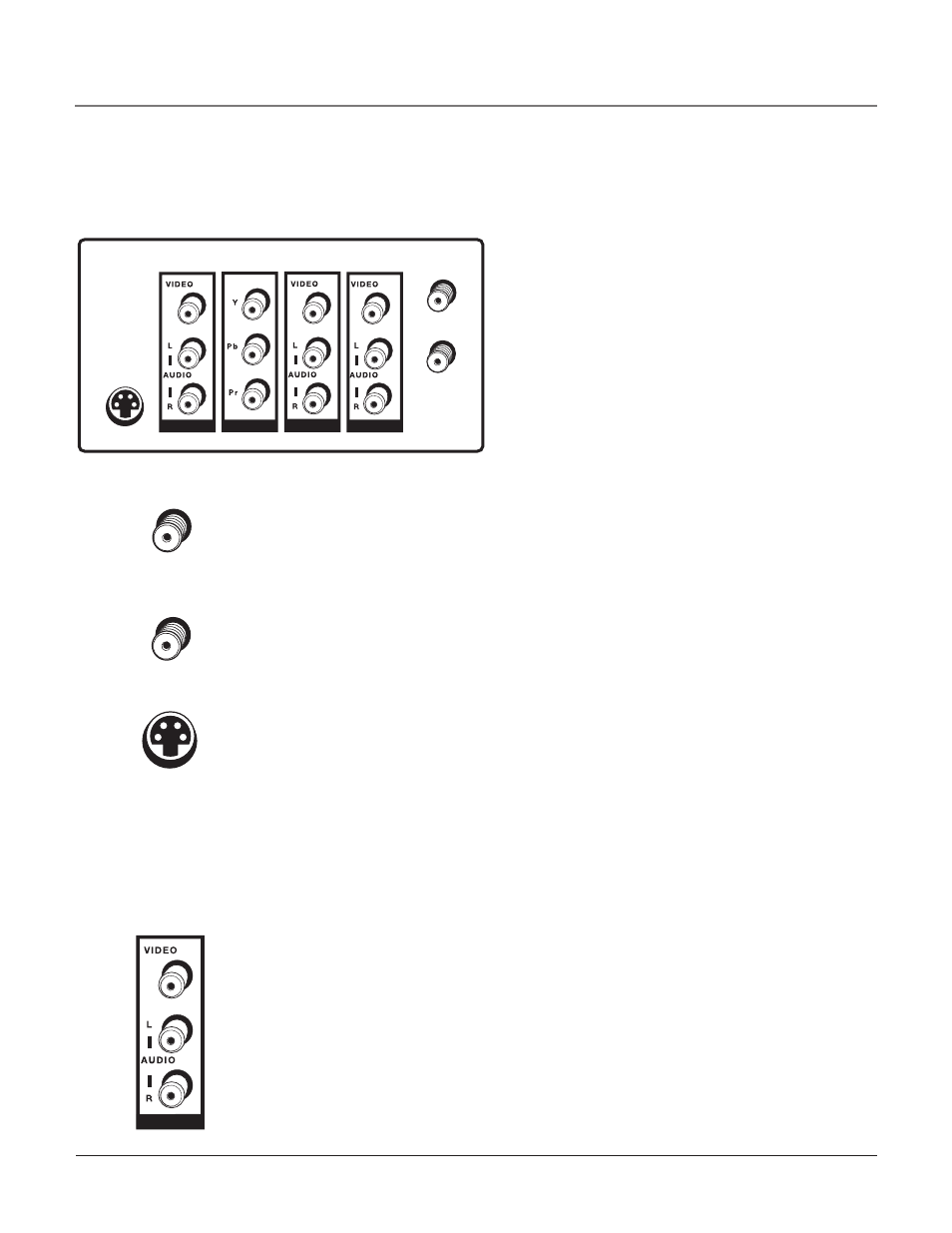

Explanation of Jacks
This section describes the jacks you can use to make connections. There are several
combinations available to connect devices to your TV.
VIDEO OUT VIDEO IN COMPONENT IN VIDEO2 IN
S-VIDEO IN
ANTENNA/CABLE
ANALOG INPUT
ANTENNA/CABLE
DIGITAL INPUT
ANALOG INPUT Lets you connect a coaxial (RF) cable to receive analog
programming through your cable provider. Receive off-air programming via an
antenna. Refer to page 5 for more details.
Use the ANTENNA button to toggle between these RF inputs.
Continues on next page...
VIDEO OUT VIDEO IN COMPONENT IN VIDEO2 IN
S-VIDEO IN
ANTENNA/CABLE
ANALOG INPUT
ANTENNA/CABLE
DIGITAL INPUT
VIDEO OUT VIDEO IN COMPONENT IN VIDEO2 IN
S-VIDEO IN
ANTENNA/CABLE
ANALOG INPUT
ANTENNA/CABLE
DIGITAL INPUT
VIDEO OUT VIDEO IN COMPONENT IN VIDEO2 IN
S-VIDEO IN
ANTENNA/CABLE
ANALOG INPUT
ANTENNA/CABLE
DIGITAL INPUT VIDEO2 IN Lets you connect devices which have Audio/Video (composite) outputs such
as VCRs, DVD players, satellite receivers, cable boxes, camcorders and video game consoles.
Connect the left and right audio jacks for sound.
• VIDEO Provides composite video connection. The video connector is usually yellow.
• AUDIO-L Provides left audio connection. The left audio connector is usually white.
• AUDIO-R Provides right audio connection. The right audio connector is usually red.
To access the device when using these jacks, press the INPUT button on your remote until
VID2 appears.
VIDEO OUT VIDEO IN COMPONENT IN VIDEO2 IN
S-VIDEO IN
ANTENNA/CABLE
ANALOG INPUT
ANTENNA/CABLE
DIGITAL INPUT
Chapter 1 17
Connections & Setup
