Resulting Dimensions after Connecting User System Interface Board

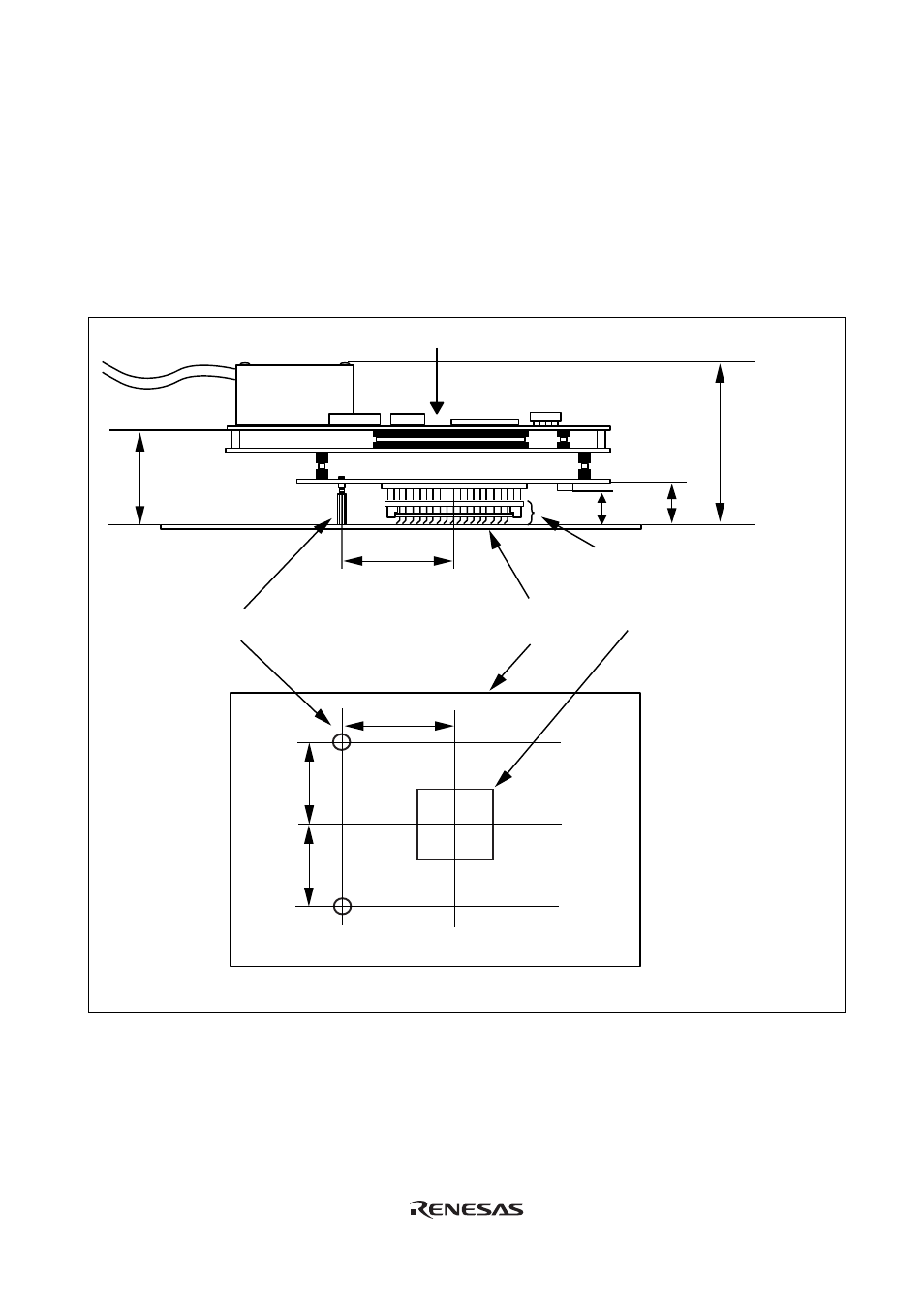

The resulting dimensions, after connecting the user system interface board to the user system, are
shown in figure 12.

EV-chip board

11.5

Unit: mm
Tolerance: ±1.0 mm

User system

31.0

29.5

29.5

31.0

Spacer (

φ

6.0)

35.2

IC socket
(NQPACK144SD manufactured by
Tokyo Eletech Corporation)

13.2

60.2

Figure 12 Resulting Dimensions after Connecting User System Interface Board
