How do I leave Track mode?
You can leave Track mode at any time by:
•
pressing auto to return to Auto mode
•
pressing standby to steer manually in Standby mode
What is Cross track error?

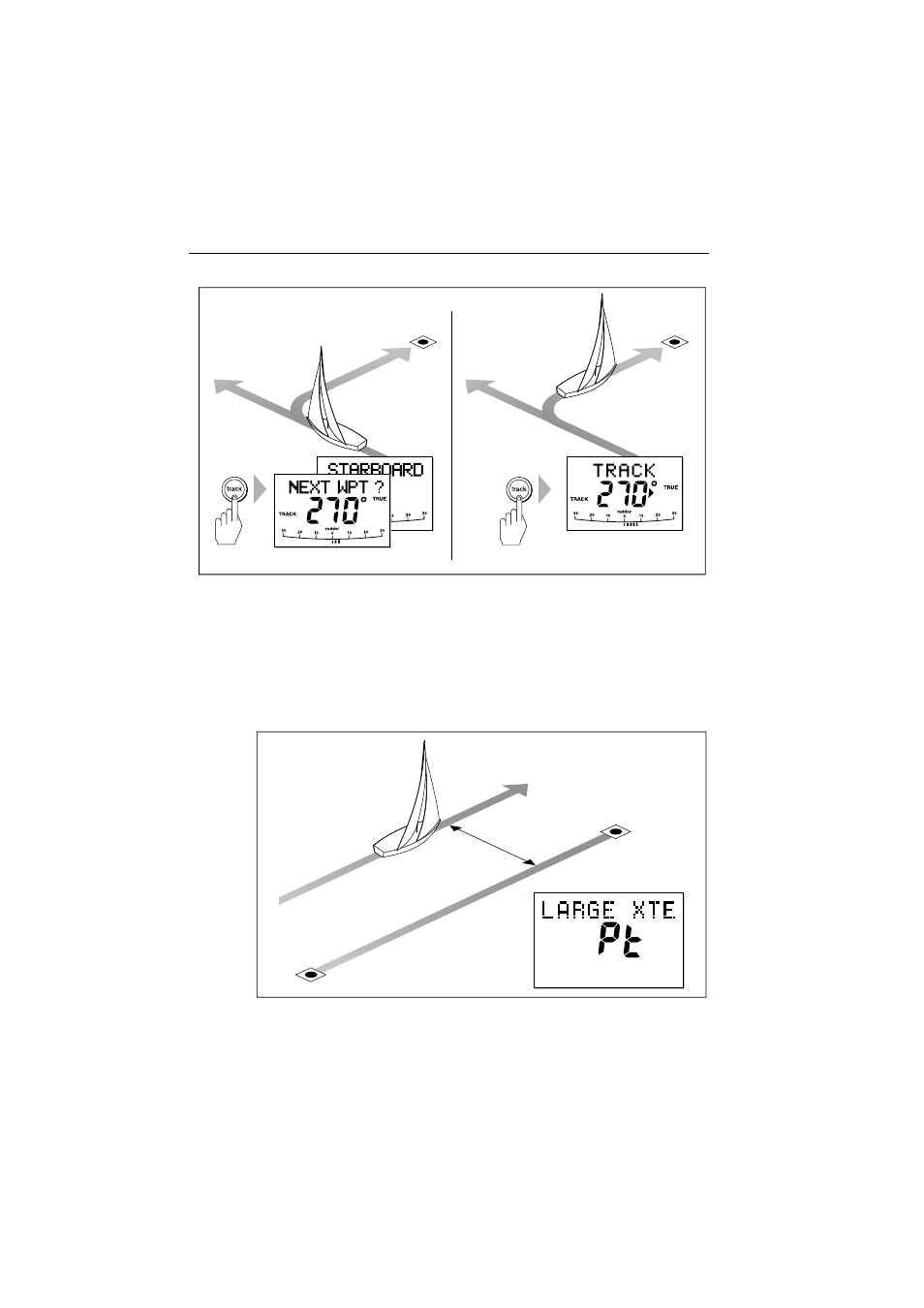

Cross track error (XTE) is the distance between the current position and a
planned route. The SmartPilot receives the cross track error information
Current
heading
Previous
heading
D5414-3
Waypoint at 270˚
Waypoint at 270˚
From auto mode, press track to enter Track mode . . .
. . . then press track again to turn boat to waypoint.
Automatic track acquisition
Waypoint 1
Waypoint 2
Cross track error (XTE)
more than 0.3 nm
D5415-3
Planned route
Actual route
