Connecting to a Dolby
Digital Amplifier
If your home theater has a Dolby Digital amplifier or receiver, connect the SPDIF digital
audio output from the Crystal Series LCD to the digital audio input of the amplifier/receiver
as shown in Figure 3-7.

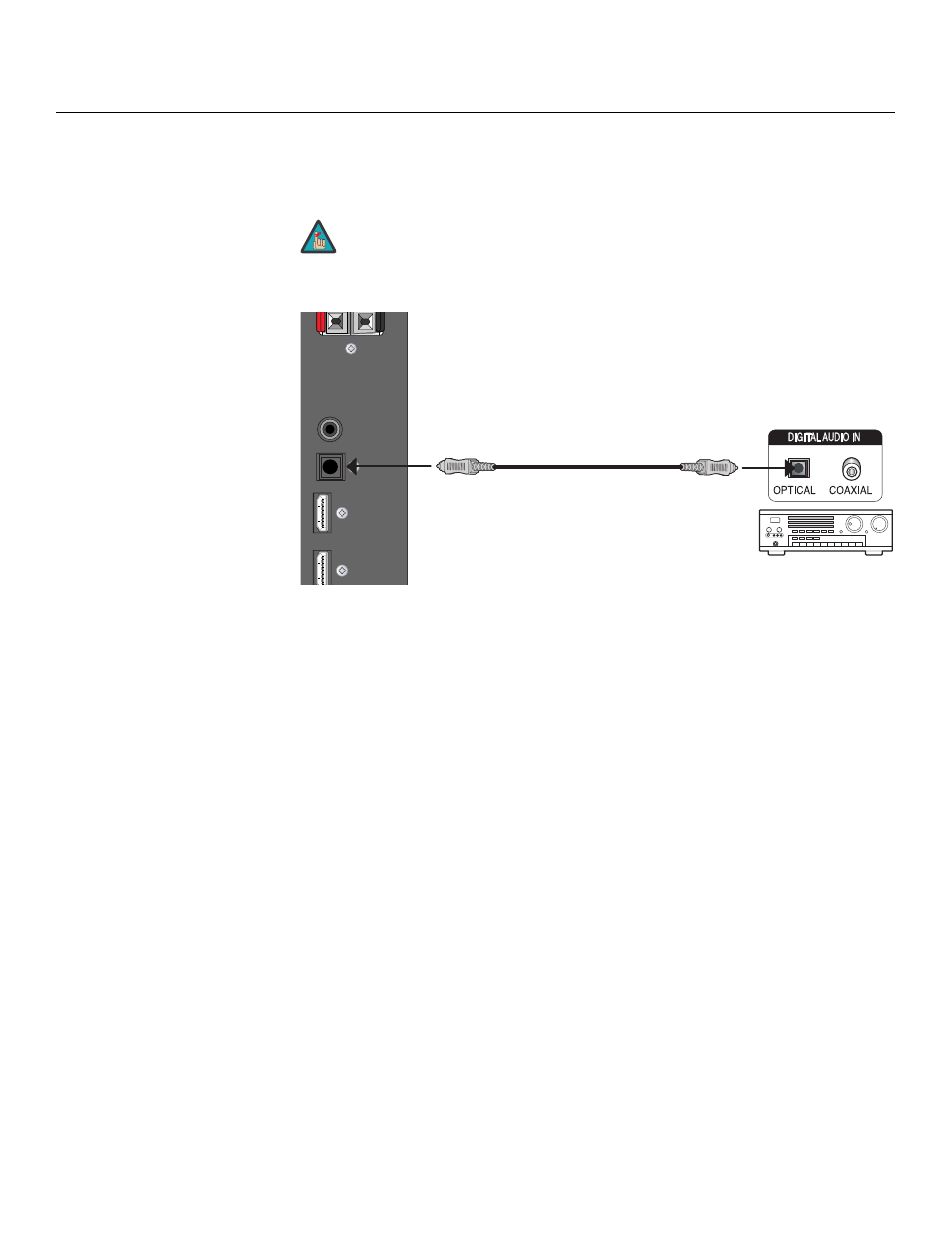

Figure 3-7. Digital Audio Connection
➤
The audio output level is fixed. (The volume and mute controls affect
only the speaker outputs.)
Note
r Out
HDMI 2
HDMI 1
SPDIF Out
IR
In
R
Digital Audio Cable,
Optical
Dolby Digital
Amplifier
