Crystal Series LCD Installation/Operation Manual
PRE
L
IMINAR
Y

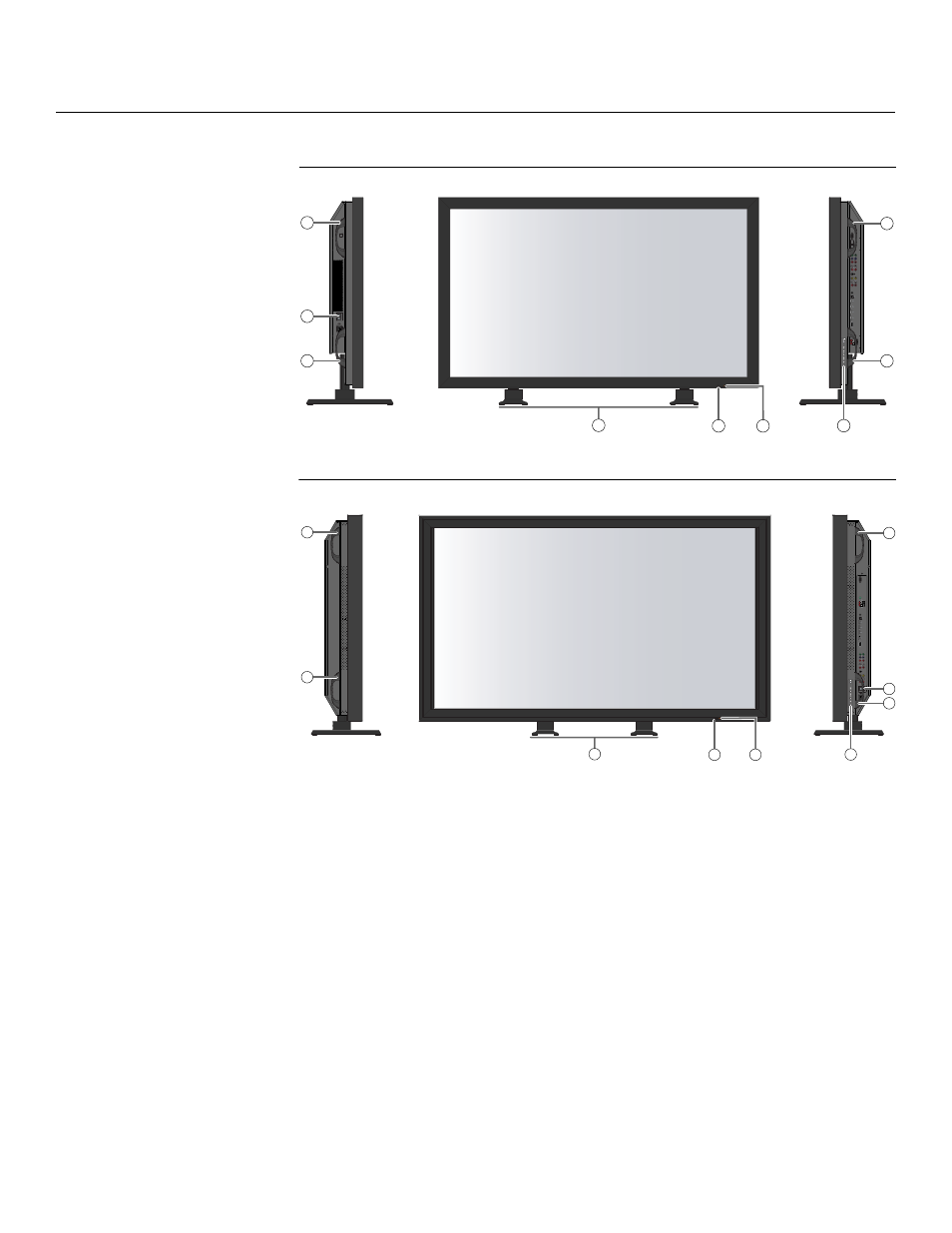

Figure 2-1. Crystal Series LCD Controls and Indicators (continued)
1.
HANDLES
Always use the handles when carrying the display. DO NOT touch or hold the
screen face.
2.
MAIN POWER SWITCH
Connects or disconnects the display panel from the AC power source.
3.
DISPLAY STAND
Included with the Crystal Series LCD for table-top installations.
4.
FRONT REMOTE CONTROL SENSOR
REAR REMOTE CONTROL SENSOR (not shown)
The Crystal Series LCD is equipped with two infrared (IR) sensors that receive signals
from the remote control unit. The rear sensor is directly opposite the front sensor, on
the back of the unit. It allows an IR “bug” to be attached to the rear of the panel
(eliminating the need to wrap the wire around the frame) for a cleaner look.
