2.5 Dimensions of the Evaluation-Chip Board and the User System
Interface Board
The dimensions of the evaluation-chip board and the user system interface board are shown in
figure 7.
Unit: mm
Tolerance:
± 0.5 mm
140.0
Evaluation-chip board
User system interface board
118.5
100.0
84.5
78.5
34.5

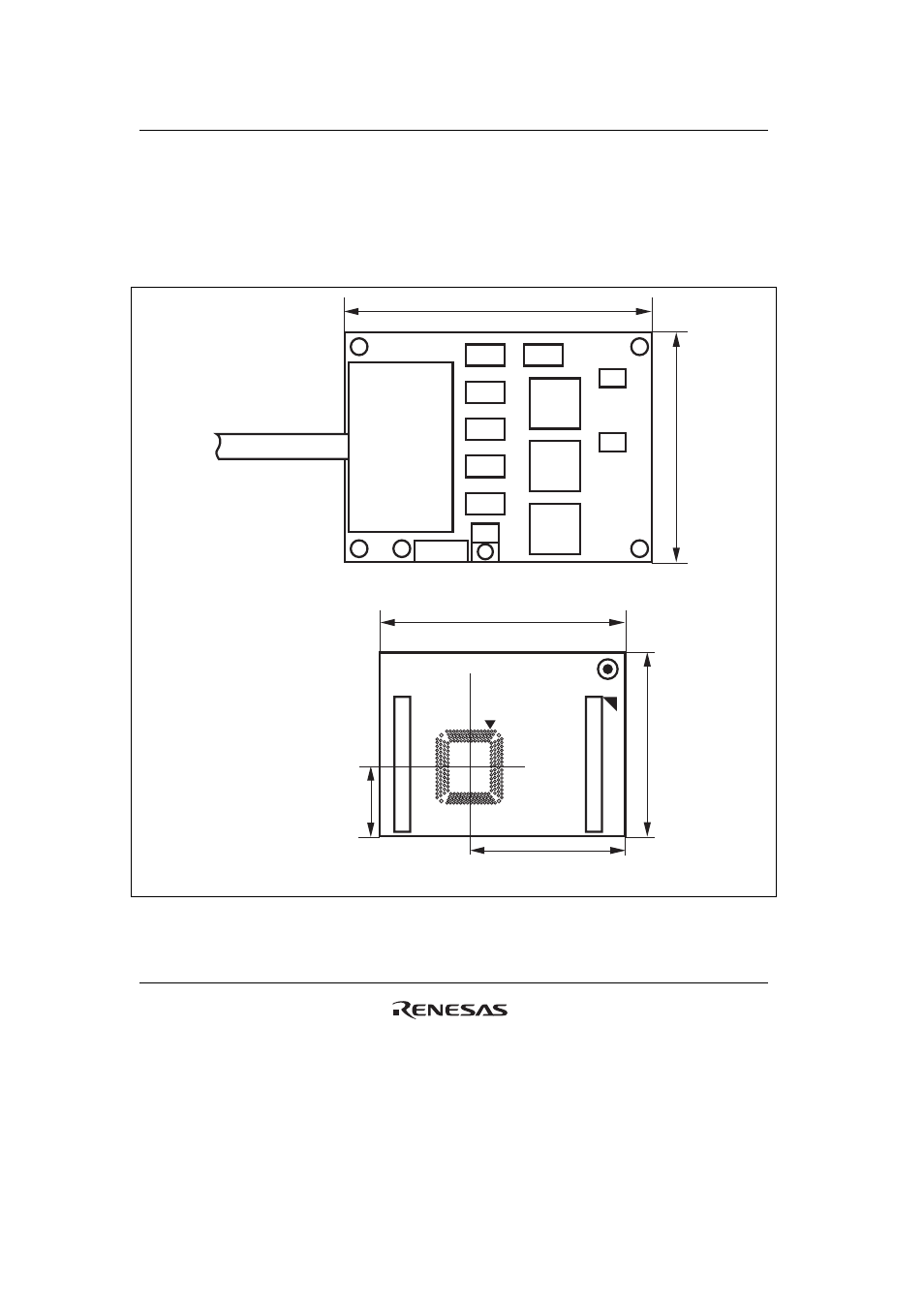

Figure 7 Dimensions of the Evaluation-Chip Board and the User System Interface Board
