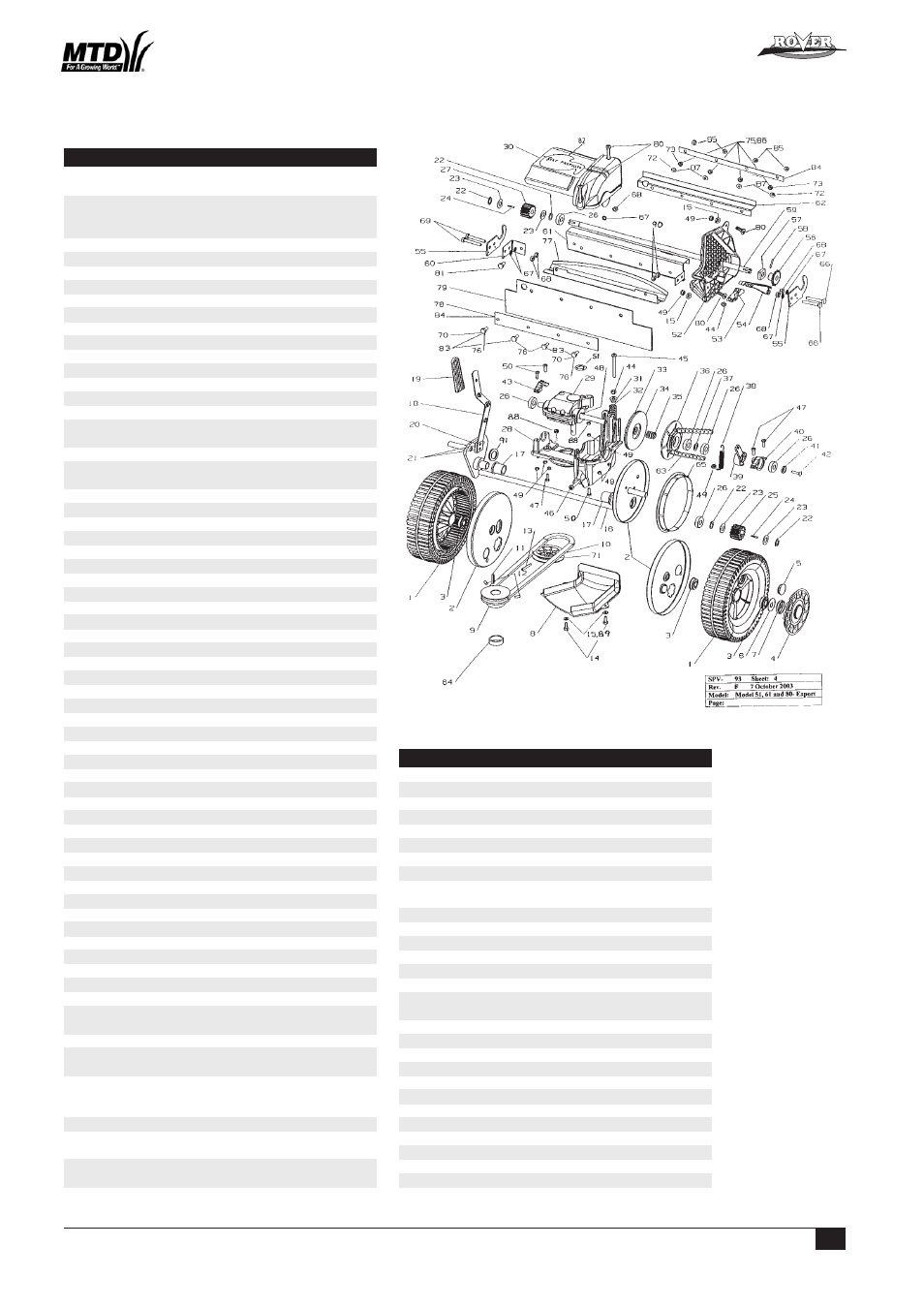

SPARE PARTS VIEWS
SELF PROPELLED SPARE PARTS
No. Part No. Description
Qty
1
A10624 Wheel assembly- 20”
2
1
A10669 Wheel assembly- 22”
2
2
A03381 Cover Plate- 20” LH
1
2
A03380 Cover Plate- 20” RH
1
2
A16045 Cover Plate- 22” Common
2
3
A03353 Wheel bearing
4
4
A03414 Hub cap
2
5
A3521047 Plug
2
6
A373109 Tension washer
2
7
A03092 Ratchet plate
2
8
A16075 Belt cover
1
9
A16065 Engine pulley
1
10
A16079 Gearbox pulley
1
11
A02051 Woodruff key
1
12
A04075 Grub screw- 1/4” x 3/8” unc
2
13
A04073 Roll pin- gearbox pulley 5 x 40
1
14
A04167 Setscrew- M5 x 16 hex.
2
15
A04099 Washer- 3/16” x 3/4” x 16g
2
16
A10639 Rear axle assembly- complete 20”
1
16
A10637 Rear axle assembly- complete 22”
1
17
A16294 Axle bush
2
18
A10284 Height adjustment lever- 20”
1
18
A10635 Height adjustment lever- 22”
1
19
A03250 Handle grip
1
20
A03336 Packing plate
1
21
A02118
Rivets- 1/4” x 3/4”
2
22
A02090 Circlip
4
23
A03373 Pawl retainer
4
24
A03372 Pawl
2
25
A03370 Pinion- LH
1
26
A03361 Bearing
2
27
A03371 Pinion- RH
1
28
A16131
Drive frame
1
29
A10640 Gearbox assembly
1
30
A16063 Frame cover
1
31
A16061 Cap- spring
1
32
A16064 Spring- gearbox
1
33
A10636 Clutch plate assembly- incl. item 34
1
34
A03390 Clutch lining
1
35
A16322 Spring- clutch plates
1
36
A10170 Clutch plate assembly- drive
1
37
A16056 Thrust washer
1
38
A16323 Spring- cam lever
1
39
A16057 Cam lever
1
40
A16060 Bearing retainer and cam
1
41
A16139
Thrust cap
1
42
A04165 Screw- M6 x 12 csk. Cap screw
1
43
A16062 Bearing cap
1
44
A02111
Nyloc nut- M6
2
45
A04162 Screw- M6 x 60
1
46
A04161 Screw- M6 x 70
1
47
A04091 Screw- M5 x 16
3
48
A04157 Roll pin- gearbox shaft
1
49
A04163 Nyloc nut- M5
9
50
A04160 Screw- M5 x 40
3
51
A16337
Label- Caution Drive Belt Tension
1
52
A16066 Chain case
1
53
A16069 Wedge
1
54
A16068 Chain tensioner
1
55
A16071 Axle supports
2
56
A16072 Sprocket- 12 tooth (suits 1/8” x 3/4” roll pin) 1
56
A16360 Sprocket- 12 tooth (suits 5/32” x 3/4” roll pin) 1
57
A03394 Felt seal
1
58
A02069 Roll pin- drive shaft (suits 1/8” x 3/4” roll pin) 1
58
A04174 Roll pin- drive shaft (suits 5/32” x 3/4” roll pin) 1
59
A16058 Drive shaft- 20” (suits 1/8” x 3/4” roll pin)
1
59
A16179
Drive shaft- 22” (suits 1/8” x 3/4” roll pin)
1
59
A16361
Drive shaft- 22” (suits 5/32” x 3/4” roll pin)
1
60
A03391 Mount bracket
1
61
A03383 Rear axle retainer- CE
1
61
A03878 Rear axle retainer- US
1
62
A03393 Drive shaft shield- CE
1
62
A03879 Drive shaft shield- US
1
No. Part No. Description
Qty
63
A16078 Chain- 3/8” x 58 pitch ASA incl. con link 1
64
A16182
Spacer- engine pulley 20” only
1
65
A03382 Seal- rear wheel 20” only
2
66
A02081 Setscrew- 1/4” x 1-3/4” unc. hex.
2
67
A02027 Washer- 1/4” spring
5
68
A02001 Nut- 1/4” hex.
5
69
A02146 Setscrew- 1/4” x 3/4” unc. hex.
2
70
A02078 Setscrew- 1/4” x 1/2” unc. hex. CE only 2
71
A16077 Belt- Dayco SPZX-612 20” only
1
71
A16217
Belt- Dayco SPZX-670 22” only
1
72
A02027 Washer- 1/4” spring CE only
2
73
A02001 Nut- 1/4” unc. hex. CE only
2
75
A02235 Nyloc nut- 1/4” unc- 20” US only
4
76
A02214 Setscrew- 1/4” x 5/8” unc. hex. 20” US 4
77
A03604 Extension- CE mowers only
1
78
A03881 Backing plate- 20” US only
1
79
A03883 Rubber flap- 20” only
1
79
A16235 Rubber flap- 22” only
1
80
A04158 Screw- M5 x 20
4
81
A02078 Setscrew- 1/4” x 1/2” unc. hex.
1
82
A16239 Label- Self propelled cover
1
83
A02169
Setscrew- 1/4” x 1” unc. 22” US only
4
84
A16284 Backing plate- 22” US only
2
85
A02235 Nyloc nut- 1/4” unc. 22” US only
4
86
A02001 Nut- 1/4” unc. hex. 22” US only
4
87
A02027 Washer- 1/4” spring 22” US only
4
88
A04169 Nut- M5 hex.
2
89
A02234 Washer- 3/16” shakeproof
2
90
A02235 Nyloc nut- 1/4” hex.
2
91
A04013 Washer- 3/4” x 1- 1/2” flat
1
