SPARE PARTS VIEWS

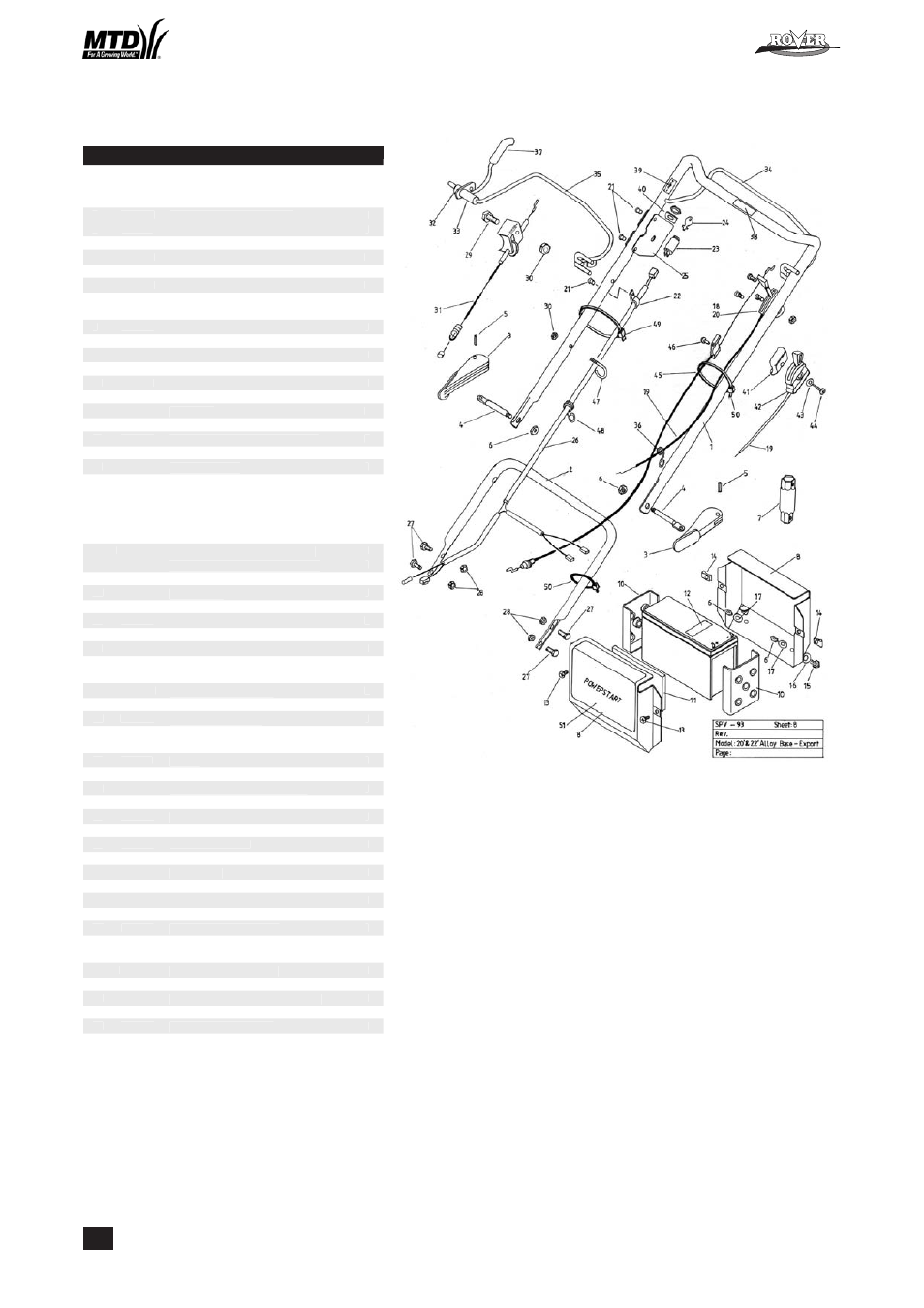

HANDLE BAR SPARE PARTS
No. Part No. Description
Qty
1
A03802
Upper handle bars- 20”
1
1
A03809
Upper handle bars- 20” prof.
1
1
A16174
Upper handle bars- 22”
1
2
A16050
Lower handle bars-20” only
1
2
A16185
Lower handle bars-20” prof & 22”
1
3
A02849K Cam lock- incl. item 4, 5, 6
2
4
A03307
Draw bolt- cam lock incl. in item 3
2
5
A02260
Roll pin- cam lock incl. in item 3
2
6
A02223
Nyloc nut- 5/16” unc. incl. in item 3
4
7
A03518
Plug spanner- Quantum & Honda
1
7
A12392
Plug spanner- Intek
1
8
A03556
Battery support box
1
9
A03559
Battery
1
10
A03558
Battery block
1
11
A03610
Foam block
1
12
A03563
Label -caution
1
13
A02163
Screw- 3/16” x 1/2” mush. head
2
14
A02002
Speed nut
2
15
A02083
Setscrew- 5/16” x 3/4” unc.hex
2
16
A02012
Washer- 5/16” x 7/8” x 18g.flat
2
17
A11102
Washer- special
2
18
A03430
Lever stop plate
1
19
A03326
Throttle cable- 20” B&S CE
1
19
A10641
Throttle cable- 20” Honda GXV
1
19
A10718
Throttle cable- 22” B&S CE
1
19
A10719
Throttle cable- 22” Honda GXV
1
19
A10721
Throttle cable- 22” B&S US
1
20
A00950K Throttle control assembly- briggs
1
20
A10016K Throttle control assembly- Honda
1
21
A04060
Rivet- 73 AS 5-2
1
22
A03565
Cable clamp
1
23
A03560
Key start switch
1
24
A07679
Ignition keys
2
25
A03557
Key start housing
1
26
A16142
Wiring loom- 20”
1
27
A02028
Setscrew- 5/16” x 5/8” -20” only
4
27
A02083
Setscrew- 5/16” x 3/4” -20”Prof & 22”
4
28
A04045
Flanged nut- 5/16” unc
4
29
A02081
Setscrew- 1/4” x 1-3/4” unc
1
30
A02235
Nyloc nut- 1/4” unc
1
31
A16133
Clutch cable- 20”
1
31
A16183
Clutch cable- 22”
1
32
A02521
Spacer
1
33
A10717
Clutch lever assembly
1
34
A10523
Brake lever assembly- 20” push
1
35
A10524
Brake lever assembly- 20 & 22” s/prop.
1
36
A03732
Cable clip- all models
1
37
A03739
Handle grip
1
38
A03747
Label- blade brake
1
39
A03622
Label- drive engagement
1
40
A03756
Switch plate
1
41
A03933
Throttle block
1
42
A16006
Throttle control assembly- US
1
43
A02216
Washer- 3/16” x 1/2” flat
1
44
A04114
Screw- 10 x 50 pan head
1
45
A16233
Brake cable- 20”
1
45
A16184
Brake cable- 22”
1
46
A04083
Screw- 10 x 19 pan head
1
47
A03733
Rope stop
1
48
A03732
Cable clip- powerstart & 20” push
1
49
A02668
Cable tie- powerstart & s/propelled
1
50
A02668
Cable tie- self propelled
1
51
A03938
Label- Powerstart- mulch only
1
51
A03774
Label- Powerstart
1
