Royal Sovereign 451-8 24B/9L RSL-2702S - Manual (Page 27)

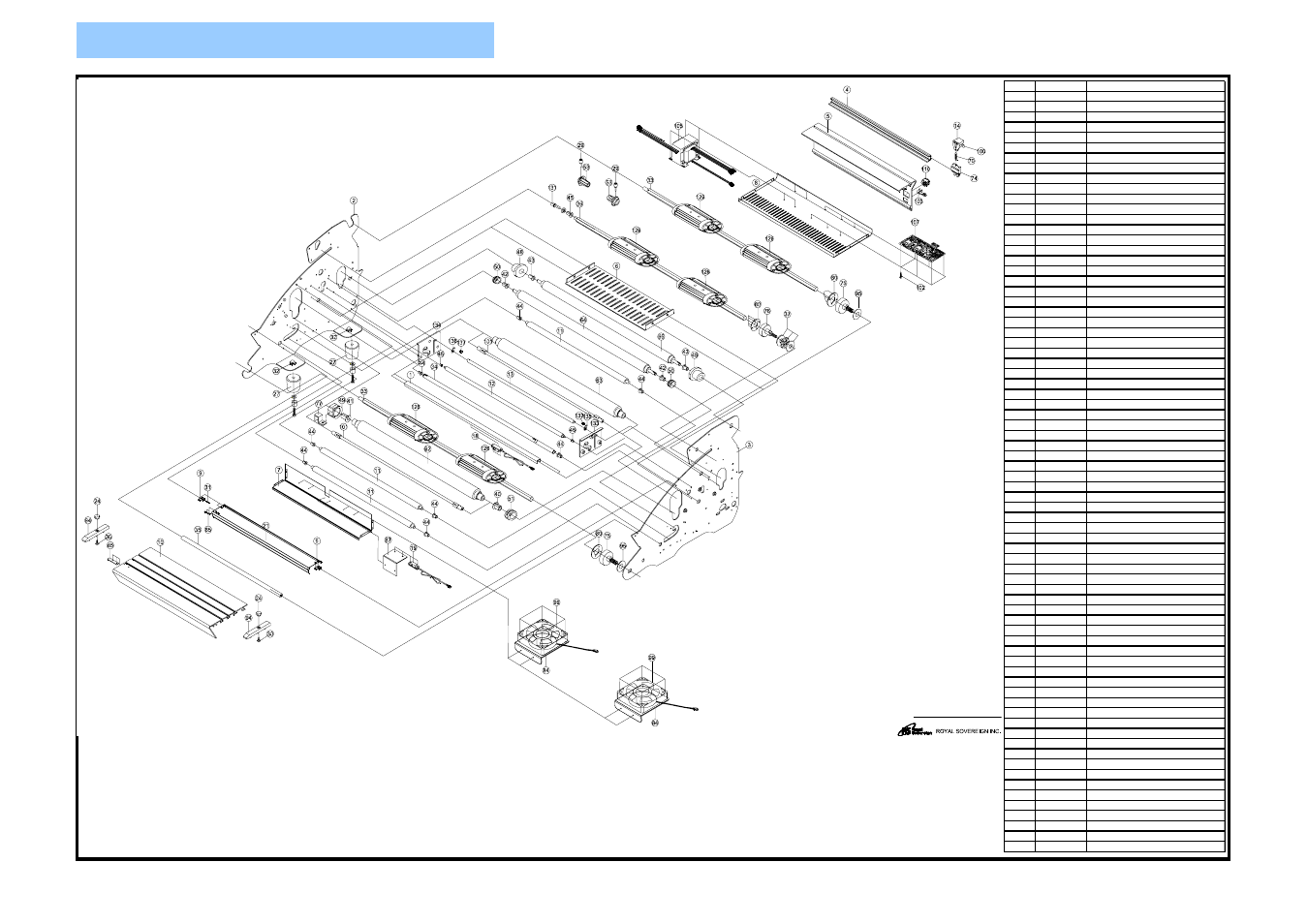

Frame, Roller and Other View
25
1 013LR2012F FRAME-SENSOR
2 013LR2087A FRAME-L
3 013LR2088A FRAME-R
4 013LR3002K FRAME-CUTTER
5 013LR3009A FRAME-REAR
6 013LR3021A PLATE-MIDDLE
7 013LR3075A BASE-FRONT
8 013LR3076A BASE-REAR
9 013LR4004A FRAME-COVER SAFETY
10 014LR3001A TABLE-FRONT
11 015LR2001B IDLE BAR LOW
12 015LR3011A IDLE-BAR
13 015LR3012A SHAFT-DECURLING
14 021CR3001A KNOB-CUTTER,C
18 ASMLR1602A ASM-SENSOR
19 ASMLR1608A ASM-SENSOR
21 021LR3024B COVER-SAFETY
24 023LR4002A KNOB-BOLT GUIDE
27 026LR4006A FOOT
28 032LR3002A SHEET-FUNC
29 111LR4004A BOLT-CORE
30 111LR4006A BOLT-GUIDE
31 111LR4018A SCREW-H
32 112004001D NUT
33 120LR3004G SHAFT-FILM,L
34 120LR3023A SHAFT-CAM
35 120LR4008A SHAFT-TABLE
36 120LR4014A SHAFT-TAKE UP
37 12200X005A BEARING-TRUST NEEDLE
40 12200X027A DU BUSH
42 12200X029A DU BUSH
43 12200X030A DU BUSH
44 12200X032A DU BUSH
45 12200X034A DU BUSH
46 12200X040A DU BUSH
48 122LR4026A BUSH-ROLLER PULL,UP
49 122LR4042A BUSH-ROLLER LAMI,LO-LEFT
50 122LR4047A BUSH-ROLLER PULL,LO
51 122LR4050A BUSH-ROLLER LAMI,LO-RIGHT ASS'Y
53 124LR4006A 1"CORE
62 133LR2021A ROLLER-LAMI,LO
63 133LR2021B ROLLER-LAMI,UP
64 133LR2022A ROLLER-PULL,LO
65 133LR2022B ROLLER-PULL,UP
70 138LR4001A SPRING-CUTTER CROSS
74 140LR3001A HOLDER-CUTTER,C
75 140LR4001A HOLDER-SHAFT FILM
76 140LR4021A HOLDER-SHAFT,T
80 141LR4005A PLATE-SHAFT FILM
84 141LR4041A BRACKET-FAN
85 141LR4043A FRONT TABLE SAFETY LEVER
87 141LR4059A BRACKET-SENSOR
94 145LR3002A GUIDE-DOCUMENT
95 147LR4002A PAD-TENSION
99 211003004A FAN
99-1 211003004B FAN
100 213LR4001A CUTTER-CROSS
101 223LR2007B HEATER ASS'Y
101-1 223LR2007C HEATER ASS'Y
101-2 223LR2007D HEATER ASS'Y
101-3 223LR2007F HEATER ASS'Y
102 23200X002A SUPPORT-PCB
103 23300X001A BUSHING-CORD
105 34000S011A POWER TRANSFORMER
107 350LR3036C PCB-MAIN ASS'Y
110 36400X002B SWITCH-MAIN
124 381LR4092A WIRE-T/FUSE(LO)
126 ASMLR1339A ASM-AUTO GRIP FILM CORE 2"
126-1 ASMLR1339B ASM-AUTO GRIP FILM CORE3"
131 RIV05018E8 RIVET
133 013LR4010A FRAME-GUIDE，R
134 013LR4011A FRAME-GUIDE，L
135 141LR4127A BRACKET-DECURLING BAR,R
136 141LR4128A BRACKET-DECURLING BAR,L
137 111LR4022A KNOB-GUIDE
