Chapter 2: Installing the Scanner 33
Fitting the open array to the pedestal
CAUTION:
The pedestal unit has a cap fitted over the open array mounting
shaft to protect the protuding co-axial pin. This cap must be left
in place until the open array is fitted to the pedestal.
1. Remove the cap from the open array shaft. Retain the cap, it will
be required if the open array is removed from the pedestal.
2. Grease the four securing studs.
CAUTION:
If the pin is damaged during the following operation you should
contact your service dealer.
3. Lift the open array into position. Carefully lower the array - to pre-
vent damage to the mounting pin, ensure the array remains paral-
lel to the pedestal so that the studs slot into the holes on the
pedestal mounting bracket.
Note: The open array mounting bracket is designed so that the array
can only be fitted to the pedestal in the correct orientation.

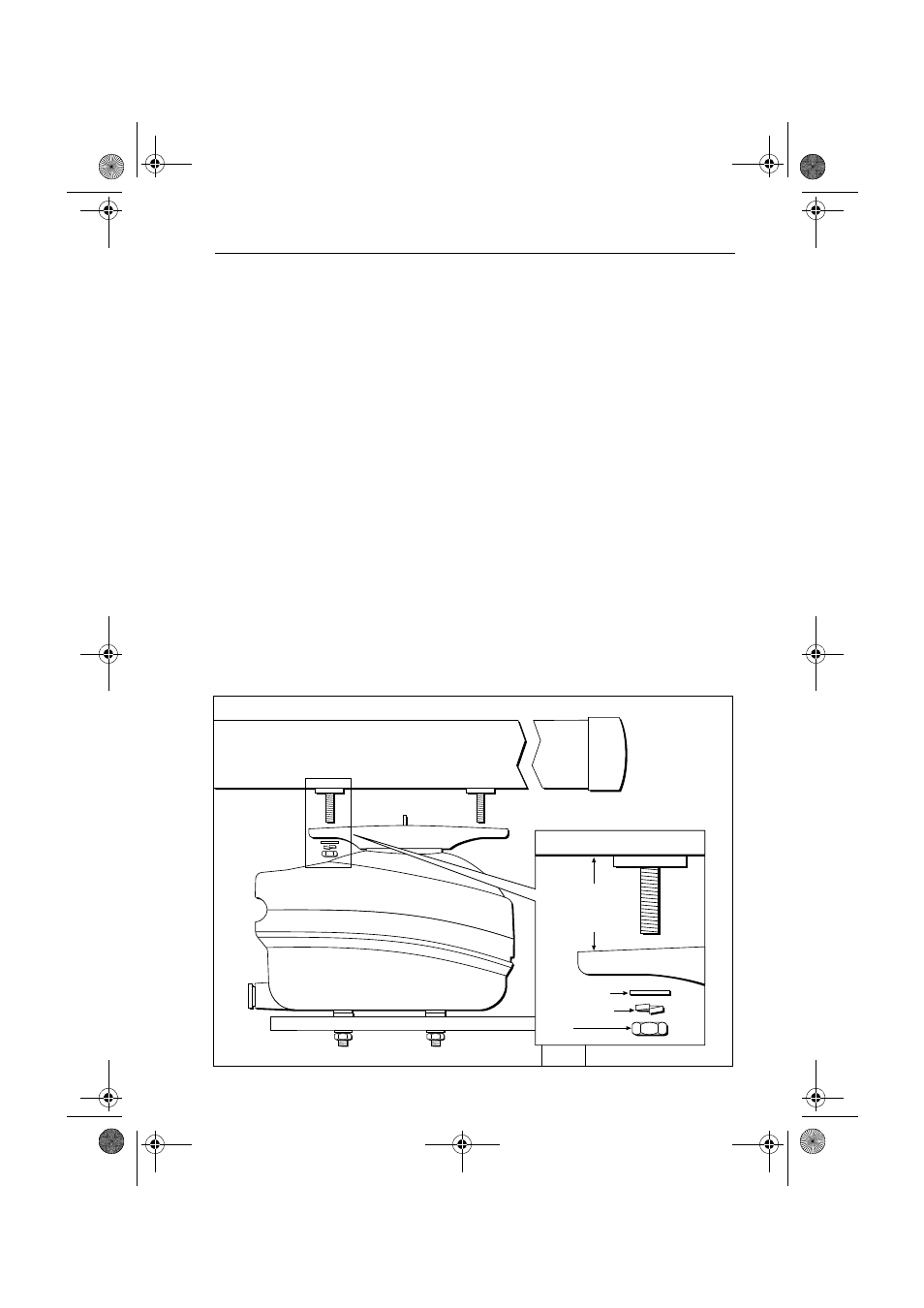

4. Use the four nuts and associated washers supplied to secure the
array to the pedestal as shown in the diagram below.
M8 plain washer
M8 spring washer
M8 nut
Array
Pedestal
D4580-2
