Chapter 2: Installing the Scanner 31
CAUTION:
If any of the wires are incorrectly fitted, the scanner will not
function correctly.

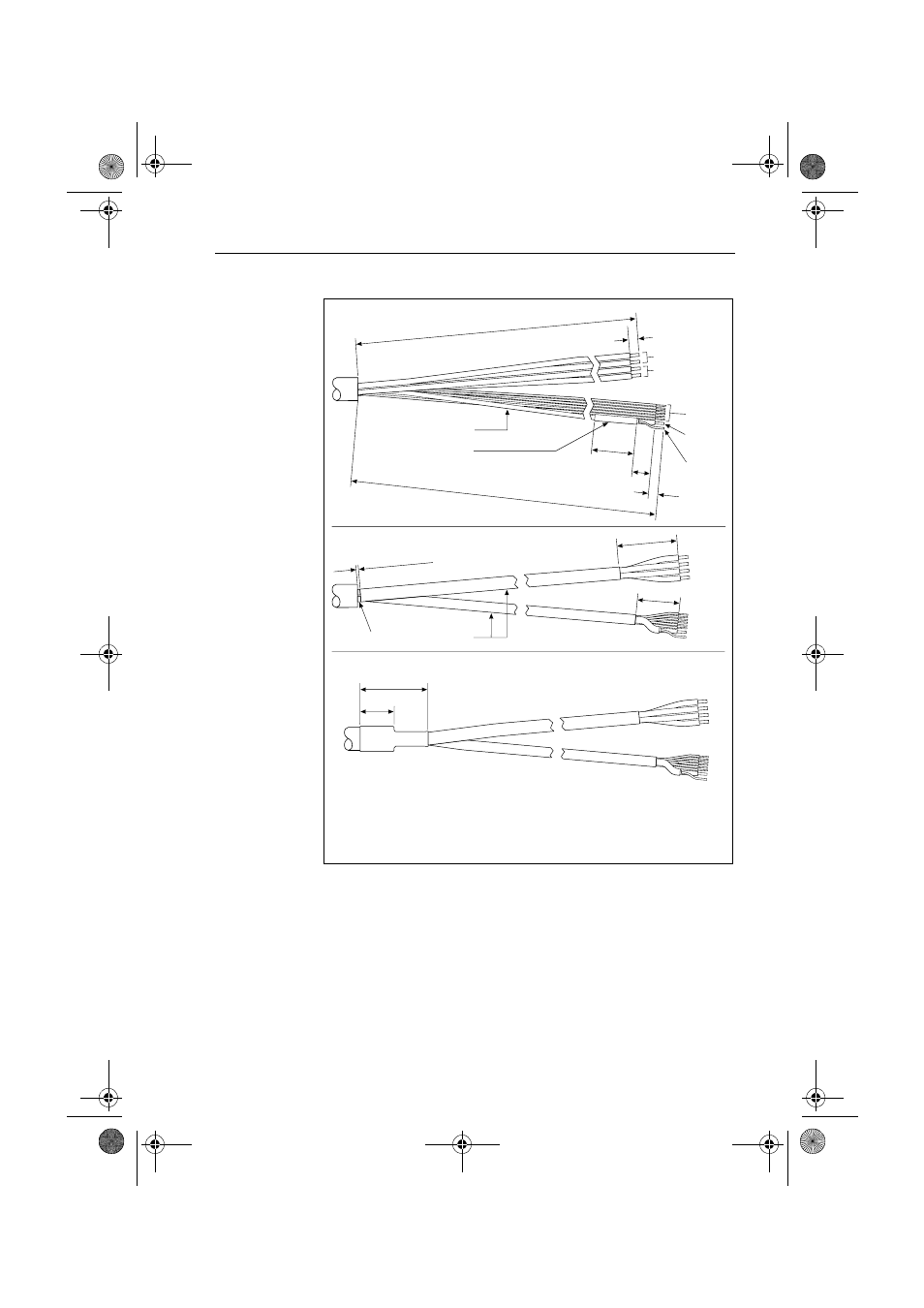

Remove the 8-way plug from the signal connector and fit to the
cable as shown in the following diagram. The terminal clamps are
operated using a screwdriver as shown. Alternatively, you can
leave the connector in position whilst connecting the cable, you
should then remove the connector and visually check each wire
connection.
500mm ± 10mm
500mm ± 10mm
Black power wires
Data wires
(6 off)
Coaxial
signal
Coaxial
screen
Red power wires
25mm
10mm
See Note B
See Note A
5-6mm strip length
5-6mm
strip length
5mm maximum
25mm
See Note C See Note D
35mm
20mm
40mm
1. Preparation of Wires
2. Heat Shrinking of Wires
3. Heat Shrinking of Cable/Wires
Notes
A. Aluminium screen/polyester tape screen to remain.
B. Heat shrink sleeving fitted to keep the aluminium/polyester tape screen from unwinding
from the coaxial signal insulation.
C. The wires must be formed into two bundles with heat-shrink tubing (one containing the
four power wires and the other containing the eight signal wires).
D. The heatshrink shown in step 3 must be fitted to prevent the 'overall screen' from
shorting to base.
D4579-2
