ANTENNA/CABLE INPUT Connect either antenna or cable via coaxial (RF) cable to receive
analog and digital channels through your cable provider. Receive off-air analog and digital
channels via an antenna. Refer to page 5 for more details.
Explanation of Jacks
This section describes the jacks you can use to make connections. There are several
combinations available to connect devices to your TV.
COMPOSITE (VID) INPUT Connect devices with Audio/Video (composite) outputs such
as VCRs, DVD players, satellite receivers, cable boxes, camcorders and video game consoles.
Connect the left and right audio jacks for sound.
• VIDEO Provides composite video connection. The video connector is usually yellow.
• AUDIO-L Provides left audio connection. The left audio connector is usually white.
• AUDIO-R Provides right audio connection. The right audio connector is usually red.
To access the device when using these jacks, press the INPUT button on your remote until
VID appears.
Remember: You cannot use the composite and component connections at the same
time. They share the same AUDIO R/L input jacks.
COMPONENT (CVID) INPUT Connect devices with component (Y Pb Pr) outputs such as
VCRs, DVD players, DVRs, DVD recorders, satellite receivers, cable boxes and video game
consoles. This connection provides optimum picture quality because the video is separated
into three signals. Use the AUDIO L and R jacks from the COMPOSITE INPUT to connect for
sound.
To access the device when using these jacks, press the INPUT button on your remote until
CVID appears.
Refer to page 8 for a detailed explanation of how to connect Y Pb Pr cables to your TV.
AUDIO/VIDEO OUTPUT (Models 24F512T, 20F512T, 20V412T and 20V500T
only) Connect your TV to external devices with inputs, such as VCRs, digital recorders or
secondary monitors. Audio/video cables are used for this connection.
ANTENNA/
CABLE
INPUT
COMPONENT (CVID) INPUT
AUDIO/
VIDEO
OUTPUT
DIGITAL/
ANALOG
COMPOSITE (VID) INPUT
R- AUDIO -L VIDEO

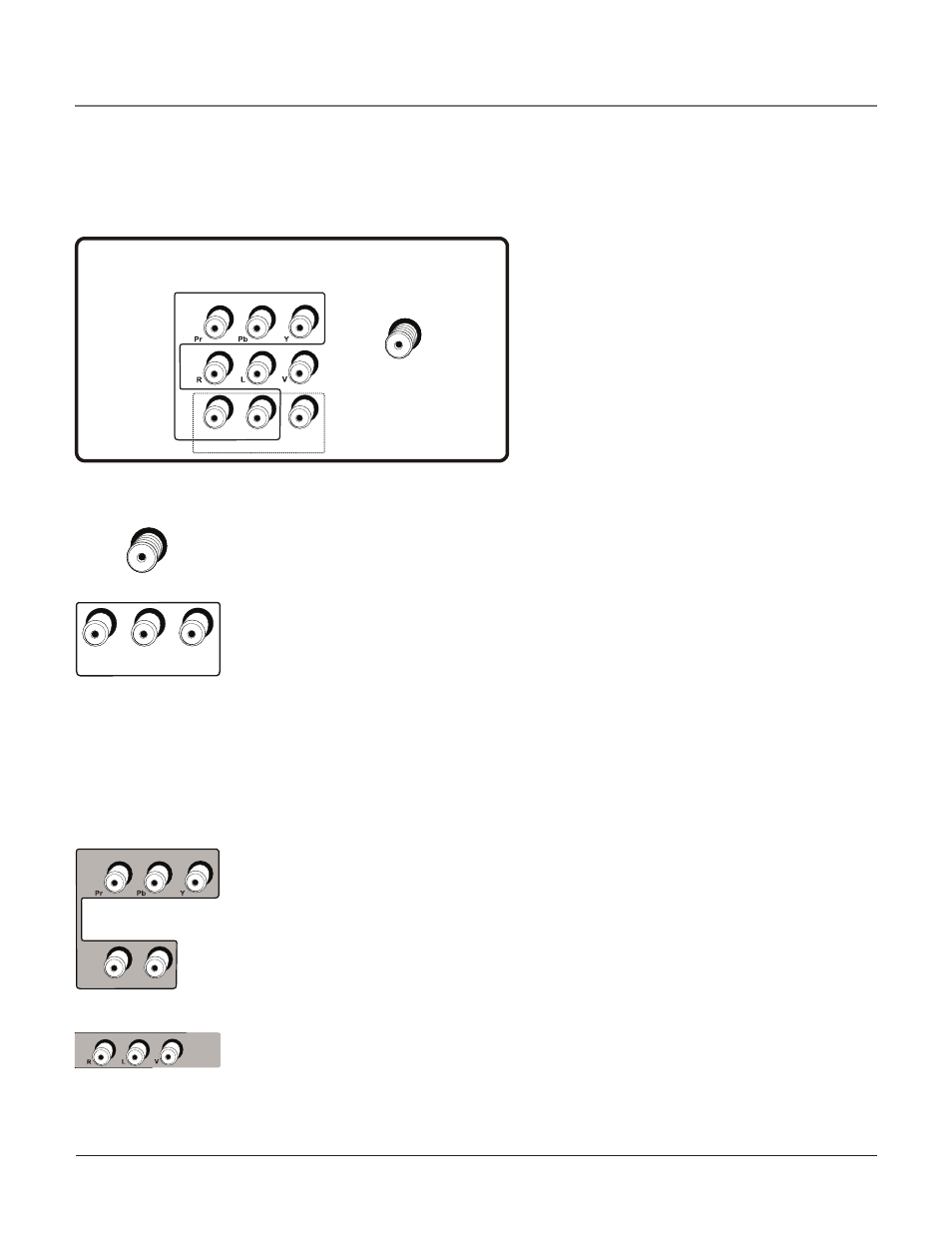

Note: This back panel graphic is for
representation only. Your TV’s back panel
might be different.
ANTENNA/
CABLE
INPUT
COMPONENT (CVID) INPUT
AUDIO/
VIDEO
OUTPUT
DIGITAL/
ANALOG
COMPOSITE (VID) INPUT
R- AUDIO -L VIDEO
COMPOSITE (VID) INPUT
R- AUDIO -L VIDEO
COMPONENT (CVID) INPUT
COMPOSITE (VID) INPUT
R- AUDIO -L
ANTENNA/
CABLE
INPUT
COMPONENT (CVID) INPUT
AUDIO/
VIDEO
OUTPUT
DIGITAL/
ANALOG
COMPOSITE (VID) INPUT
R- AUDIO -L VIDEO
Chapter 1 11
Connections & Setup
