Using the Front/Side Jacks
Connecting the Device
This connection allows you to connect a device such as a video game console, that has
Audio/Video output jacks. Refer to the illustration which uses audio and video cables.
Using the example of a video game console:
1. Connect your cable and/or antenna as described on page 5.
2. Connect your video cable.
Video cables are usually yellow. Connect the Video cable to the VIDEO jack on the
front/side of the TV and the VIDEO jack on the video game console.
3. Connect your audio cables.
Connect the audio (red and white) cables to the R and L AUDIO jacks on the front/
side of the TV and to the audio output jacks on the video game console. Just match
the colors.
Note: Model 13V424T has VIDEO and L AUDIO jacks.

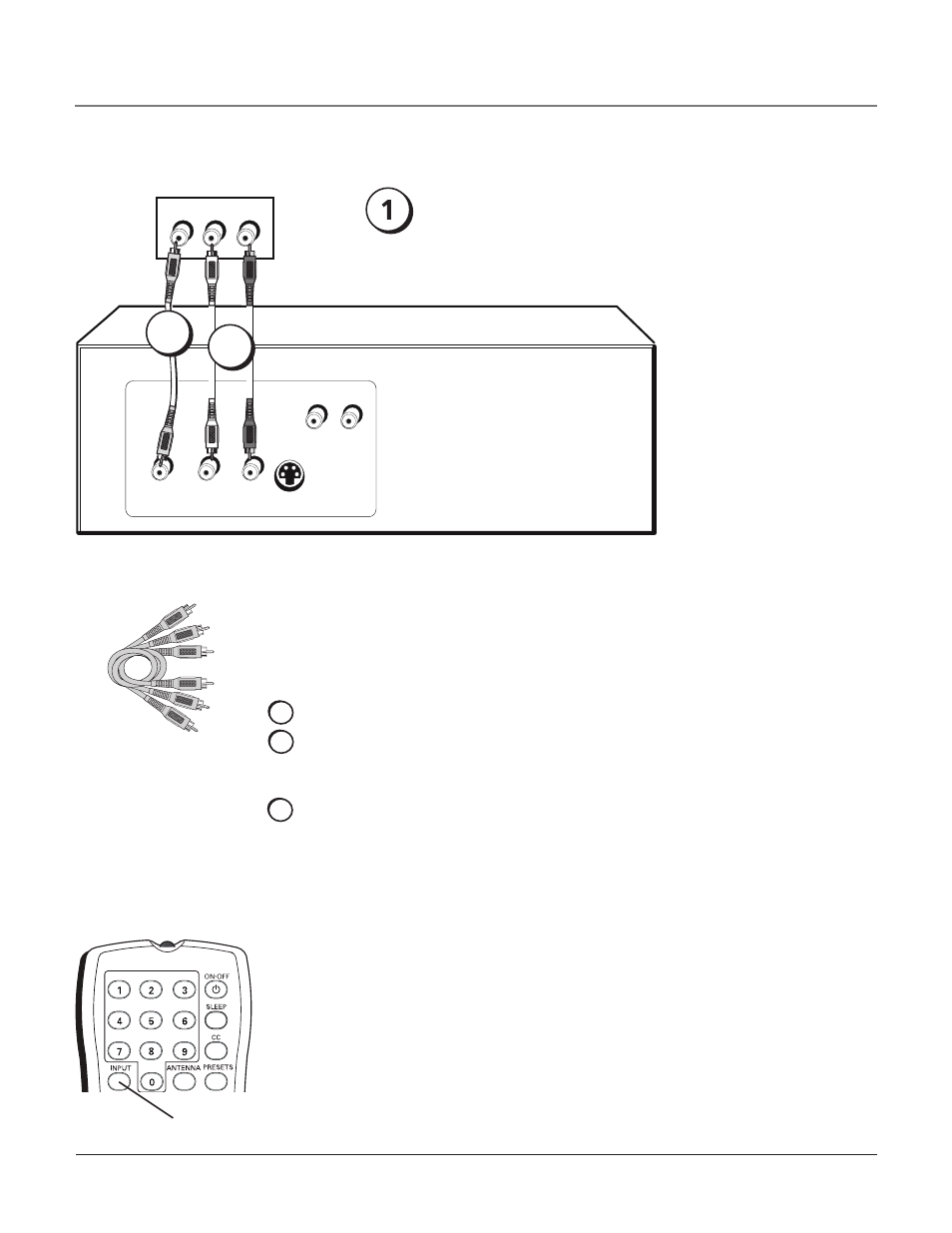

audio/Video cables
Viewing the Picture from the Connected Device
The device in this example, a video game console, is connected to the TV’s video and
audio jacks located on the front/side of the TV. To view the video game console:
1. Turn on the TV and the video game console.
2. Press the INPUT button on the remote control to toggle through the Video Input
Channels until FRNT is displayed in the channel banner.
VIDEO
OUTPUT
S-VIDEO
OUT
L R
AUDIO
L R
AUDIO
L AUDIO R VIDEO
Front/side of TV
2
3
INPUT
button
Video game Console
Note: This front/side
panel graphic is for
representation only.
Your TV’s jacks might be
different. If necessary,
connect antenna
or cable to get a
picture. Go to page
for instructions.
