RCA ANT751 - Manual (Page 3)

Make sure to place the leads of the matching
transformer between the two washers on
each post as shown here.
Finally, tighten the hex nuts to secure the leads.
Step 6: Insert end caps
Insert the plastic end caps in the ends of the
booms as shown here. Use a rubber mallet to
gently tap them into the antenna booms to
secure them.

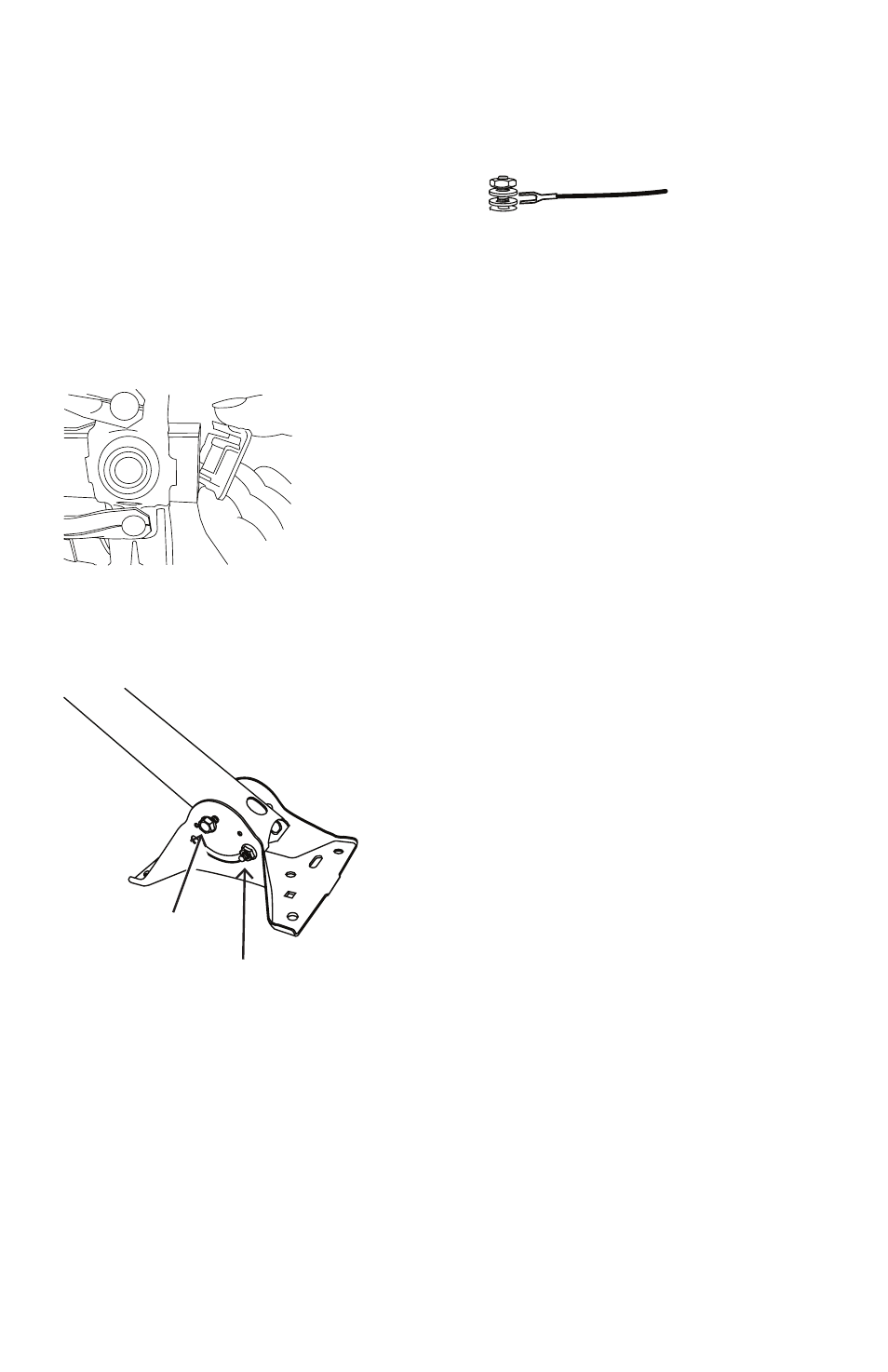

Step 7: Attach the mounting pipe to the foot
Find the end of the mounting pipe with
holes on the sides for screws. Insert
this end into the middle of the foot as
illustrated here. Then insert the 2-1/2”
screw through the foot and pipe as shown.
Screw the 1/4” hex nut onto the end of the
screw to hold the pipe and foot together.
Don’t tighten the nut completely yet.
Find the square holes on either side of
the bottom of the pipe. Raise the pipe
slightly and insert a 5/8” bolt through
these holes and out of the side of the
foot. Install the nuts on the outside
of the foot on the 5/8” bolts to hold
the pipe in place. Don’t tighten the nuts
completely yet.
2 1/2”
screw
Hex nut on
5/8” bolt
