1. Outline


The M3T-DUMMY80 is an accessory tool product which
connects the emulator probe and target system. Its dimensions
are the same as those of an 80-pin 0.8-mm-pitch QFP (20 x 14
mm) IC package (80P6N-A).

2. Package Components (See Figure 1)

(1)

M3T-DUMMY80 main unit

x 1

(2)

Socket main unit

x 1

(3)

Socket frame (for 80P6N-A)

x 2

(4)

User’s manual (This manual)

x 1

(5)

User’s manual (Japanese)

x 1


3. Applicable Sockets


The M3T-DUMMY80 has been tested with the following IC
sockets made by Matsushita Electric Works, Ltd. Be sure to use
them.

Socket main unit + socket frame (1 set):
AXS4803M195C (for 80P6N-A)

Socket frame for repair (200 pieces):
AXS4802M1 (for 80P6N-A)

4. Specifications


Table 1 Specifications

Applicable package

80P6N-A, 80P6N-C

(80-pin 0.8-mm-pitch QFP)

Max. permissible current

200 mA at 5 V

Insertion/removal

iterations of connector

20 times guaranteed

Insulation resistance

100M Ω or more


5. Usage (See Figure 2)


The M3T-DUMMY80 can be used for debugging and onboard
evaluation in common by mounting the socket main unit on the
target board.

(1) For debugging

Mount the socket main unit on the foot pattern of the
target board. And mount the M3T-DUMMY80 and socket
frame on it. Then attach the connector of the emulator.


(2) For onboard evaluation

Mount the socket main unit on the foot pattern of the
target board. Mount an MCU with on-chip flash memory
or one-time PROM on it. Then attach the socket frame on
it.


Before using the M3T-DUMMY80, be sure to read “8.
Precautions” on page 4.


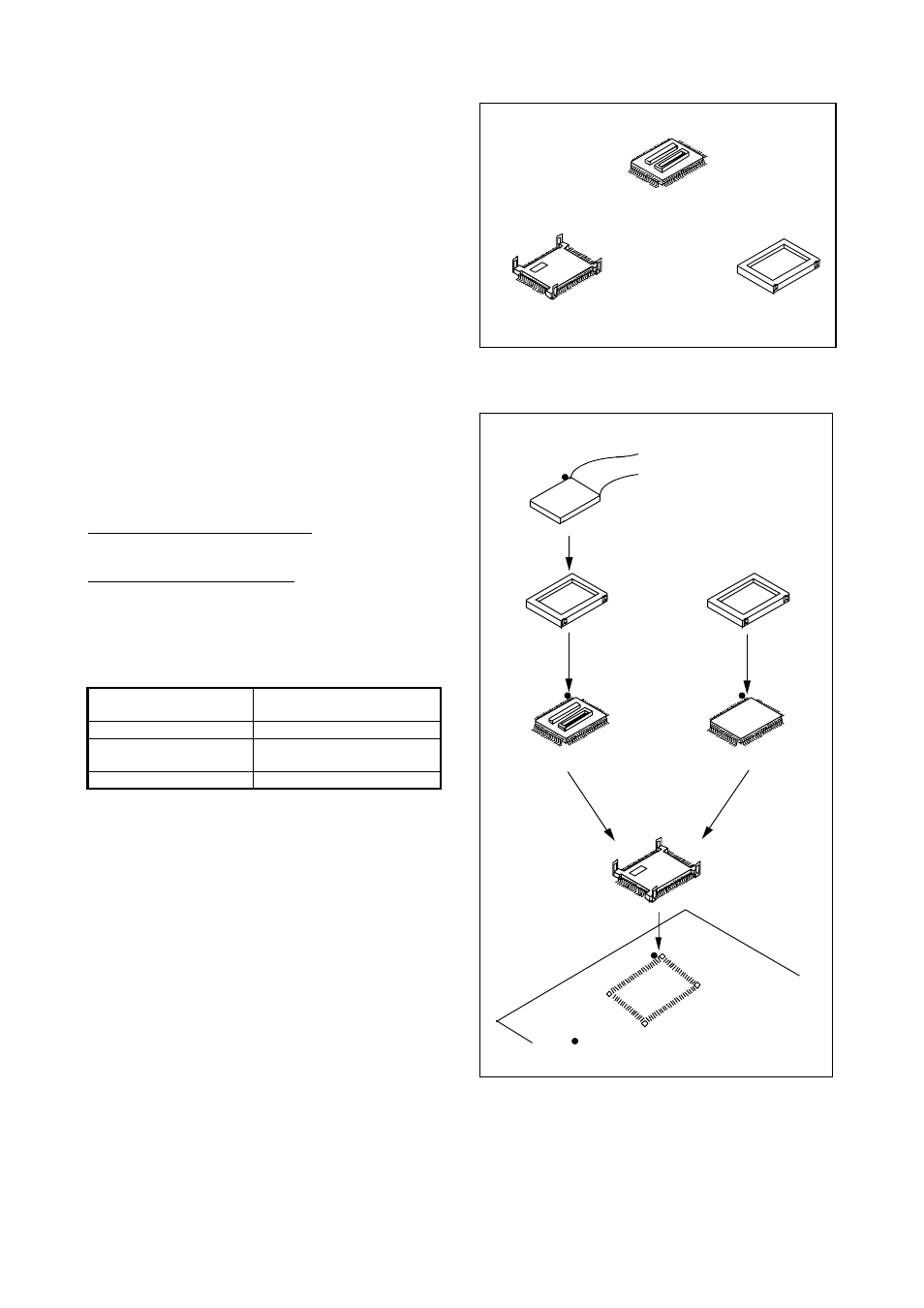

Figure 1 Package components

(3) Figure 2 Usage of the M3T-DUMMY80

(3) Socket frame

(1) M3T-DUMMY80 main unit

(2) Socket main unit

For 80P6N-A, 80P6N-C

(Color: white)

For 80P6N-A

(Color: blue)

Socket frame

M3T-DUMMY80 main unit

MCU (QFP)

Emulator

(1) Debugging

Socket main unit

Foot pattern

: No. 1 pin
Be sure to align the pins.

(2) Onboard evaluation
