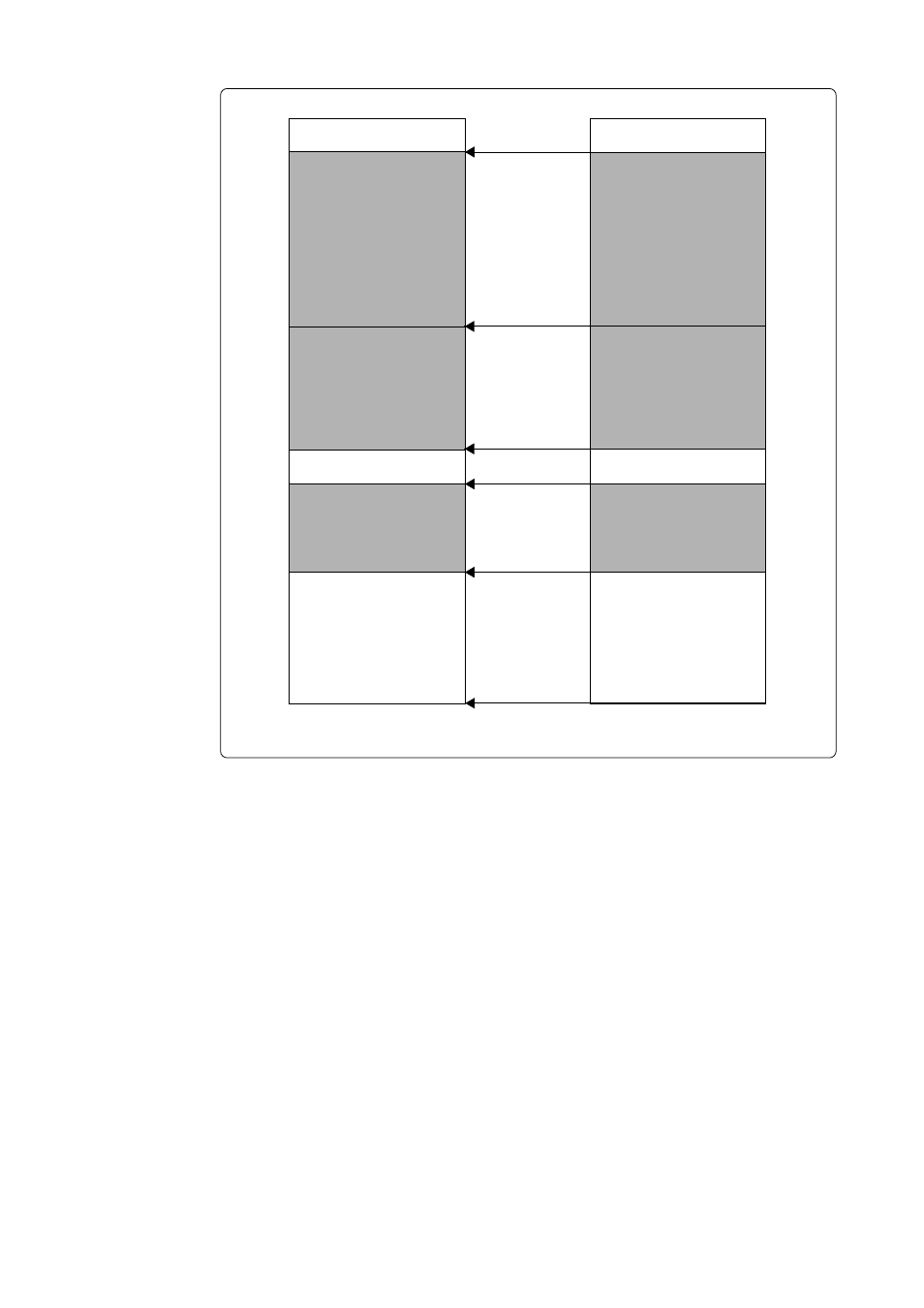

Figure 4.3 Memory map (M37266EE)
PROM programmer MCU
00000
16
1FFFF
16
00000
16
0FFFF
16
10000
16
1FFFF
16
Internal ROM area
(56 KB)
Programming area
Unused area
Programming area
(32 KB)
OSD ROM area
Unused area
Unused area
Programming area
Programming area
123FF
16
123FF
16
12000
16
12000
16
10FFF
16
10FFF
16
0FFFF
16
10000
16
02000
16
02000
16
OSD ROM area
