Venting Arrangements - Horizontal
Terminations
Two 45° elbows = One 90° elbow

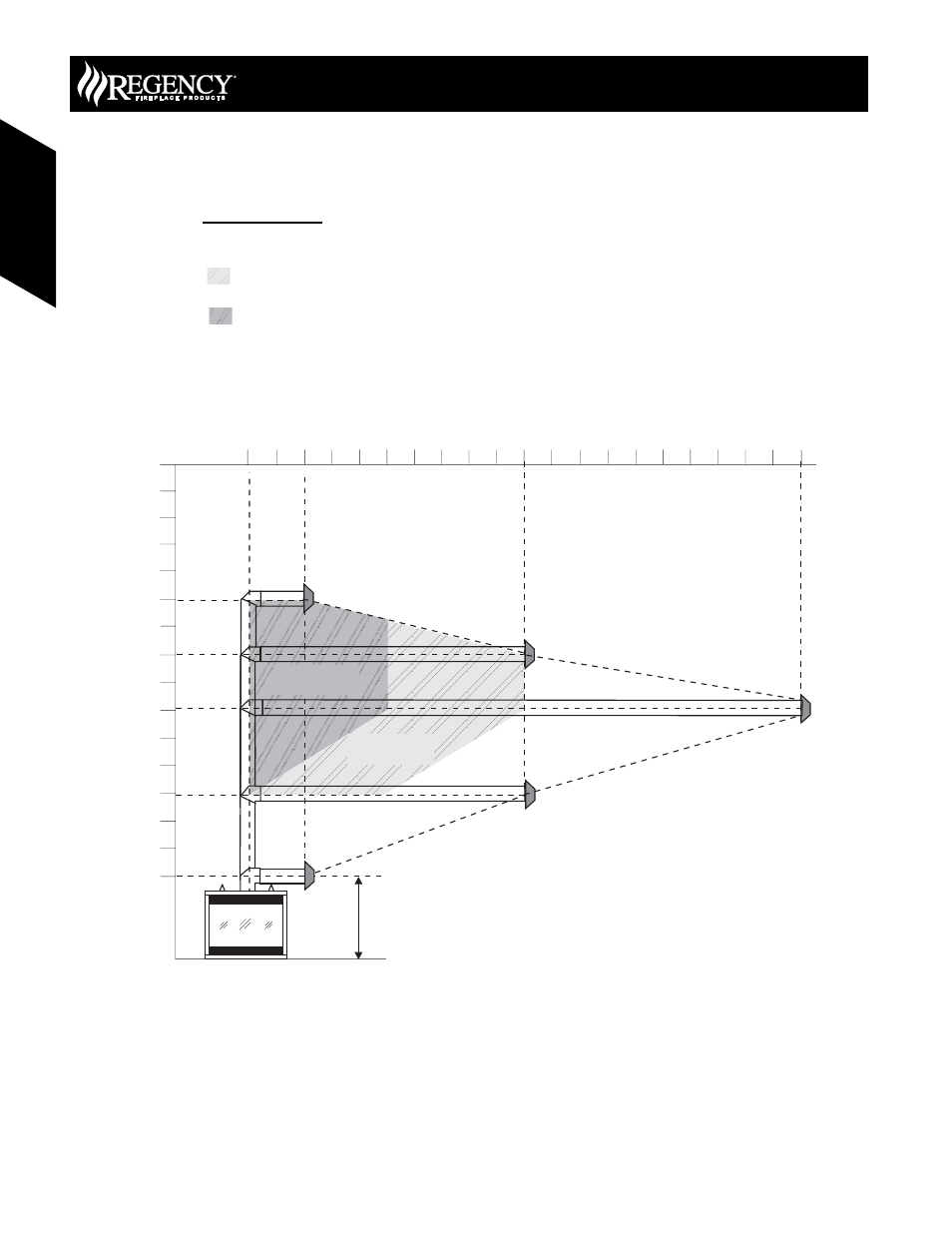

This diagram shows all allowable combinations of vertical runs with
horizontal terminations, using one 90° elbow
The unshaded area in the diagram shows allowable venting
confi gurations with the Vent Restrictor Factory Set.
The lightly shaded area,
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
6 8 2 0 4 10 12 16 18 14 20 26 28 22 24 30
, in the diagram shows allowable venting
confi gurations with the Vent Restrictor on Set 1.
The darker shaded area,
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
6 8 2 0 4 10 12 16 18 14 20 26 28 22 24 30
, in the diagram shows allowable venting
confi gurations with the Vent Restrictor on Set 2.
Note: Must use optional rigid pipe adapter (Part # 770-994) when
using Rigid Pipe.
• Maintain clearances to combustibles.
• Horizontal vent must be supported every 3 feet.
• Minimum of 1’ pipe section between any elbows.
• Firestops are required at each fl oor level and whenever passing
through a wall.
A vent guard may be required as per local codes, refer to page 11 for
“Exterior Vent Termination Locations”.
Note: FPI Direct Vent System (Flex) is only approved for horizontal
terminations.
Please refer to Page 11 (Exterior Vent Terminations)
for additional guidelines on vent locations.
