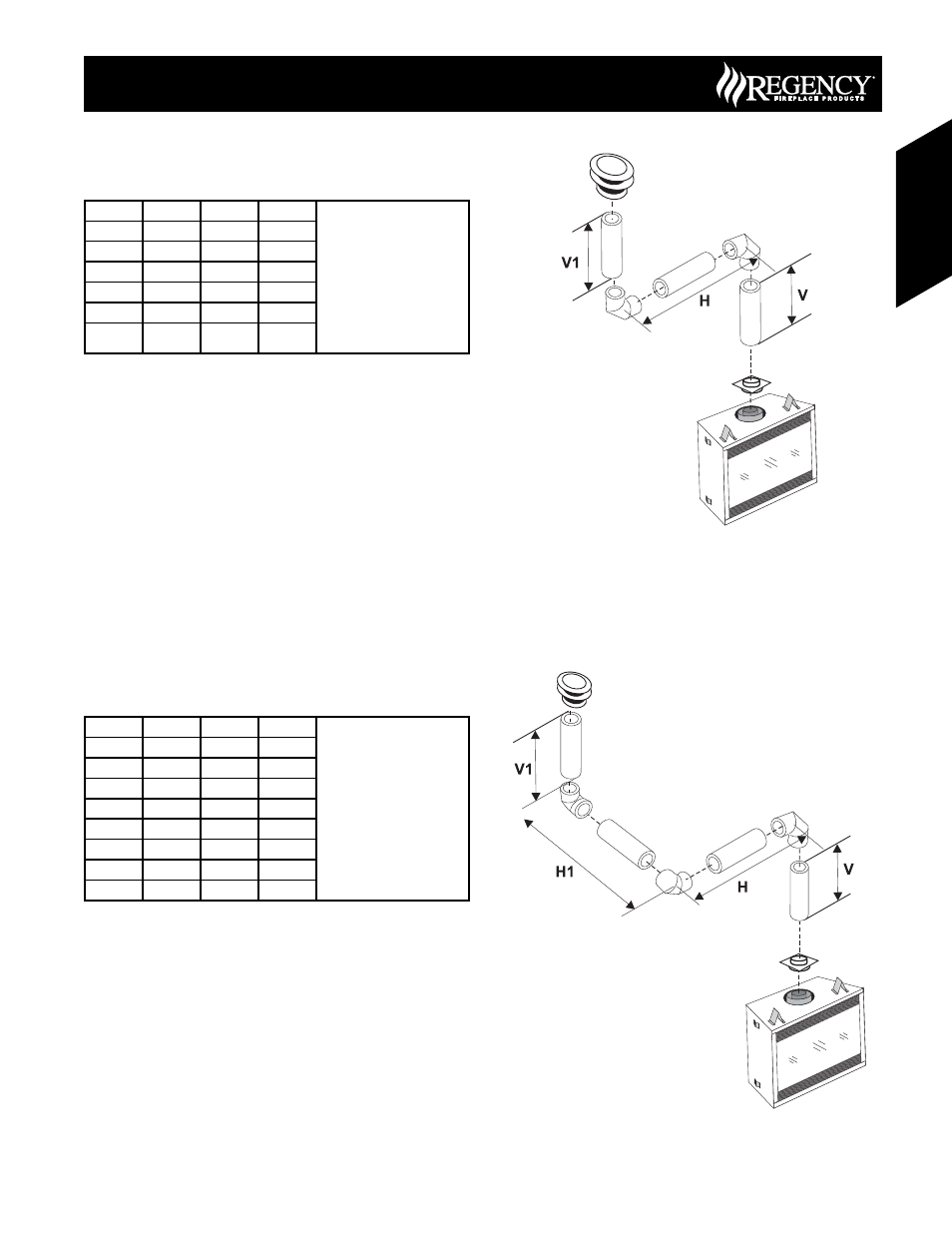

Vertical Venting
with Two (2) 90° Elbows
Two 45° elbows = One 90° elbow
Option
V
H
V+ V1
Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1’ pipe section
between any elbows.
When the total vertical
exceeds total horizontal by
2x then the vent restrictor
must be set to 1.
A)
0’ Min.
2’ Max.
1’ Min.
B)
1’ Min.
4’ Max.
2’ Min.
C)
2’ Min.
5’ Max.
3’ Min.
D)
3’ Min.
6’ Max.
4’ Min.
E)
4’ Min.
7’ Max.
5’ Min.
F)
5’ Min.
8’ Max.
6’ Min.
Vertical Venting
with Three (3) 90° Elbows
Two 45° elbows = One 90° elbow
Option
V
H + H1
V+ V1
Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1’ pipe section
between any elbows.
When the total vertical
exceeds total horizontal by
3x then the vent restrictor
must be set to 1.
A)
0’ Min.
2’ Max.
3’ Min.
B)
1’ Min.
2’ Max.
3’ Min.
C)
2’ Min.
3’ Max.
4’ Min.
D)
3’ Min.
4’ Max.
6’ Min.
E)
4’ Min.
5’ Max.
7’ Min.
F)
5’ Min.
6’ Max.
8’ Min.
G)
6’ Min.
7’ Max.
9’ Min.
H)
7’ Min.
8’ Max.
10’ Min.
P40 Gas Fireplace
49
June 2007 Regency Product Specifi cations Book
