5.2 On-board Evaluation
(1) Mount the NQPACK144SD-ND on the user system
(2) Mount the M32176FxxFP on the NQPACK144SD-ND.
(3) Mount the HQPACK144SD on the NQPACK144SD-ND.
(1)
(2)
M32176FxxFP
NQPACK144SD-ND
HQPACK144SD
(separately available)
(3)
144-pin 0.5mm pitch
(144P6Q-A) foot pattern
: No.1 pin
Be sure to match the position of No. 1 pin of
the foot pattern and each part.

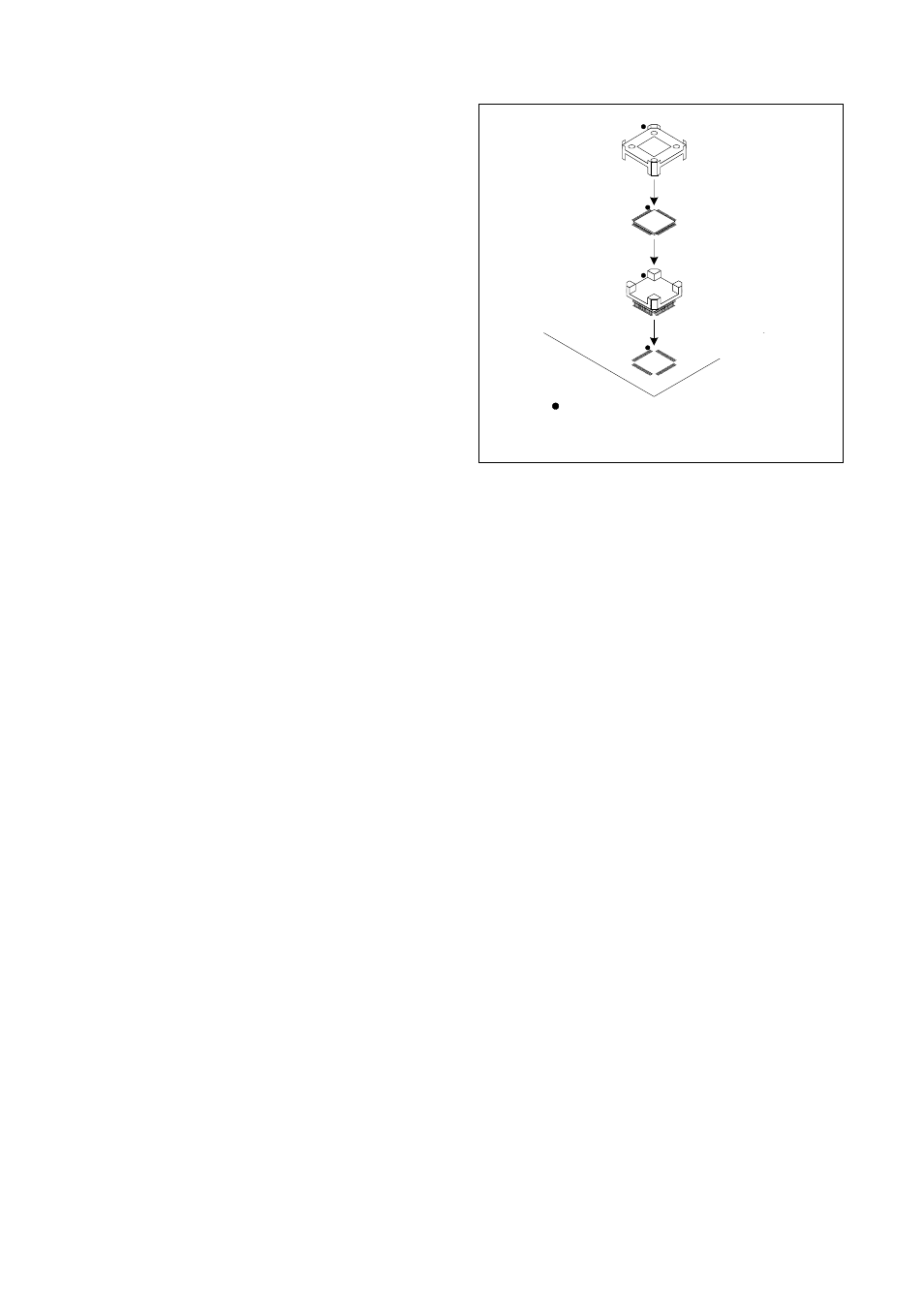

Figure 5.2 Connection Procedure (2)
