1. Outline
The M3T-F160-100NSD is a converter board for connecting
the 160-core flexible cable FLX160 to a foot pattern for
100-pin 0.5-mm-pitch LQFP (100P6Q-A).
2. Package Components (See Figure 1)
(1) M3T-F160-100NSD converter board .......................... 1 pc.
(2) YQPACK100SD (made by Tokyo Eletech Corporation) ................ 1 pc.
(3) NQPACK100SD-ND
(made by Tokyo Eletech Corporation)
....... 1 pc.
(4) YQ-GUIDE’s
(made by Tokyo Eletech Corporation)
..................4 pcs.
(5) M3T-F160-100NSD User's Manual (This manual)
3. Specifications
Table 1 Specifications
Applicable package
100P6Q-A
(100-pin 0.5-mm-pitch LQFP)
Insertion/removal
iterations of connector
50 times guaranteed
4. Usage (See Figure 2)
The M3T-F160-100NSD can be used for debugging and
board-mounted evaluation in common by mounting the
NQPACK100SD-ND on the target board.
(1) For debugging
Mount the NQPACK100SD-ND on the foot pattern of the
target board and attach the YQPACK100SD on it. And
connect the probe of the emulation pod to the upper
connector of the M3T-F160-100NSD. Then connect the
YQPACK100SD and the M3T-F160-100NSD.
(2) For onboard evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HQPACK100SD (separately available) in
that order on the NQPACK100SD-ND on the target board.
Before using the M3T-F160-100NSD, be sure to read "7.
Precautions" on page 4.
M3T-F160-100NSD
YQ-GUIDE (x4)
YQPACK100SD
NQPACK100SD-ND

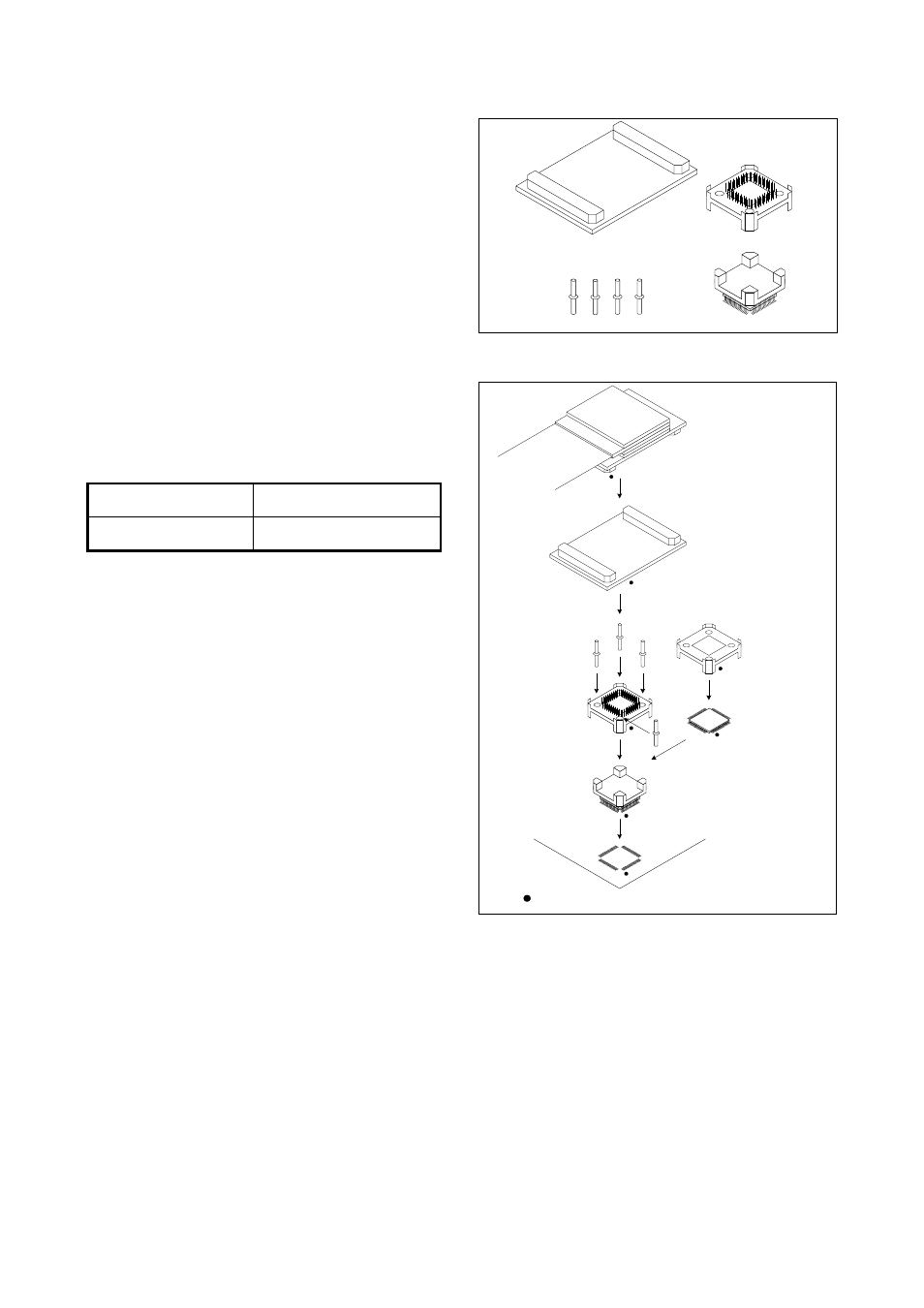

Figure 1 Package components of the M3T-F160-100NSD
FLX160-PRB
or
M3xxxxTx-EPB
(1) For debugging
M3T-F160-100NSD
YQ-GUIDE (x4)
YQPACK100SD
NQPACK100SD-ND
100-pin 0.5-mm-pitch
(100P6Q-A) foot pattern
(2) For on-board evaluation
HQPACK100SD
(separately available)
MCU with on-chip flash
memory or one-time PROM
: No. 1 pin
Be sure to align the pins.
Figure 2 Usage of the M3T-F160-100NSD
