7
UHF/
VHF
VIDEO
(MONO)
L
R
AUDIO
OUT
LINE1

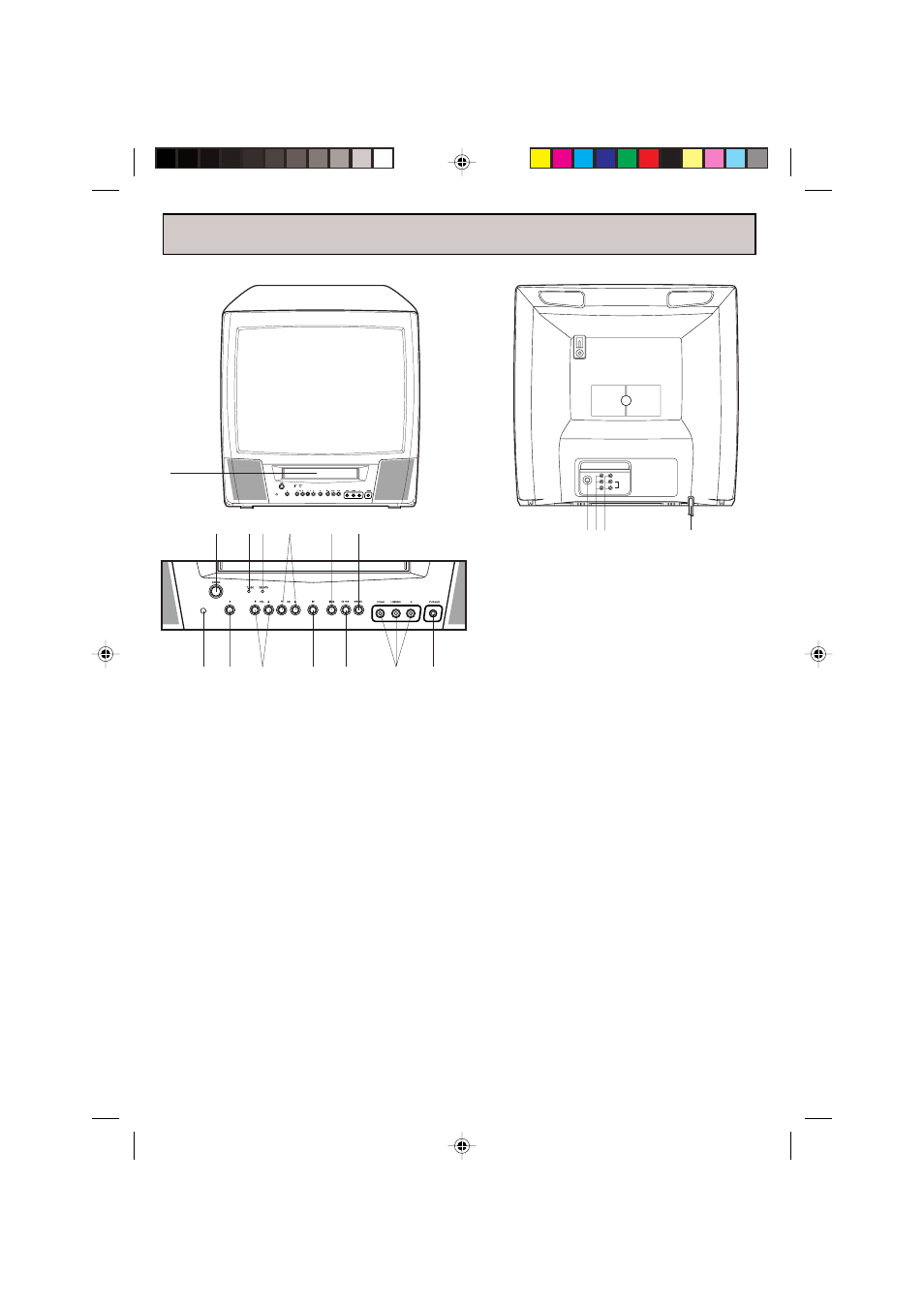

LOCATION OF CONTROLS
DESCRIPTION OF CONTROLS
11.
1
1
1
1
1
(PLAY) Button - Press to play a prerecorded tape.
12.
8
8
8
8
8
(Reverse) Button - In the Stop mode, this
button rapidly winds the tape backwards. In the
Play mode, this button activates reverse search.
13. AUDIO (L/R)/VIDEO IN (LINE 2) Jacks - Audio and
video signal cables from an external source can be
connected here.
14. PHONES Jack - Plug monaural headphones or an
earphone with an 1/8" miniplug into this jack for
private listening.
REAR:
15. UHF/VHF Antenna Jack - Connect the 75 ohm
coaxial cable from the antenna or Cable TV service
to this jack.
16. AUDIO (L/R)/VIDEO OUT Jacks - Used to output
audio and video signals to a TV, amplifier or VCR.
17. AUDIO (L/R)/VIDEO IN (LINE 1) Jacks - Audio and
video signal cables from an external source can be
connected here.
18. AC Power Cord - Connect to a 120V, 60Hz outlet.
FRONT:
1. Cassette Loading Slot - To insert or remove a
video tape.
2. POWER Button - Press to turn the TV/VCR on or off.
3. T.REC Indicator - Lights when the unit is in the
Timer Record Mode.
4. REC/OTR Indicator - Lights up when the TV/VCR
is recording.
5. CH
▲
/
▼
Buttons - Press to select a channel for
viewing or recording.
6.
3
3
3
3
3
/
5
5
5
5
5
(STOP/EJECT) Button - Press once to stop the
tape in any mode. Press again to eject the tape.
7.
9
9
9
9
9
(Forward) Button - In the Stop mode,
this button rapidly winds the tape forward. In the
Play mode, this button activates forward search.
8. Remote Sensor - Signals from the Remote Control
are received here.
9. REC/OTR Button - Press once to start normal
recording. Additional presses activate One-touch
Timer Recording.
10. VOL
▲
/
▼
Buttons - Press to raise or lower the
level of the sound.
FRONT
REAR
15
18
16 17
2
4
3
5
6
7
10
8
11
12
13
14
1
9
