13

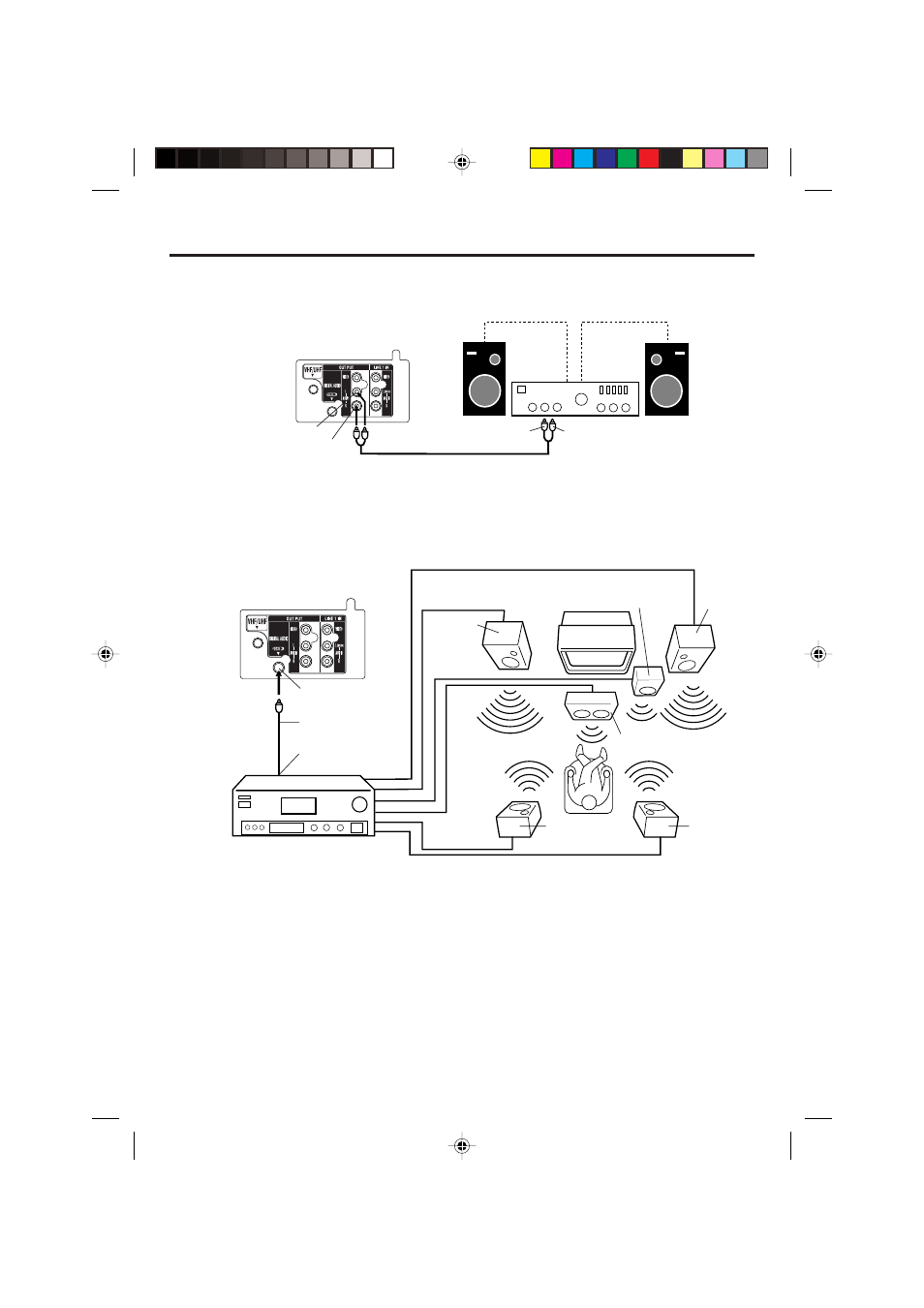

Using an Audio Amplifier
Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with a built-in digital surround sound as follows, you can enjoy the various audio
systems including Dolby Digital Surround audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, DTS decoder, MPEG decoder or etc as
shown below.
*
*
Connections to other equipment
The exact arrangement you use to interconnect various video and audio components to the unit is dependent
on the model and features of each component. Check the Owner's Manual provided with each component for
the location of video and audio inputs and outputs.
To Audio (L) Input To Audio (R) Input
AUDIO cord (not supplied)
Amplifier
Rear of the unit
Audio (R) Output
Audio (L) Output
NOTES:
•
•
When you make the connections above, do not set DOLBY DIGITAL to DOLBY DIGITAL, MPEG to MPEG to ON
on the AV Amplifier. If you do, a loud noise will suddenly come out from the speakers, affecting your ears or
causing the speakers to be damaged.
Some DTS decoders which do not support DVD-DTS interface may not work properly with the unit.
Coaxial digital cord
(not supplied)
AV Amplifier with built-in digital surround
decoder as listed above
Center Speaker
Front
Speaker
(Left)
Front
Speaker
(Right)
Subwoofer
Surround
Speaker (Left) Surround
Speaker
(Right)
Coaxial Digital
Audio Output
To Coaxial Digital
Audio Input
Rear of the unit
Unit
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby
Laboratories.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
