4.4 Precautions When Opening and Closing the IC Socket
When opening and closing the IC socket to insert the MCU, hold the adapter horizontally. Otherwise
the inside of the IC socket may become damaged and cause an electrical insulation failure. Figure 4.3
shows in diagrammatic form the opening and closing of the IC socket.

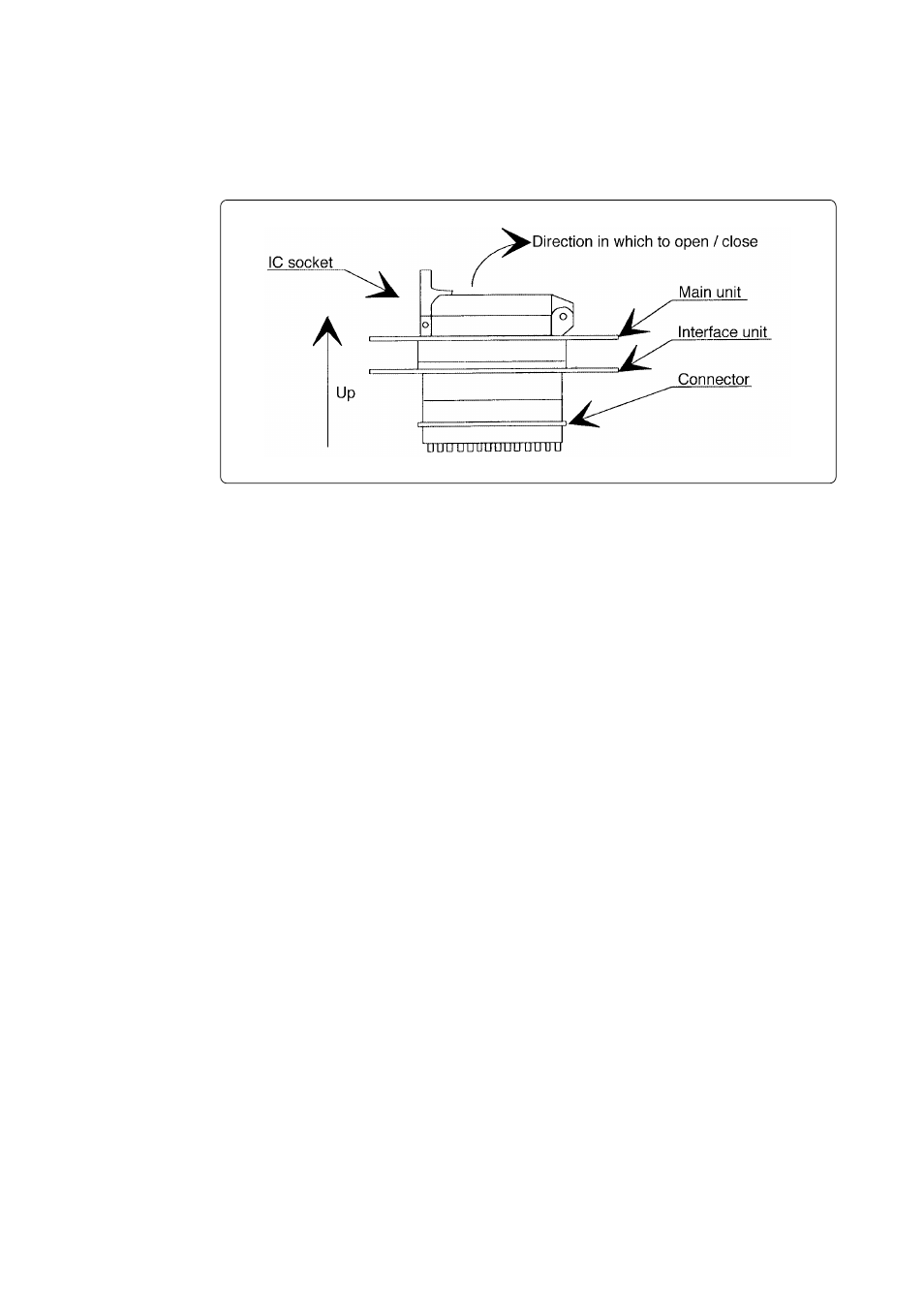

Figure 4.3 Opening and closing the IC socket
4.5 Precautions When Handling the Adapter
Do not touch the connector in the IC socket and the pins on the PROM programmer connector ,
otherwise it cause an electrical insulation failure because of dirt.
When not using, attach the connector pins of this product to the conductive sponge as it was shipped
from the factory.
Side view
