Connections & Setup
22 Chapter 1
Tip
Inputs 1 and 3 can be used as either component
video (Y PB PR ) inputs or composite video
(Y/Video) inputs.
INPUT 1
COMPONENT/COMPOSITE
Y/VIDEO
P B
P R
L
R
SVGA INPUT
AUDIO VGA/SVGA/XGA
WIRED
REMOTE
CONTROL
(IR)
CABLE
INPUT
ANTENNA
INPUT
For Factory
use only
INPUT 2
COMPOSITE
VIDEO
L
R
INPUT 1
COMPONENT/COMPOSITE
Y/VIDEO
P B
P R
L
R
S-VIDEO
L
R
DIGITAL
AUDIO
OUTPUT
VIDEO
L
R
Y/VIDEO
P B
P R
L
R
S-VIDEO
INPUT 3
COMPONENT/COMPOSITE
INPUT 4
COMPOSITE
FIXED/VARIABLE
AUDIO OUTPUT
HDMI 1 INPUT HDMI 2 INPUT
(OPTICAL)
CableCARD™

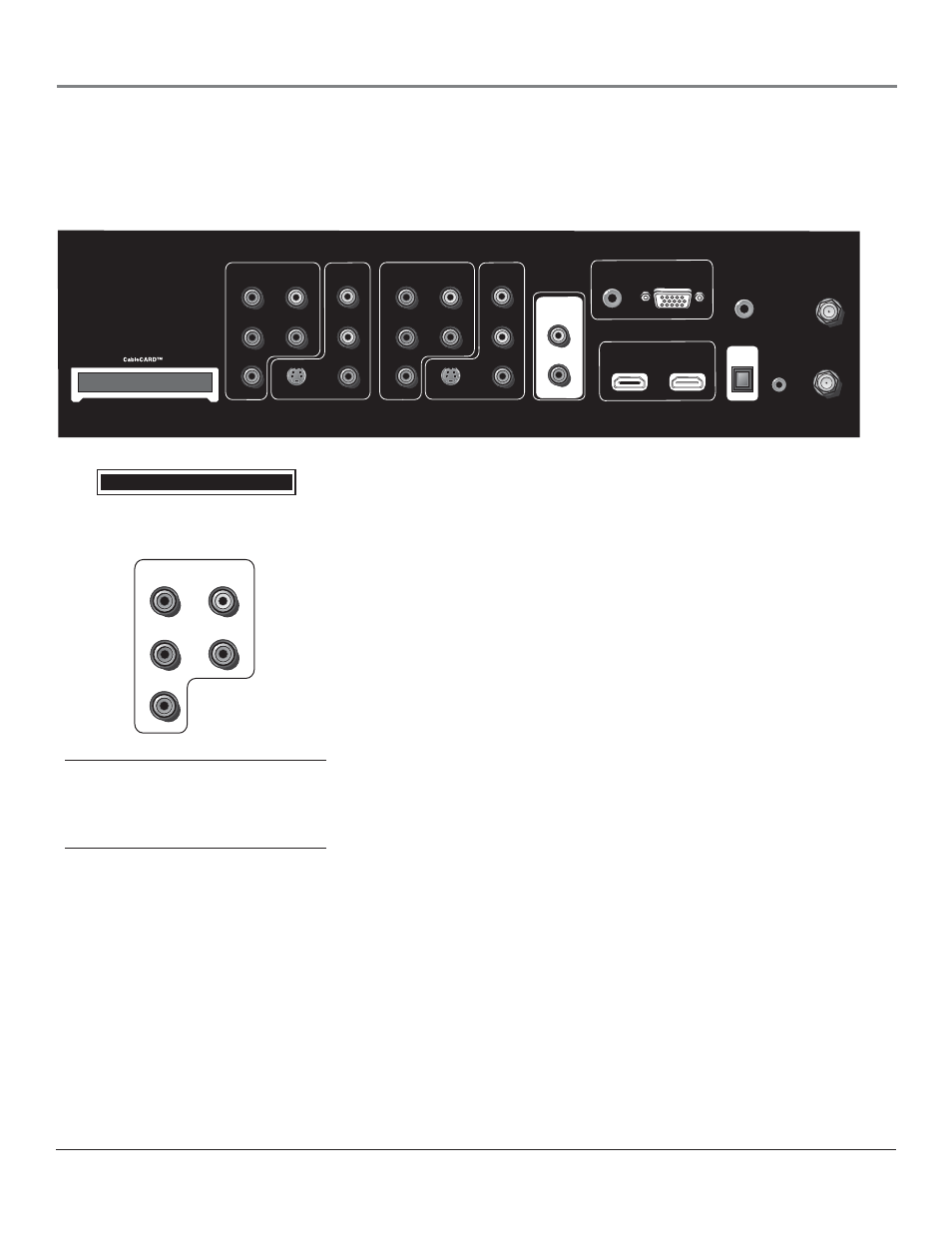

Explanation of Jacks
The diagrams below illustrate jacks found on the back of the TV. When connecting cables, be sure to
connect corresponding outputs and inputs (video input into video output, right audio input into right audio
output, etc.).
CableCARD Allows you to use a digital cable television card to receive digital cable
services, including premium and HDTV cable channels, without the need for a set-top
box. Go to page 10 for information on using the CableCARD slot.
INPUT 1 and 3 COMPONENT/COMPOSITE INPUTS Provides connection to
an (analog) video device with either composite or component outputs such as a VCR or
DVD player.
• R Audio provides right audio connection and connector is usually red.
• L Audio provides left audio connection and connector is usually white.
• Y/Video P
B
P
R
Unlike a single video input, component (Y P
B
P
R
) video maintains
the video signal as three separate parts through these three jacks. To ensure maximum
picture quality, use three video cables or component video cables for the Y P
B
P
R
connections. Accepts 480i, 480p, 720p, and 1080i signals. If you’re connecting to a
device with a Video jack instead, you can still use the Y/Video jack.
Note: Also, remember to connect the left and right audio cables because the Y, Pb, Pr
cables carry only the picture signal, not the sound.
INPUT 3 COMPONENT/COMPOSITE INPUT Provides connection to an
additional optional video device, such as a DVD player or satellite receiver. The jacks are
the same as described above for INPUT 1.
