Connections & Setup
Chapter 1 11
Jacks Used Cables Needed Go to...
Component video pages 12-13
pages 14-15 Audio/Video
S-Video
pages 16-17 HDMI
OR
HDMI
Y Pb Pr
Audio R and L
Video
Audio R and L
HDMI™
INPUT 1
COMPONENT/COMPOSITE
Y/VIDEO
P B
P R
L
R
INPUT 2
COMPOSITE
VIDEO
L
R S-VIDEO
HDMI, the HDMI logo, and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
HDMI/DVI™
adapter
Audio
Audio

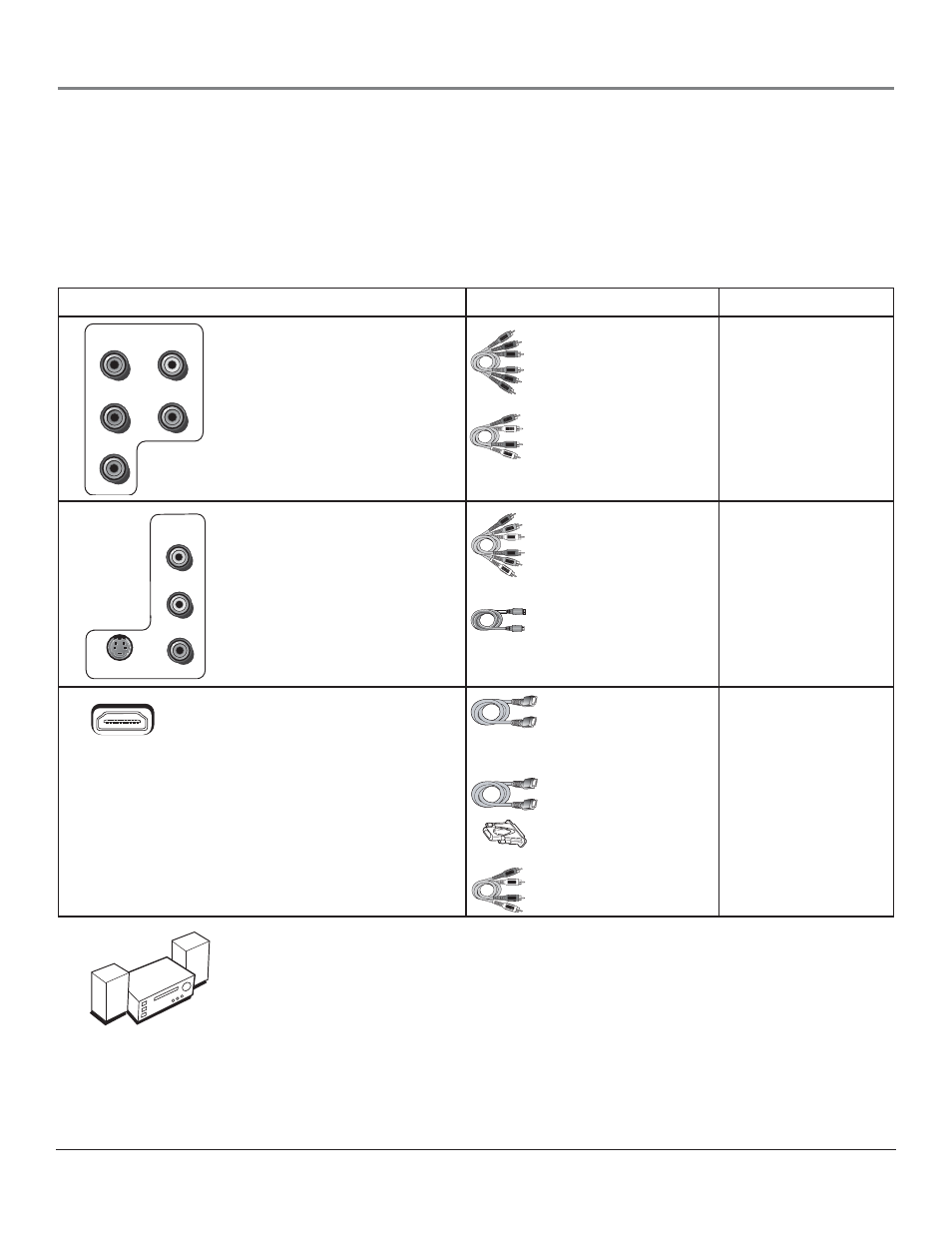

Choose Your Connection
There are several ways to connect your HDTV, depending on the components you want to connect and the quality of the signal you want
to achieve. The HDMI and component jacks are considered excellent; S-Video is very good; composite jacks are good, while connecting
components to the Antenna or Cable input is fair.
Please use the following chart to determine which connection is best for you. Proceed to the appropriate page and connect your TV.
Connecting an optional audio receiver:
After you connect your TV (choose an option above), go to page 18 for general information about
connecting an audio/video receiver.
