Raymarine L365 User Manual
Page 12

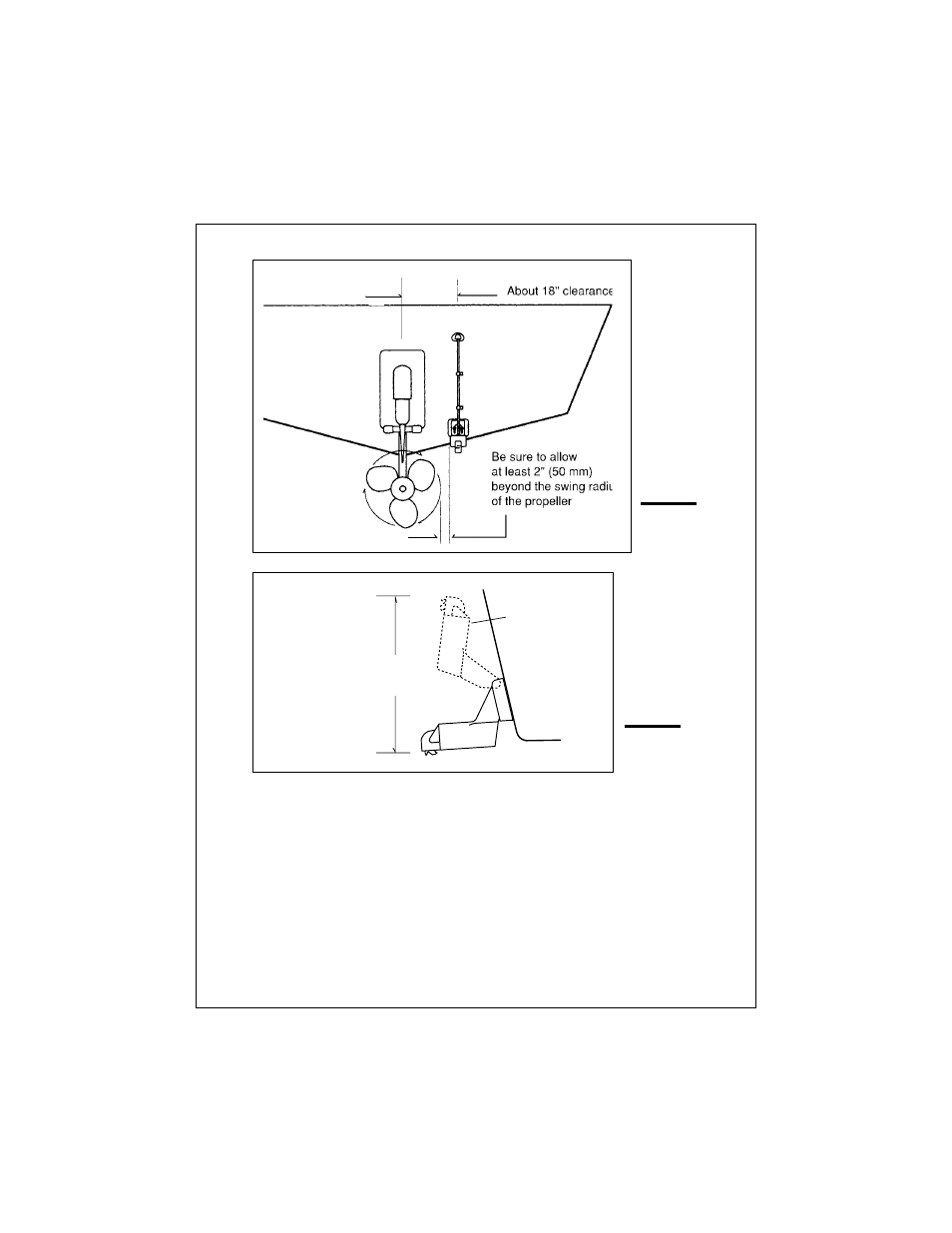

7
Fig. 2-3
Transducer
Mounted on
Transom
Installation
Transducer in
released position
10"
(254 mm)
Allow a clearance
of at least 10
inches (254 mm)
Fig. 2-4
Transducer
Bracket,
Side View
propeller from damaging the transducer when it is turned. After
installation, check the clearance by turning the wheel so the propeller
swings toward the transducer. There should always be a 2” (50 mm)
clearance.
•
If your boat has twin propellers (outboard or inboard-outboard), place
the transducer near the centerline of the boat.
•
Do not mount the transducer behind any hull fittings, intakes, or other
parts which extend from the hull. These may cause turbulence or air
bubbles.
