R0E530650CFK10 User’s

Manual

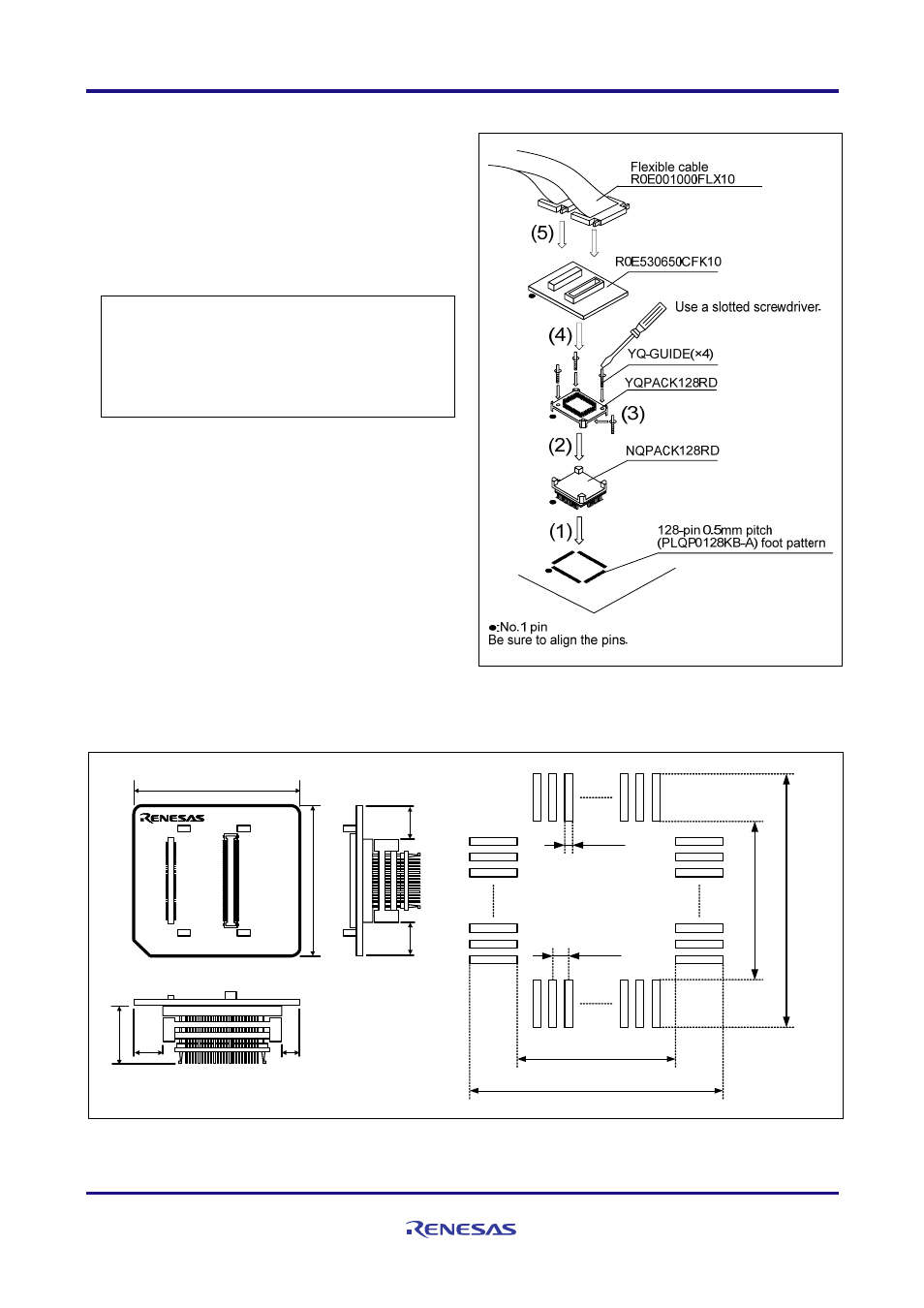

5. Connection Procedure

(See Figure 3)

REJ10J1903-0200 Rev.2.00

Page 2 of 4

Apr 16, 2010


The procedure for connecting the R0E530650CFK10 is shown
below.

(1) Mount the NQPACK128RD on the user system.

(2) Attach the YQPACK128RD on the NQPACK128RD.

(3) Secure the four corners of the YQPACK128RD with the

YQ-GUIDEs.

Do NOT use the screws included with the

YQPACK128RD for fixing the YQPACK128RD.

Do NOT use the screwdriver included with the

NQPACK128RD for fixing the YQ-GUIDEs. That is

used only for the HQPACK128RD.

(4) Mount the R0E530650CFK10 on the YQPACK128RD.

(5) Attach the flexible cable R0E001000FLX10 of the

emulator to the R0E530650CFK10.

Figure 3 Connection procedure of the R0E530650CFK10

6. External Dimensions and a Sample Foot Pattern

R0E530650CFK10

REV.A

CN1

1

50

51

100

CN2

1

50

51

100

MADE IN JAPAN

38

.00

42.00

13

.10

17

.10

19.10

23.10

0.50

0.25

Unit : mm

16.50

7.50

4.50

7.00

7.0

0

Figure 4 External dimensions and a sample foot pattern of the R0E530650CFK10
