24

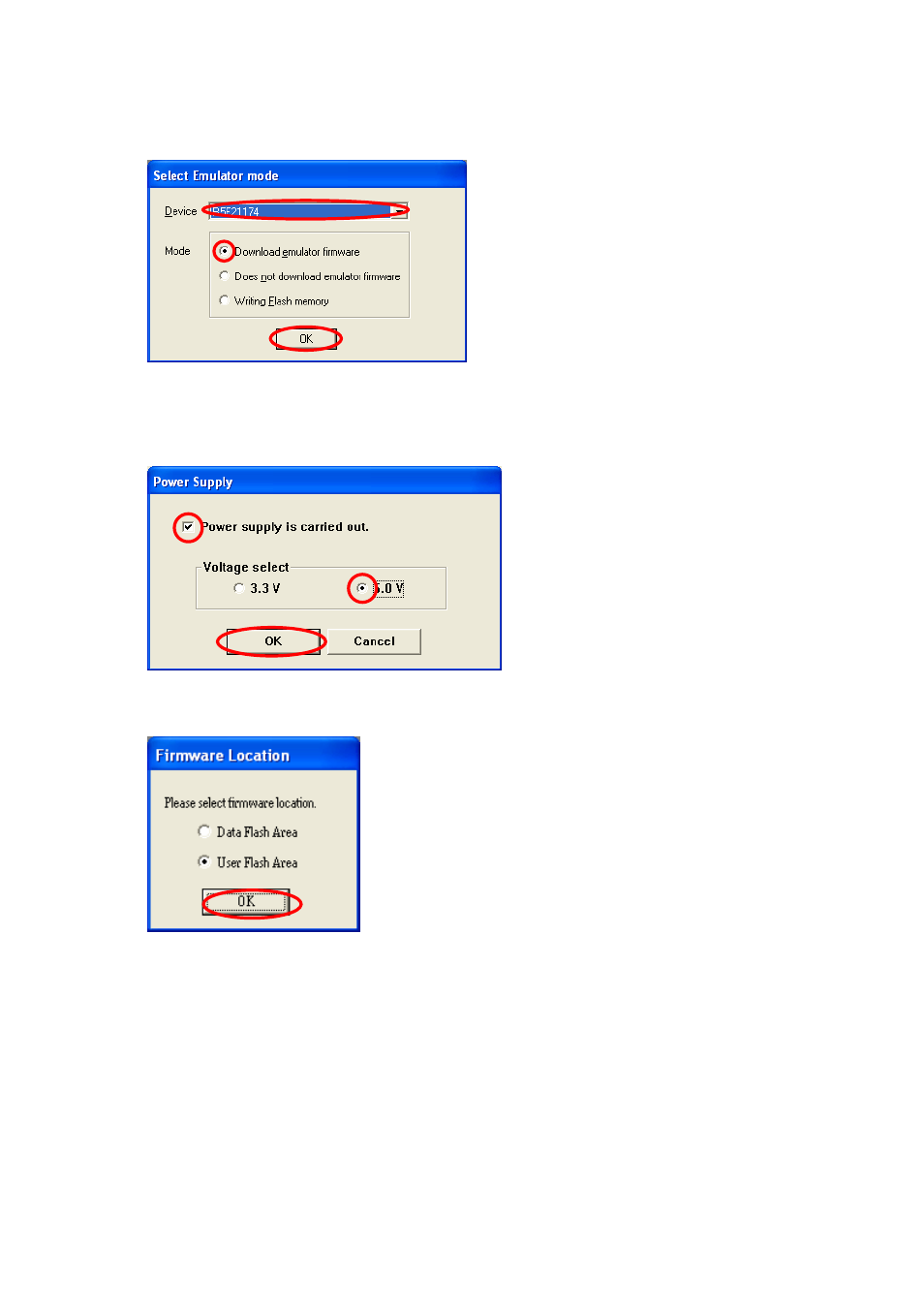

(4) Select “R5F21174” for Device and put a check into “Download emulator firmware” for Mode. Click
“OK”.
(5) When 5V power supply is performed from E8, put a check into “Power supply is carried out”. Select
5.0V and click “OK”.
(6) Select location to download a firmware and click “OK”.
(8) If clicking “Build” of menu - “All build” and compile.
The installation is completed above.
5) Execute a program
(1) Download a program
Click “Debug” - “Download” - “ad_onkai.x30”.
(2) Reset a CPU
Reset a CPU before executing a program. Click “Debug” - “Reset a CPU”.
