2. Introduction
The PCA7438F-64A and PCA7438H-64A are PROM programming adapters for 8-bit 38000 Series
38C1 Group MCUs. These adapters are tools that can be used to write a program into internal PROM
of MCUs using a commercially available PROM programmer.
This manual describes the specifications and the operation of PCA7438F-64A/PCA7438H-64A.
Figure 2.1 shows the external view and the constituent parts of them.

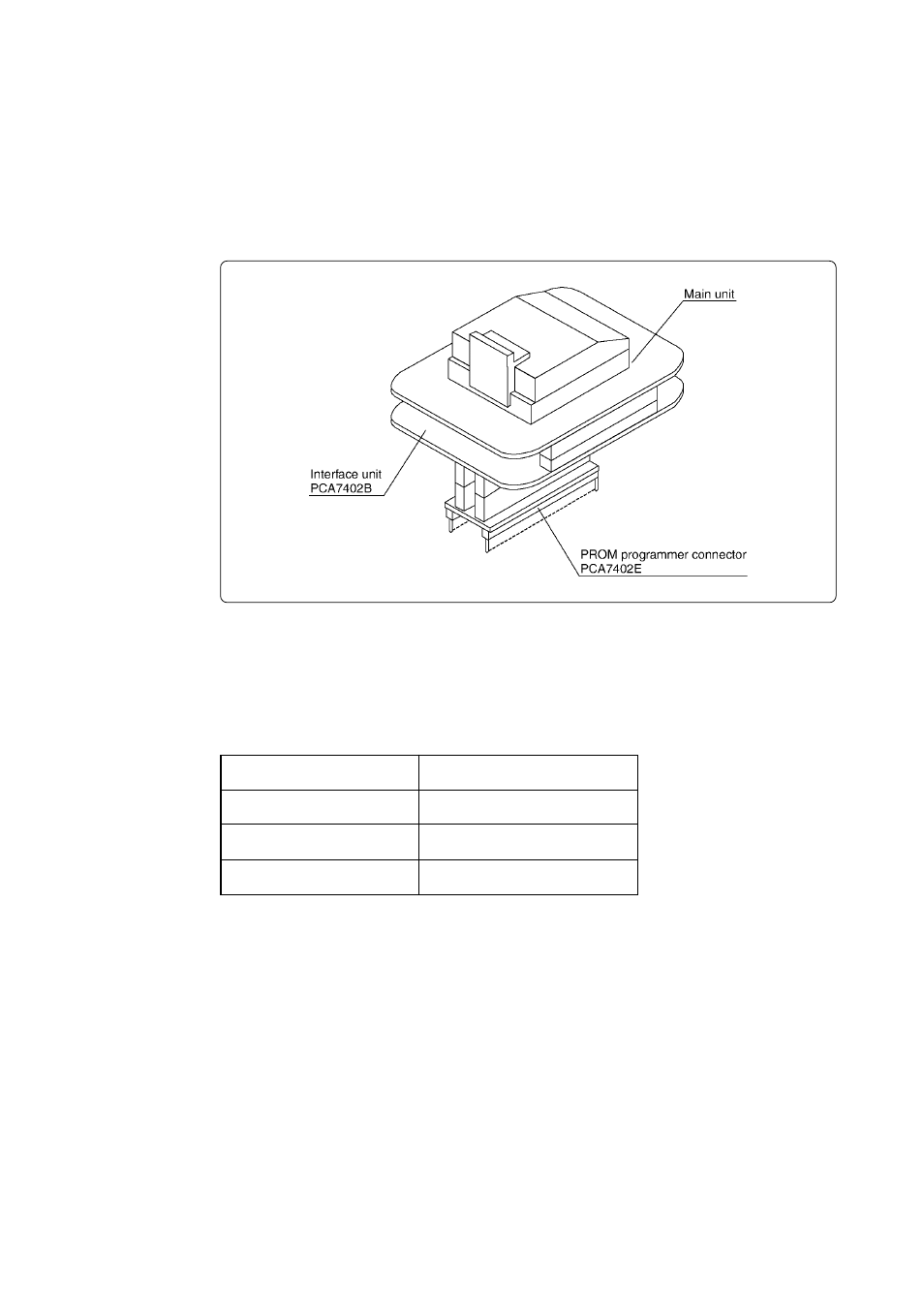

Figure 2.1 External view of PCA7438F-64A/PCA7438H-64A and their constituent parts
2.1 Things to Check When Unpacking
PCA7438F-64A/PCA7438H-64A consist of the following items. Check to see that it contains all of
the components shown in Table 2.1.
Table 2.1 Contents of PCA7438F-64A/PCA7438H-64A
If any part is missing or there is any doubt about your product package, contact your local distributor.
Main unit
Interface unit
PROM programer connector
User's Manual
PCA7438F-64A/PCA7438H-64A
PCA7402B
PCA7402E (32-pin)
This user's manual
