4.2 Attaching the Adapter to a PROM Programmer
As shown in Figure 4.1, attach the pin No. 1 of the PCA7402E PROM programmer connector
(standard-pitch 32-pin pin-header mounted) to the pin No. 1 of the IC socket of the PROM
programmer.
Be careful when attaching the adapter because incorrect insertion can cause fatal
damage to the MCU.

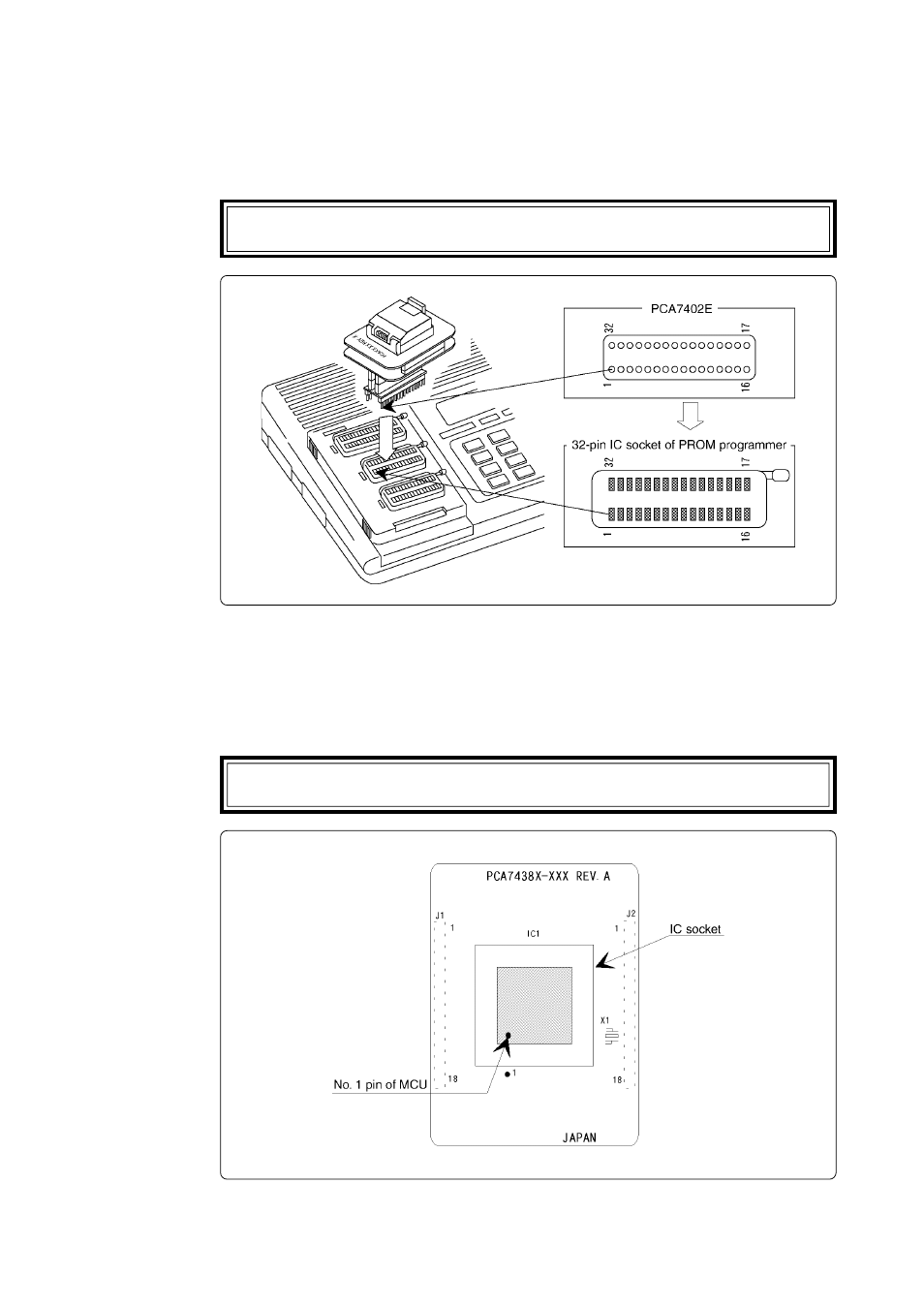

Figure 4.1 Attaching the adapter to the PROM programmer
4.3 Inserting an MCU into the Programming Adapter
As shown in Figure 4.2, insert the MCU into the IC socket, with the pin No. 1 of the MCU matched
to the pin No. 1 of the IC socket on the PCA7438F-64A/PCA7438H-64A.
Be careful when inserting the MCU because incorrect insertion can cause fatal
damage to the MCU.
Top view
Figure 4.2 Inserting an MCU
