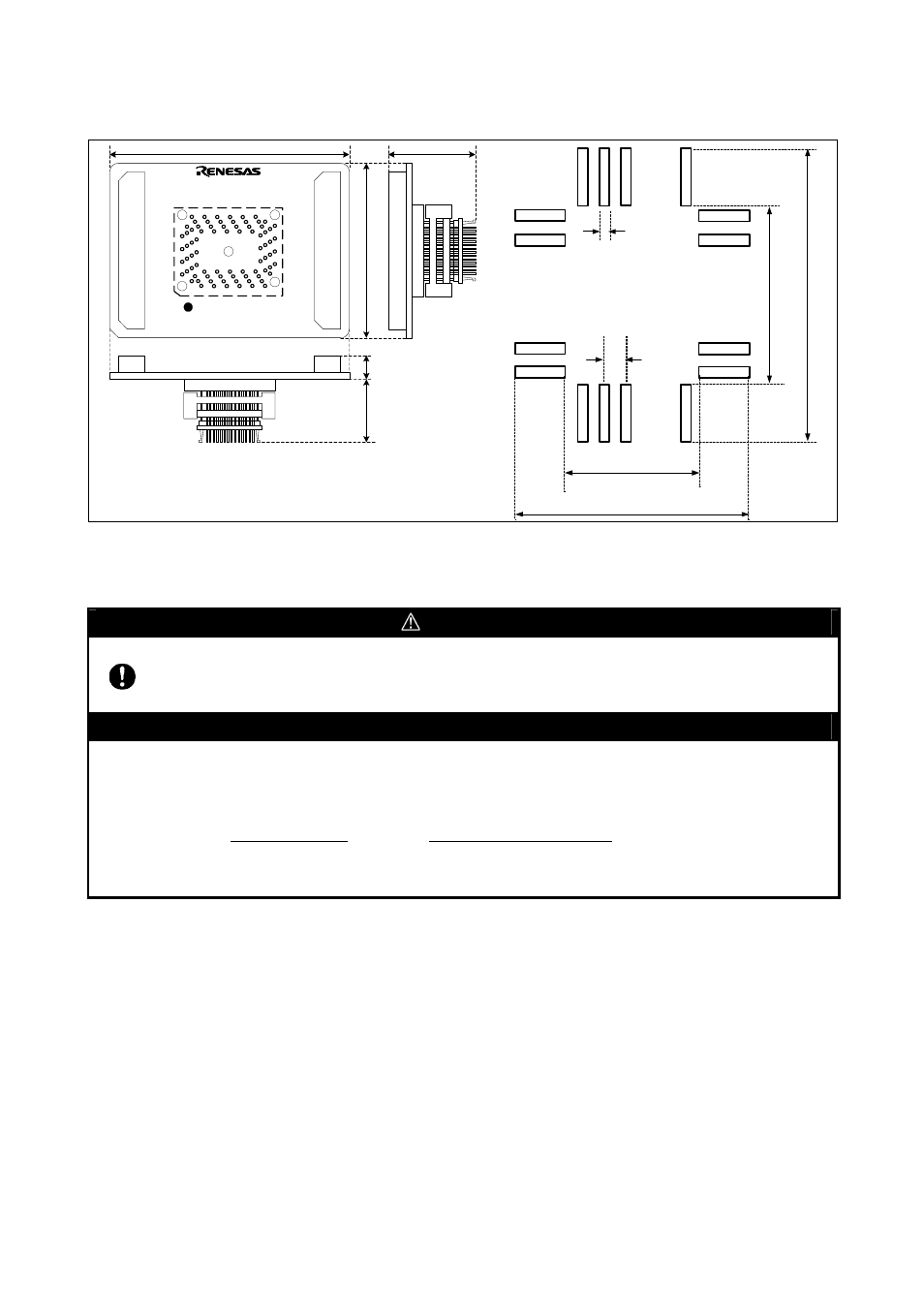

5. External Dimensions and a Sample Foot Pattern

55.0

25.0

40

.0

5.

3

19

.7

40

a

40

b

1a

1b

40

25

24

1

41

64

65

80

40

a

40

b

1a

1b

CN1

CN2

0.5

0.8

18.3

13.8

24.

3

19.

8

M3T-F160-80NRA

REV.A

MADE IN JAPAN

I C1

Figure 3 External dimensions and a sample foot pattern of the M3T-F160-80NRA

6. Precautions

CAUTION

Caution to Be Taken for This Product:

z When connecting the YQPACK080RA, be sure to use the included YQ-GUIDE's.
z Do NOT use the screws included with the YQPACK080RA for connecting the YQPACK080RA.

IMPORTANT

Notes on This Product:

z We cannot accept any request for repair.
z For purchasing the NQPACK080RA, YQPACK080RA, HQPACK080RA168 and HQPACK080RA160, contact the

following:

Tokyo Eletech Corporation

http://www.tetc.co.jp/e_tet.htm

Daimaru

Kogyo

Ltd.

http://www.daimarukogyo.co.jp/

z For inquiries about the product or the contents of this manual, contact your local distributor.

Renesas Tools Homepage

http://www.renesas.com/en/tools
