WIRING
WARNING: Hazard of Shock and Fire
•
Always use proper wire, wire connectors
and fuse/circuit breaker. See Specification
Chart.
• Secure wire properly.
• Do not connect appliances to toilet circuit.
• Make sure power is off before proceeding.
• Use proper wire terminals for all wire
connections.
1. Determine proper wire size by measuring
distance from:
•
Power Source to push-button to toilet
motor and back to power source.
• Remote pump units - also include distance
from power source for remote pump to
remote pump and back. Same wire must
be used for both lower base and remote
pump.
2. Select proper wire and fuse/circuit breaker size
from Specifications on Installation page.
3. Install fuse/circuit breaker in positive line at
source.
4. Connect positive wire from fuse/circuit
breaker to Push Button Switch.
5. Connect wire from Push Button Switch to
orange wire on motor(s).
NOTE: Pressurized Freshwater Models; connect
wire from Push Button Switch to orange wire on
motor and from Push Button Switch to one of the
wires on water solenoid valve. The water solenoid
valve is not polarity sensitive.
6. Connect wire from battery negative or power
source ground buss to black wire (negative)
on motor(s).
NOTE: Pressurized Freshwater Models; connect
remaining wire from water solenoid valve to
battery negative or power source ground buss.

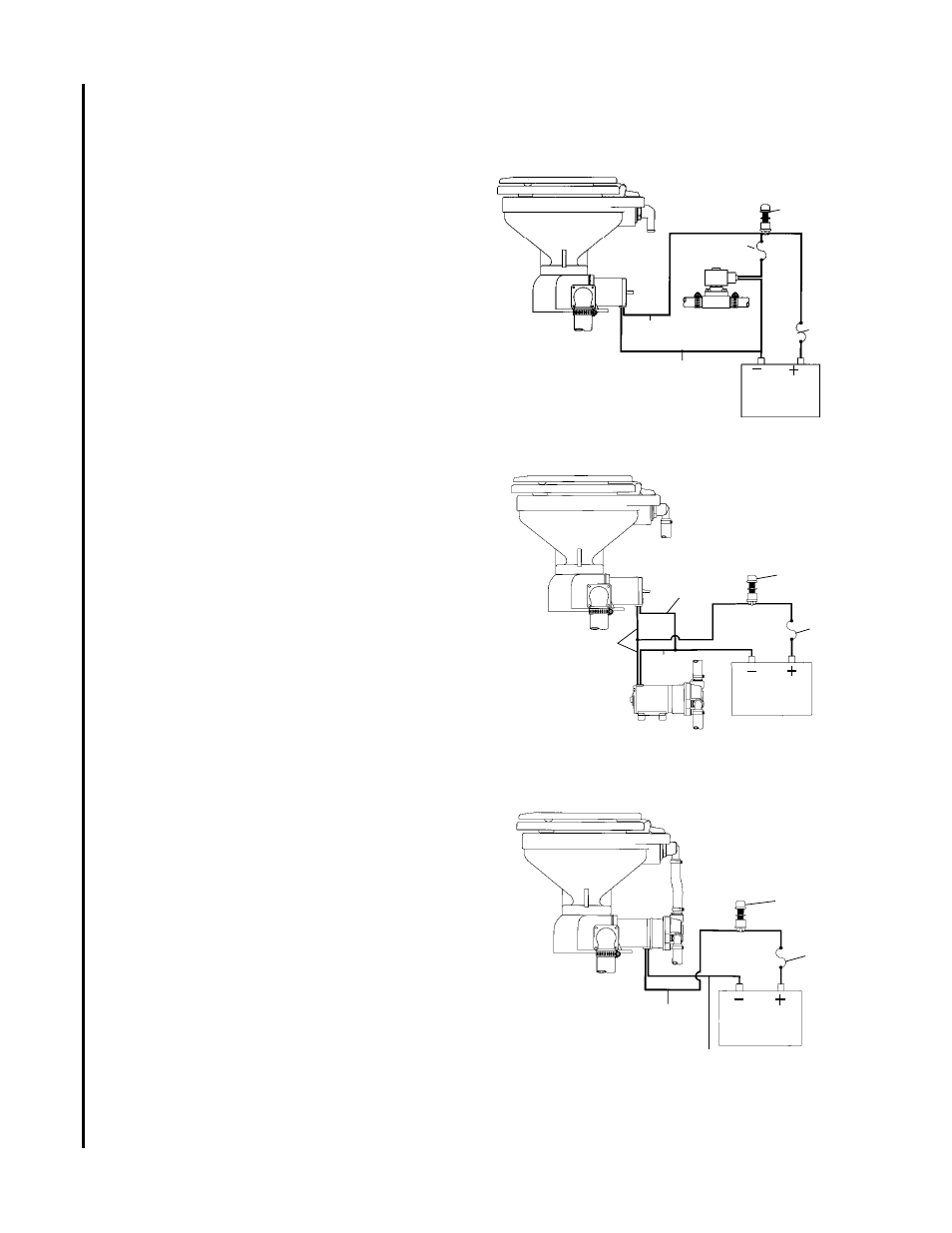

WIRING
12
Orange
POS (+)
Fuse or
Circuit
Breaker
Push Button
Switch
Black
NEG (-)
Fuse or
Circuit
Breaker Orange
POS (+)
Black
NEG (-)
POS NEG
POS NEG
Integral Pump Wiring
Remote Pump Wiring
Push Button
Switch
Fuse or
Circuit
Breaker
Orange
POS (+)
POS NEG
Pressurized Freshwater Wiring
Push Button
Switch
Black
NEG (-)
Black
NEG (-)
Solenoid
Valve
3 Amp
Fuse
