Pressurized Freshwater Models

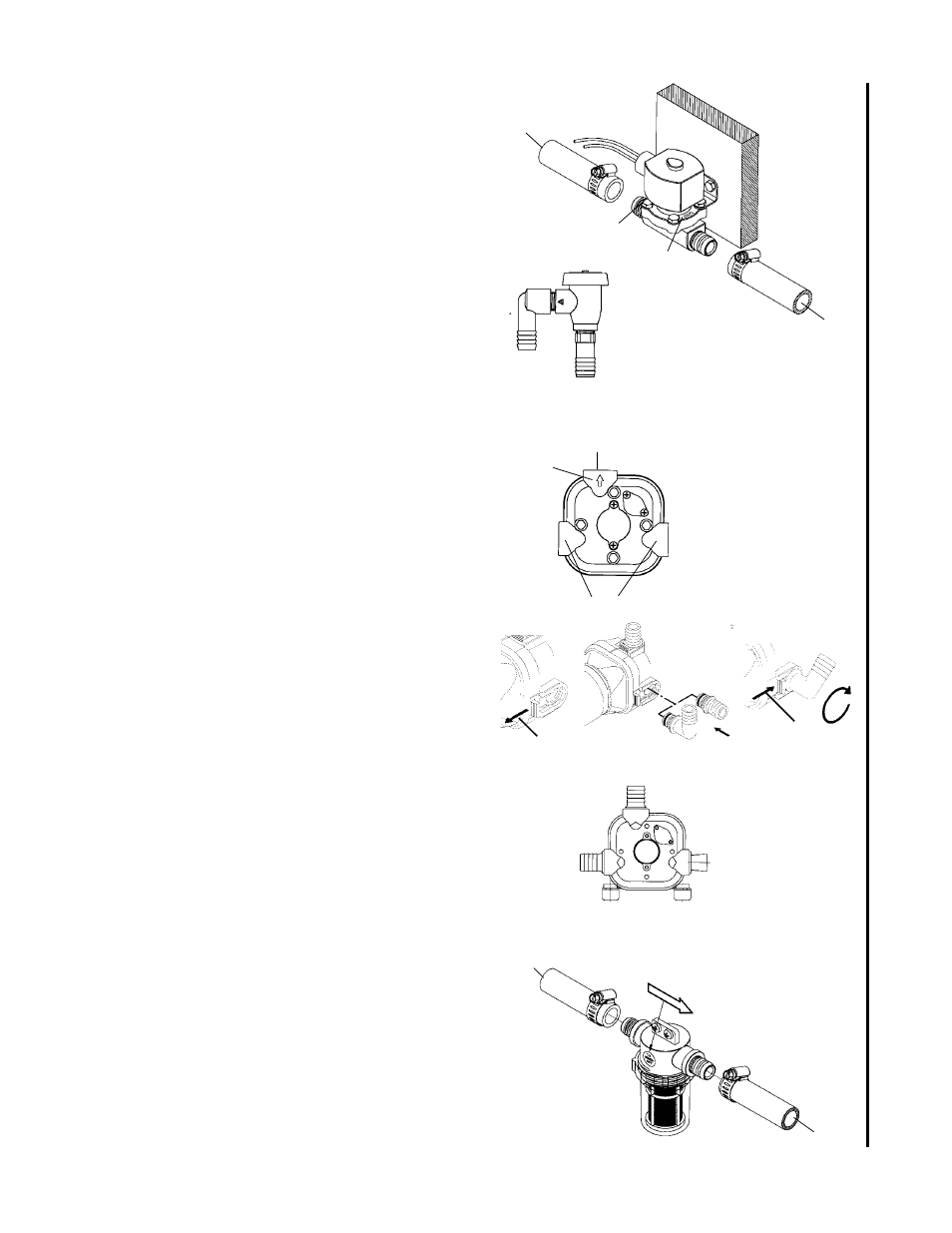

Install a shut off valve in intake line before water
solenoid valve.
1. Connect hose from shut off valve to inlet port
of water solenoid valve.
NOTE: To avoid malfunction of water solenoid due
to debris in water, installation of Freshwater
Strainer (190601) is recommended.
2. Connect hose from outlet port of water solenoid
valve to inlet port of vacuum breaker.
3. Connect hose from outlet port of vacuum breaker
to bowl elbow.
NOTE: Vacuum breaker must be last mechanical
component before bowl elbow.
Sea Water Models
Intake pump fittings are interchangeable to allow
more flexibility during installation. Inlet ports are
located on either side of intake pump. Outlet port
(to toilet bowl) is at top of intake pump.
1. Slide fitting clips to open position.
2. Select inlet port to be used.
3. Install appropriate fittings into inlet and outlet
ports.
NOTE: The 90° fitting can be rotated 360°.
4. Install the plug fitting into unused inlet port.
IMPORTANT: Be sure not to install plug fitting
into outlet port! Damage will occur!
5. Slide fitting clips back to closed position.
6. Connect hose from seacock to inlet port of
In-Line Strainer. Use hose clamp provided.
7. Connect hose from outlet port of In-Line
Strainer to inlet port of intake pump. Use hose
clamp provided.
IMPORTANT: Double clamp all below
waterline hose connections!
8. Remote Pump Models Only: Connect hose
from outlet port of intake pump to bowl elbow
located on back of toilet bowl. (Integral pump
model is already connected).
