REMOVING AND REINSTALLING BOTTOM PLATE
CAUTION: Disconnect the vacuum cleaner from the electrical outlet
before removing bottom plate.
1. Depress handle release pedal and move vacuum cleaner to
low position.
2. Turn vacuum cleaner over, exposing the underside [Fig. 15].
3. Slide locking latch to the right [Fig. 16].
4. Press tabs inward on each side [Fig. 17] and pull bottom plate
off.
5. Reinstall by placing lower edge of bottom plate along lower
edge of nozzle [Fig. 18]. Snap plate into place. Slide locking
latch to left to secure.
REPLACING HEADLIGHT BULB
CAUTION: Disconnect the vacuum cleaner from the electrical outlet
before replacing bulb.
1. Remove bottom plate (See “Removing and Reinstalling
Bottom Plate”).
2. Remove the headlight bracket by pulling upward on bracket
[Fig. 19]. To remove the light bulb, pull straight out of socket.
To install new bulb, simply push bulb straight into socket for
a secure fit. Reinsert bracket back into nozzle.
3. Re-install bottom plate (See "Removing and Reinstalling
Bottom Plate").

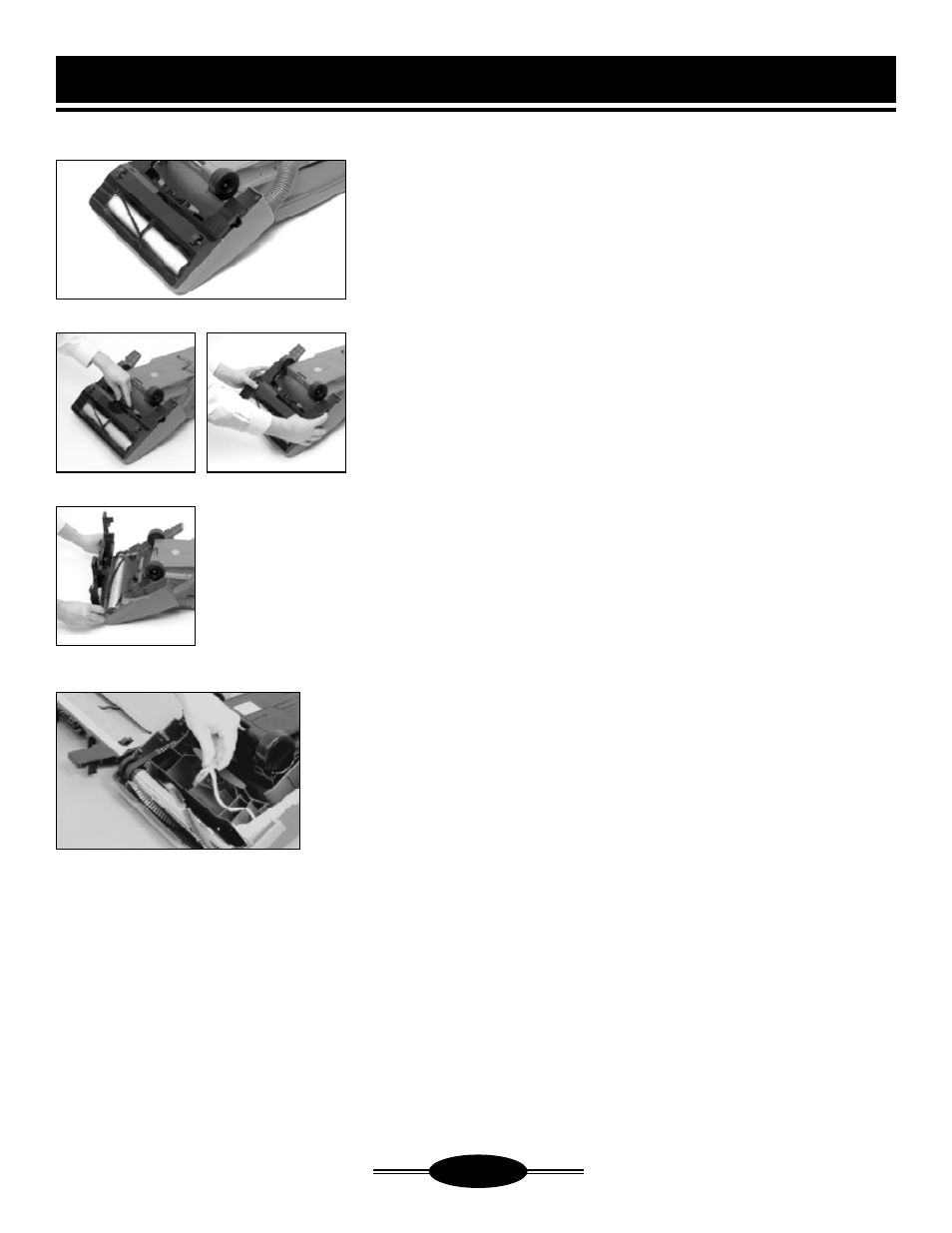

Fig. 15
Fig. 16 Fig. 17
Fig. 18
Fig. 19
