ATTACHING THE HANDLE
The vacuum cleaner and the handle are packed separately.
1. After first removing the handle screw [Fig. 1], position the
handle behind the vacuum cleaner and level with the top of
the unit. Hold the power cord down and away from the vacuum
while the handle is being attached [Fig. 2]. Make sure that the
switch on the handle is positioned toward the front of the
vacuum cleaner.
2. On the bottom of the handle are two “T-shaped” rails that slide
forward onto two guides located on the top of the vacuum
cleaner. Line up the handle so that the “T” rails will slide into
the guides and push the handle forward [Fig. 3].
3. Insert the handle screw and tighten securely.
4. Attach the power cord at the clip located on the upper cord
hook [Fig. 4].
5. Turn the upper cord storage hook to the upright position and
wind the power cord around the cord storage hooks when
storing the vacuum cleaner.
ON/OFF SWITCH
1. To start the vacuum cleaner, flip the ON/OFF switch (located
on the grip on Models 200, 300, and 300C or on the side of dust
compartment on Model 100) to the ON position as indicated
by “|” on the switch [Figs. 5 and 6].
2. To stop the vacuum cleaner, flip the ON/OFF switch to the
OFF position as indicated by “t” on the switch.
3. Turn the vacuum cleaner off before unplugging from electrical
outlet.
a
SSembly and
o
Peration

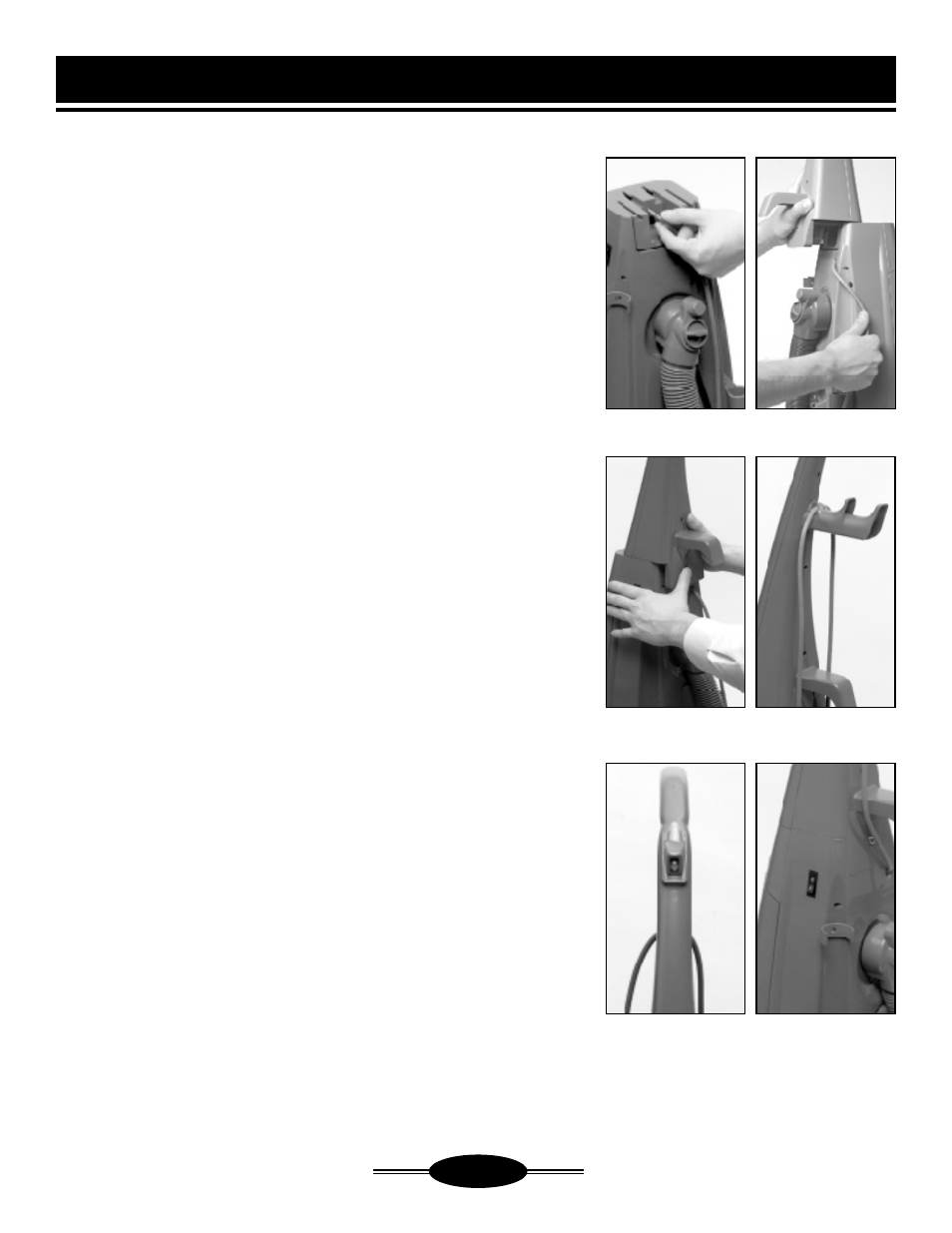

Fig. 1 Fig. 2
Fig. 3 Fig. 4
Fig. 5 Fig. 6
