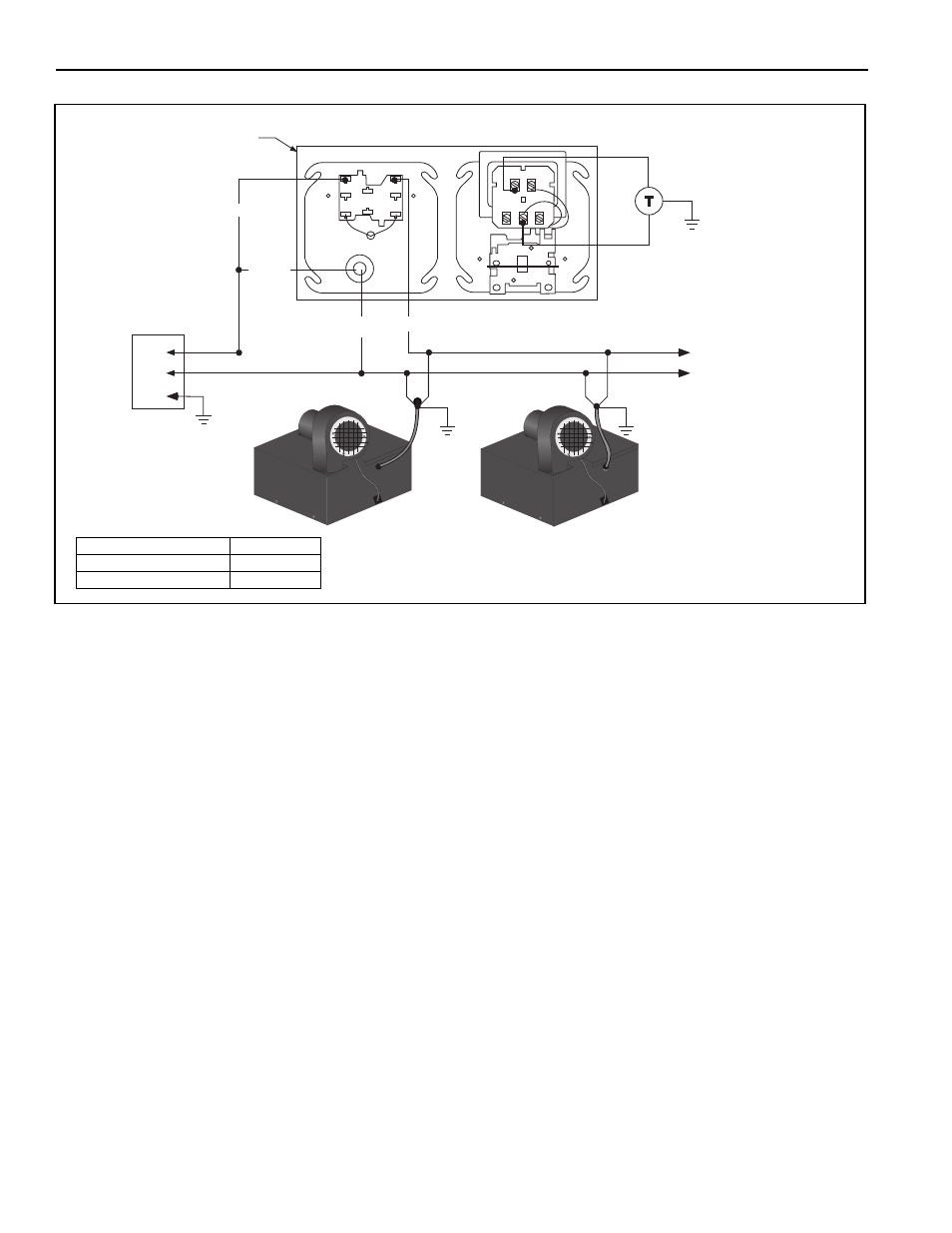

10.2 Low Voltage Thermostat Wiring
R C
W G Y
1
2
3
4
5
6
COIL
L1
L2
Gnd.
N H
Gnd.
N H
Gnd.
Additional
Burners
120 V-60 Hz
Supply Circuit
Low Voltage Thermostat
Burner 1 Burner 2
Maximum 8 Burners
Per Relay
Black
SPST Transformer Relay
Black
Red White
COIL
FRONT VIEW BACK VIEW
Description Part Number
SPST Transformer Relay 90417600K
Low Voltage Thermostat 90425100
