(3/4)

5. Connection Procedure to the user system


Connect the emulation probe to the connector on the upper panel of the M37549T-RLSS. Connect the M37549T-RLSS to the 42-pin

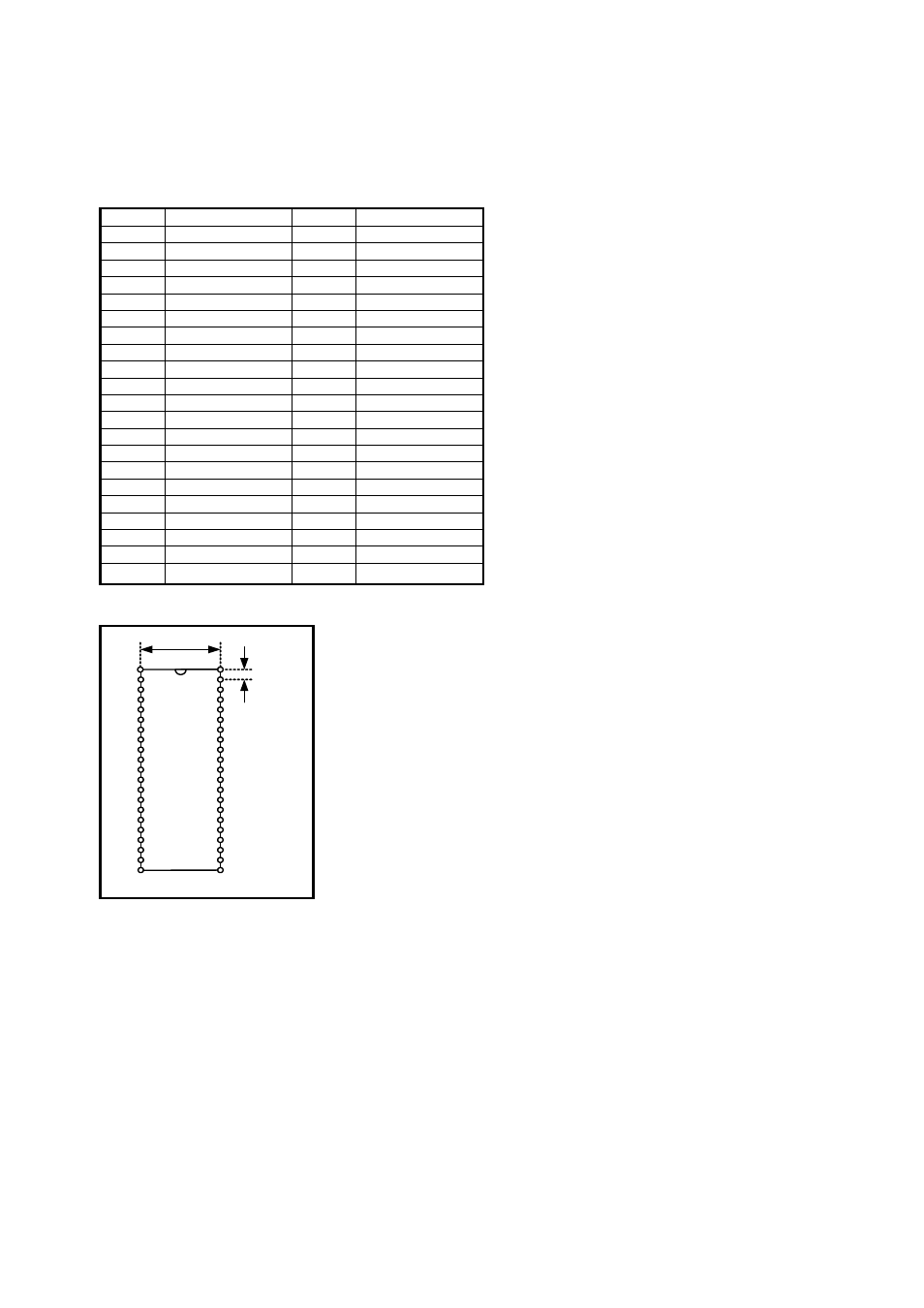

SDIP socket on the user system. Table 2 shows pin allocation of the M37549T-RLSS, and Figure 2 shows connector dimensions.

Table 2 CN1 connector pin allocation

Pin No

Signal

Pin No

Signal

1 N.C

42

N.C

2 N.C

41

N.C

3 N.C

40

P13/AN3/KEY3

4 P14/AN4/KEY4

39

P12/AN2/CMP2

5 P15/AN5/KEY5

38

P11/AN1/CMP1

6 RESET

37

P10/AN0/CMP0

7 P16/AN6/KEY6

36

P31

8 P17/AN7/KEY7

35

P30

9 N.C

34

Reserved

10 N.C

33 Reserved

11 N.C

32 Reserved

12 P20/Xout/Xcout

31 Reserved

13 Vss

30 P07(LED7)/Srdy

14 P21/Xin/Xcin 29 P06(LED6)/Sclk
15 Vcc

28 P05(LED5)/TxD

16 CNVss

27 P04(LED4)/RxD

17 P00(LED0)/INT0

26 P03(LED3)/CAP0

18 P01(LED1)/INT1

25 P02(LED2)

19 N.C

24 N.C

20 N.C

23 N.C

21 Vss

22 N.C

* Do not connect signal to Reserved parts.

1

42

21

22

15. 24

1 . 778

Figure 2 CN connector dimensions
