1. Outline


The M37549T-RLSS is an emulator MCU board for the 7548/7549 Group.

2. Package Components


(1) M37549T-RLSS

1 pc.

(2) M37549T-RLSS User's Manual (This manual)

1 pc.

(3) M37549T-RLSS User's Manual (Japanese)

1 pc.


3. Specifications


Table 1 Specifications

Emulator M38000T2-CPE

*

Operating mode

Single-chip mode

Maximum operating

frequency

Vcc = 4.5 to 5.0 V: 8.0 MHz (frequency/2 mode)
Vcc = 2.4 to 5.0 V: 2.0 MHz (frequency/2 mode)
Vcc = 2.2 to 5.0 V: 1.0 MHz (frequency/2 mode)
Vcc = 4.0 to 5.0 V: 8.0 MHz (High-speed mode)
Vcc = 2.4 to 5.0 V: 4.0 MHz (High-speed mode)
Vcc = 1.8 to 5.0 V: 1.0 MHz (High-speed mode)

Operating power

voltage

1.8 to 5.5 V

* A combination of the PC4701 and M38000TL2-FPD is not supported.

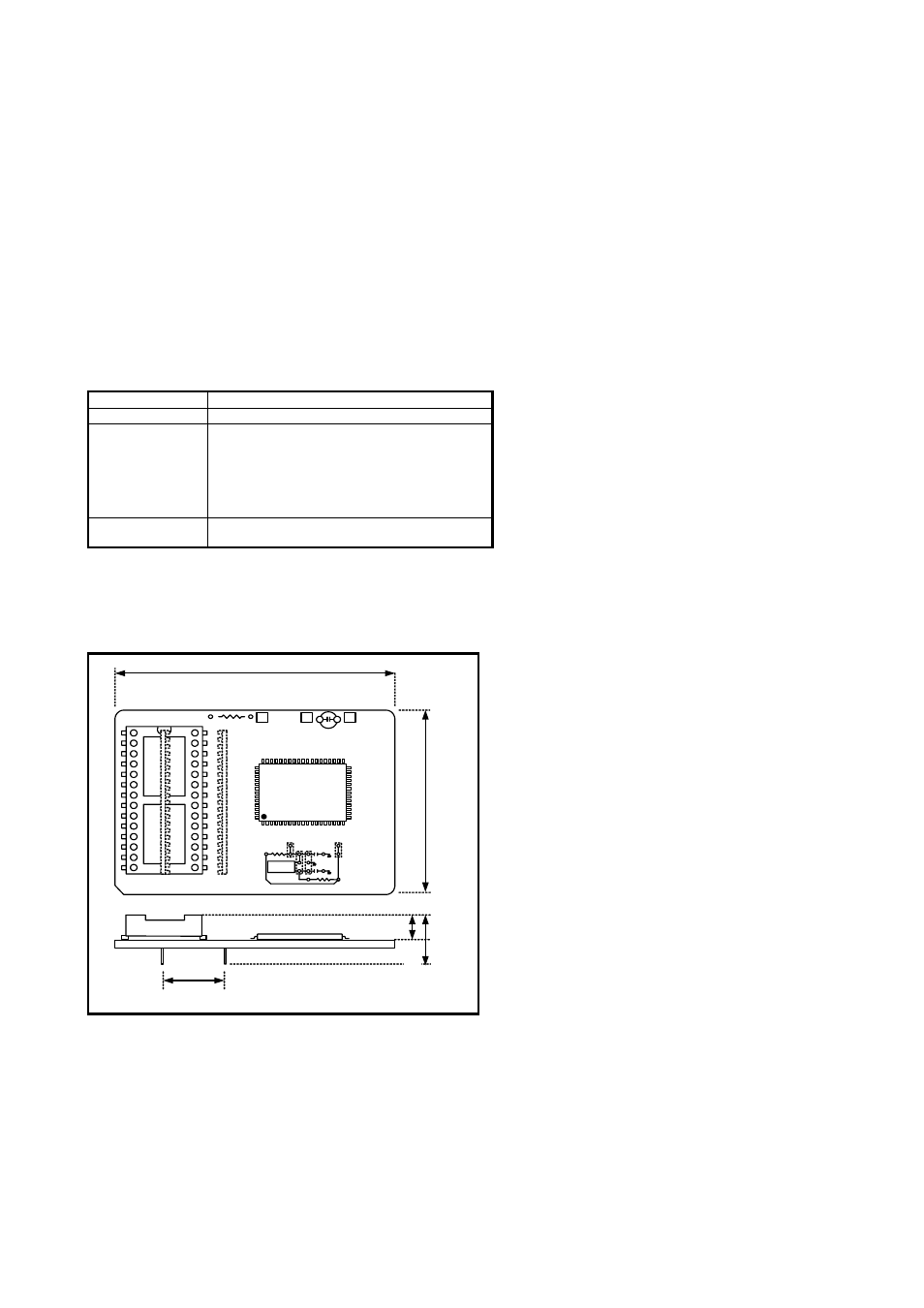

4. External Dimensions


VCC

GND

RESET

+

64.0

45

.0

R1

4

.2

11

.0

15 . 24

Figure 1 External dimensions

(2/4)
